SIP CSW25P Pneumatic Column Spot Welder - Code 25113

Authorised Distributor

Available (Next Working Day Delivery (if ordered by 2pm))

Order now for delivery on
Wed 1st May 2024

Quote Ref: @112605

Product ID: sip_25113

Barcode: 5012713251131

Related Products: See all related products

Manufacturer: SIP Industrial

Warranty: Click here for info

Price: (£3,319.99 ex VAT) £3,983.99 (inc VAT)

Available at checkout!

Categories Products

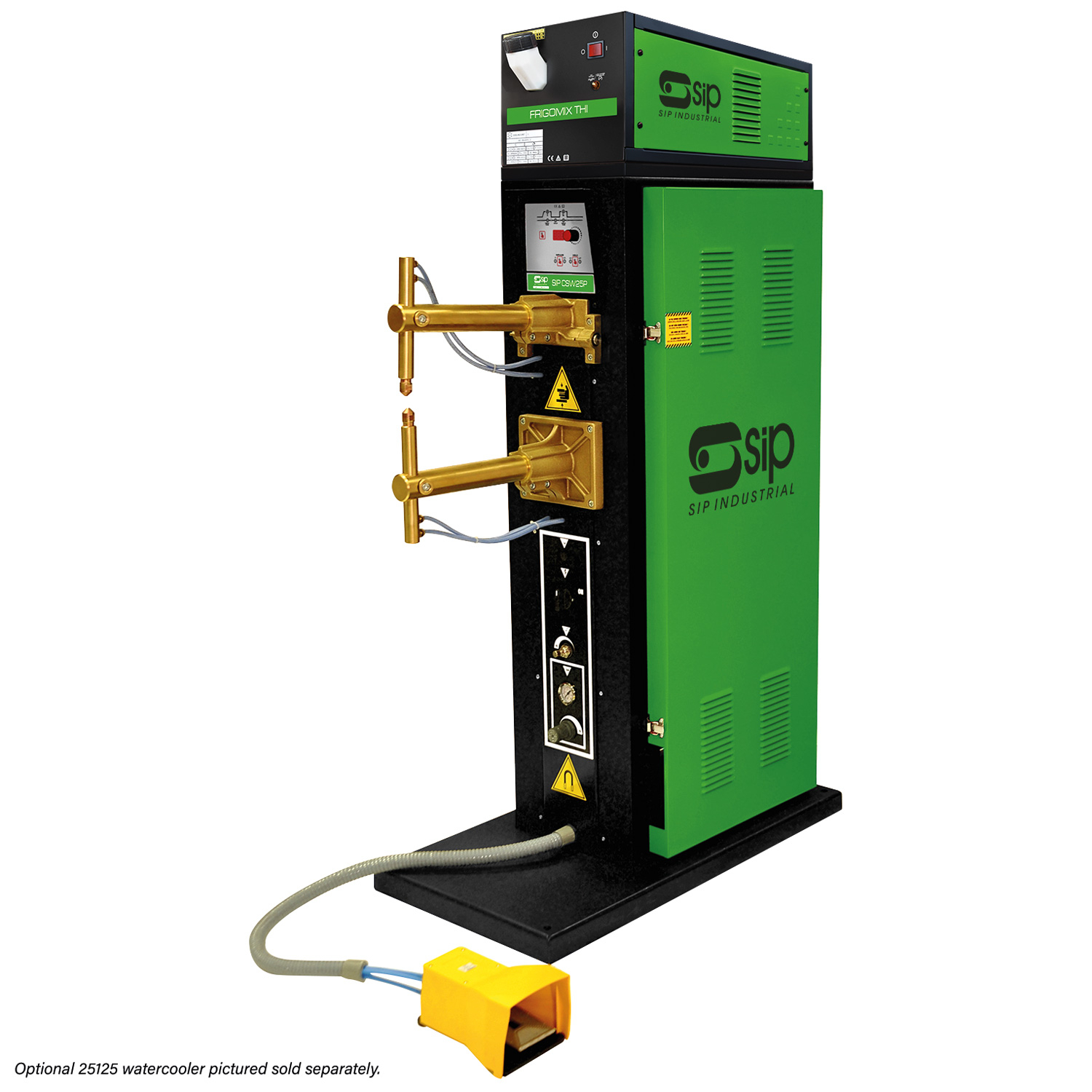

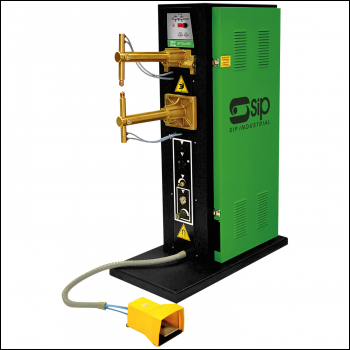

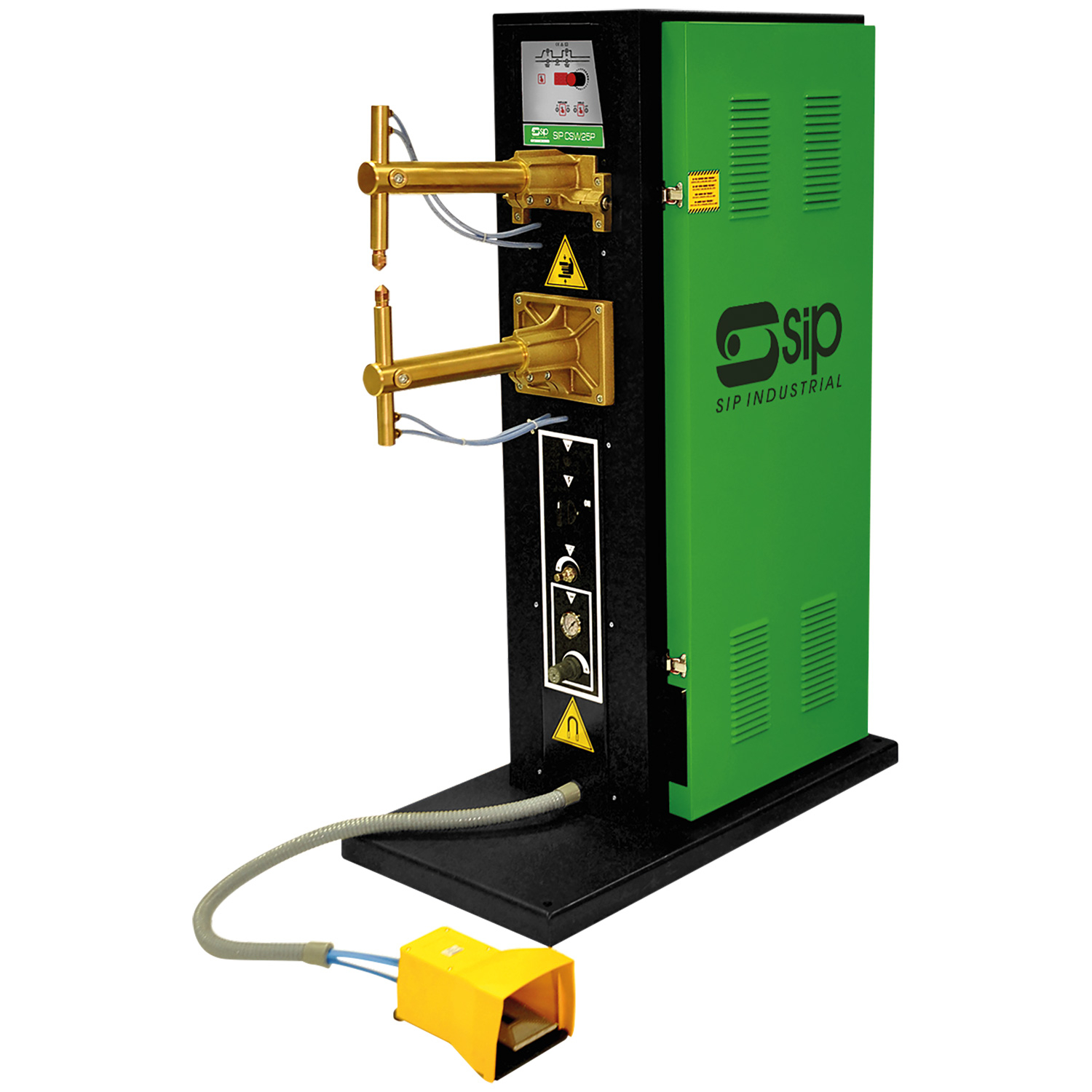

SIP CSW25P Pneumatic Column Spot Welder - Code 25113

The SIP CSW25P Pneumatic Column Spot Welder offers easy spot welding in a variety of demanding applications, utilising single or double spot welding modes for use on oxidised or coated steels, and a 2-stage pneumatic foot pedal for precise positioning.

Browse for more high-quality welding machines and accessories.

50kVA max. / 25kVA @ 50% welding output 340mm to 480mm standard welding arm length 5+5mm (mild steel plate) / 20+20mm (bar) weld capacity Single or double spot welding modes perfect for oxidised or coated steels Adjustable air regulator with dampener; controls air pressure and descent speed Digital display for monitoring and controlling welding current and welding time 2-stage pneumatic foot pedal; precise work positioning and easy operation Fitted with high-quality watercooling hoses Manufactured in the EU

Technical Information

ITEM NO.	25113
Input Supply:	400v (50A) 1-PHASE
Max. Welding Power:	50kVA
Duty Cycle:	25kVA @ 50%
Mild Steel Capacity:	5+5mm (flat) / 20+20mm (bar)
Stainless Steel Capacity:	3+3mm (flat) / 12+12mm (bar)
No-Load Voltage:	1.4v
Short Circuit Current:	13.8KA
Max. Air Pressure:	70psi (4.8bar)
Water Flow Rate:	4ltr/min
Max. Electrode Force:	204kgF @ 340mm 140kgF @ 450mm
Distance Between Arms:	200mm (standard) 320mm (optional)
Arm Length:	340mm to 480mm (standard) 200mm to 1000mm (optional)
Electrode Throat Size:	100mm
Electrode Holder Diameter:	Ø 25mm
Electrode Diameter:	Ø 20mm
Arm Diameter:	Ø 45mm
Noise Level:	70dB(A)
Net Weight:
Gross Weight:	178.00kg
Product Dimensions:
Packaged Dimensions:	1450(H) x 520(W) x 1070mm(D)

Brand: SIP Industrial

Identifier: 25113
