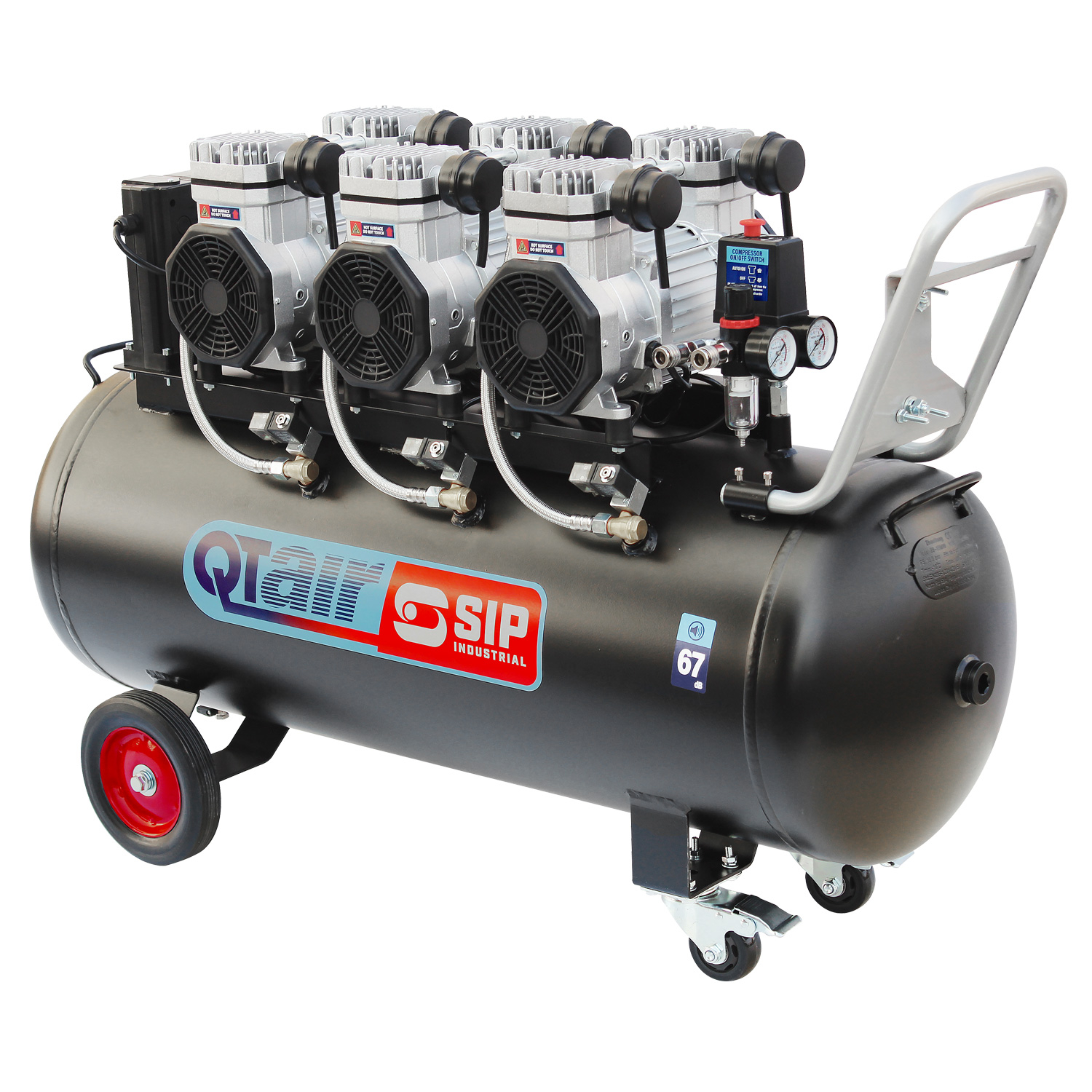

SIP QT AIR DD 4.5hp 150ltr Ultra Low Noise Compressor & Hose Reel Package - Code 05497AHR15

The SIP QT AIR DD 4.5hp 150ltr Ultra Low Noise Oil-Free Direct Drive Compressor is a powerful and innovative ultra low noise compressor which features slow-running 4-pole motor pump units for up to 50% longer working life compared to standard SIP 2-pole motor air compressors.

Built to support demanding applications requiring higher air volume in automotive settings and large workshops, this oil-free direct drive compressor delivers 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single-phase supply. Operating at an ultra low 67dB, it's perfect for work areas where noise level is a consideration.

A wheel-mounted design with swivel front castors and U-handle allows for full movement in a variety of work area settings for added flexibility. The supplied U-handle also includes a bracket for mounting the supplied SIP Air Hose Reel R15 (07977) for added versatility.

Applications & uses: Designed for automotive settings and large workshops. Ideal for spraying applications, pneumatic car lifts, tyre changers and plasma cutters. Suitable for sanding and grinding applications.

What's in the box?: 1x SIP QT AIR DD 4.5hp 150ltr Ultra Low Noise Oil-Free Direct Drive Compressor, wheel kit (2x solid wheels and 2x castors), pull handle with air hose mounting bracket and fixings, 3mtr mains cable with 230v/16A plug, 1x SIP Air Hose Reel R15.

SIP 2-Year Standard Silver Warranty* |

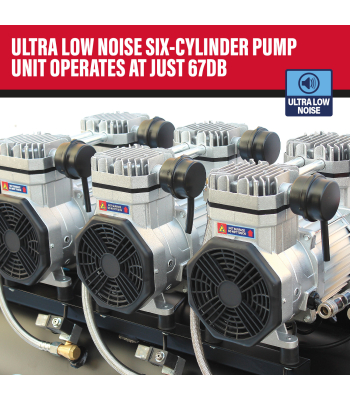

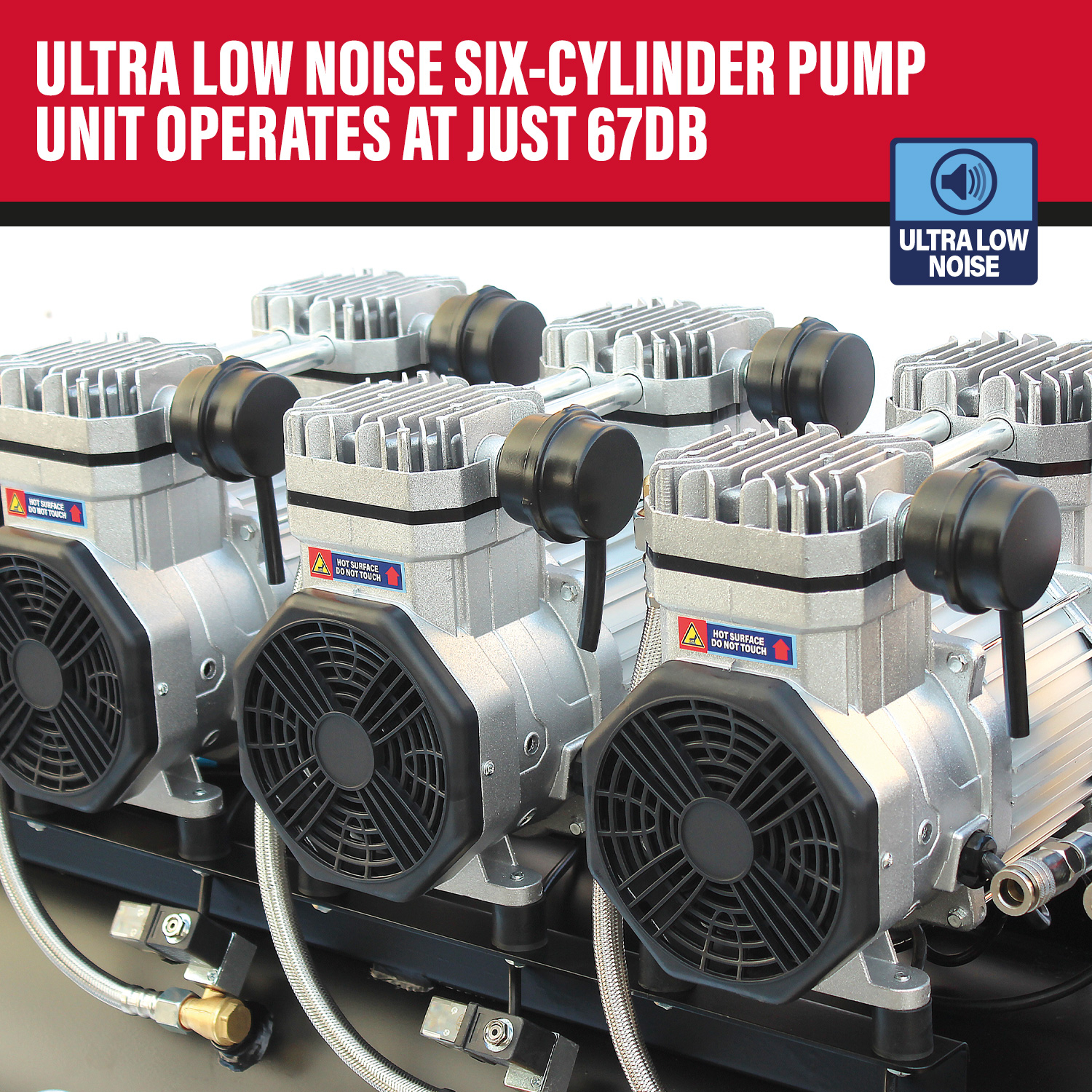

LARGE SIX-CYLINDER MOTOR PUMP UNIT WITH SLOW-RUNNING 4-POLE MOTORS ACHIEVE ULTRA LOW NOISE LEVELS & SUPPORT HIGHER AIR VOLUME APPLICATIONS & OIL-FREE FOR LOW MAINTENANCE USE

• Ideal for spraying applications, pneumatic car lifts and tyre changers. Suitable for sanding and grinding applications and perfect for use with spot welders and plasma cutters.
• Slow-running 4-pole motors operate at lower speeds for longer life performance (4.5hp/3.3kW) compared to standard SIP 2-pole motor air compressors. Delivers high 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single-phase supply.
• Large motor fans improve cooling to maintain pump temperature and output performance.

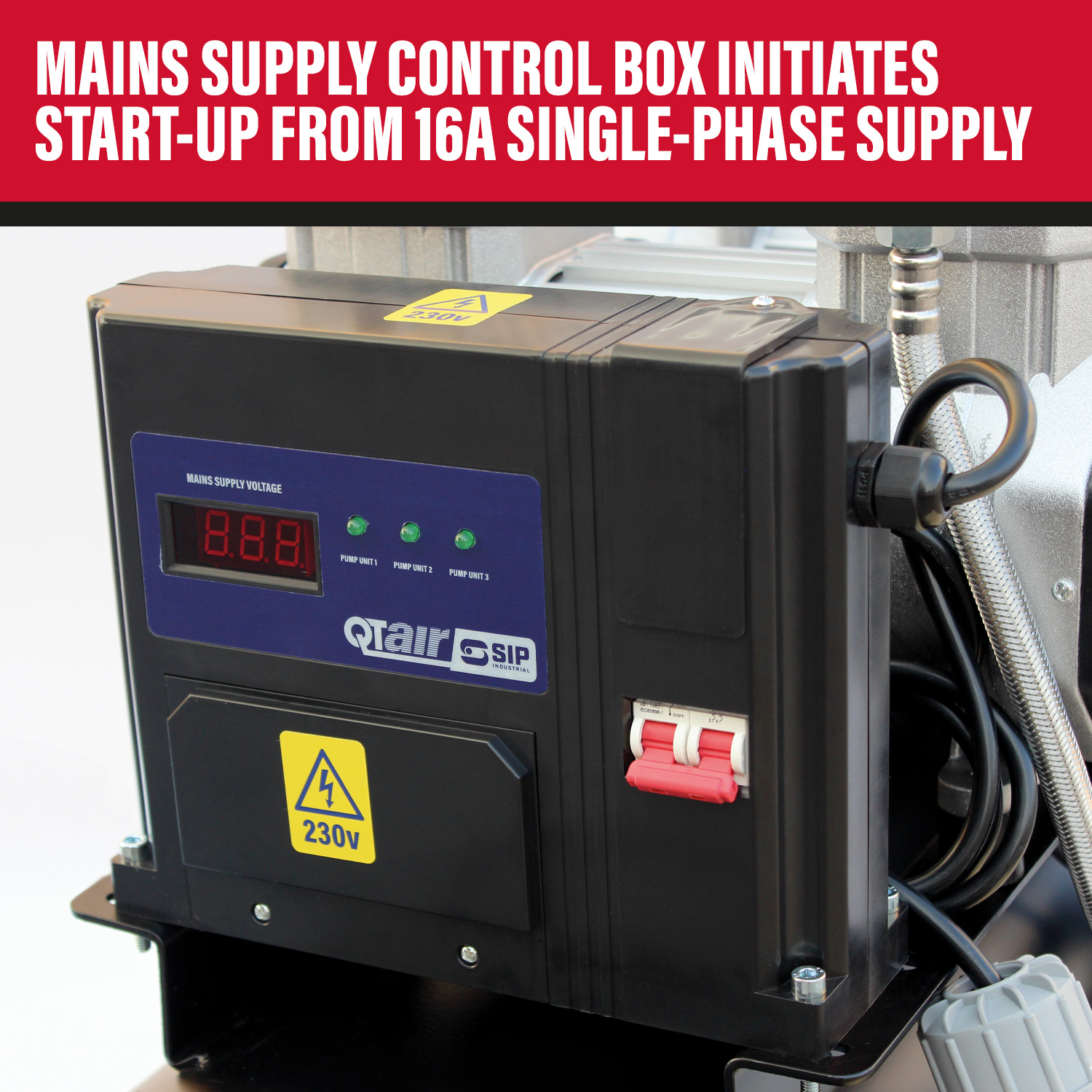

• A mains supply control box with input voltage display initiates individual motor pump unit start-up at 3sec intervals. This eliminates inrush current, alleviating any start-up motor stress and premature motor wear and tear.
• Also features an electronic auto bleed system for resistance-free start-up. This releases residual delivery pipe pressure before every filling cycle, which ensures each motor reaches it's full operating speed without any additional mechanical stress.
• Fitted with 3mtr mains cable for greater work area flexibility and a 230v/16A plug.
• Operates at an ultra low 67dB for lower noise levels compared to older SIP compressor technology. Ideal for work areas where noise level is a consideration.
• Oil-free operation for low maintenance use and reduced operating costs. This prevents oil carry-through to air tools and equipment, maximising longevity.

150LTR RECEIVER TANK SAFELY STORES COMPRESSED AIR READY FOR AIR TOOLS & INFLATION TASKS

• Maintains a consistent air supply of up to 8bar pressure.

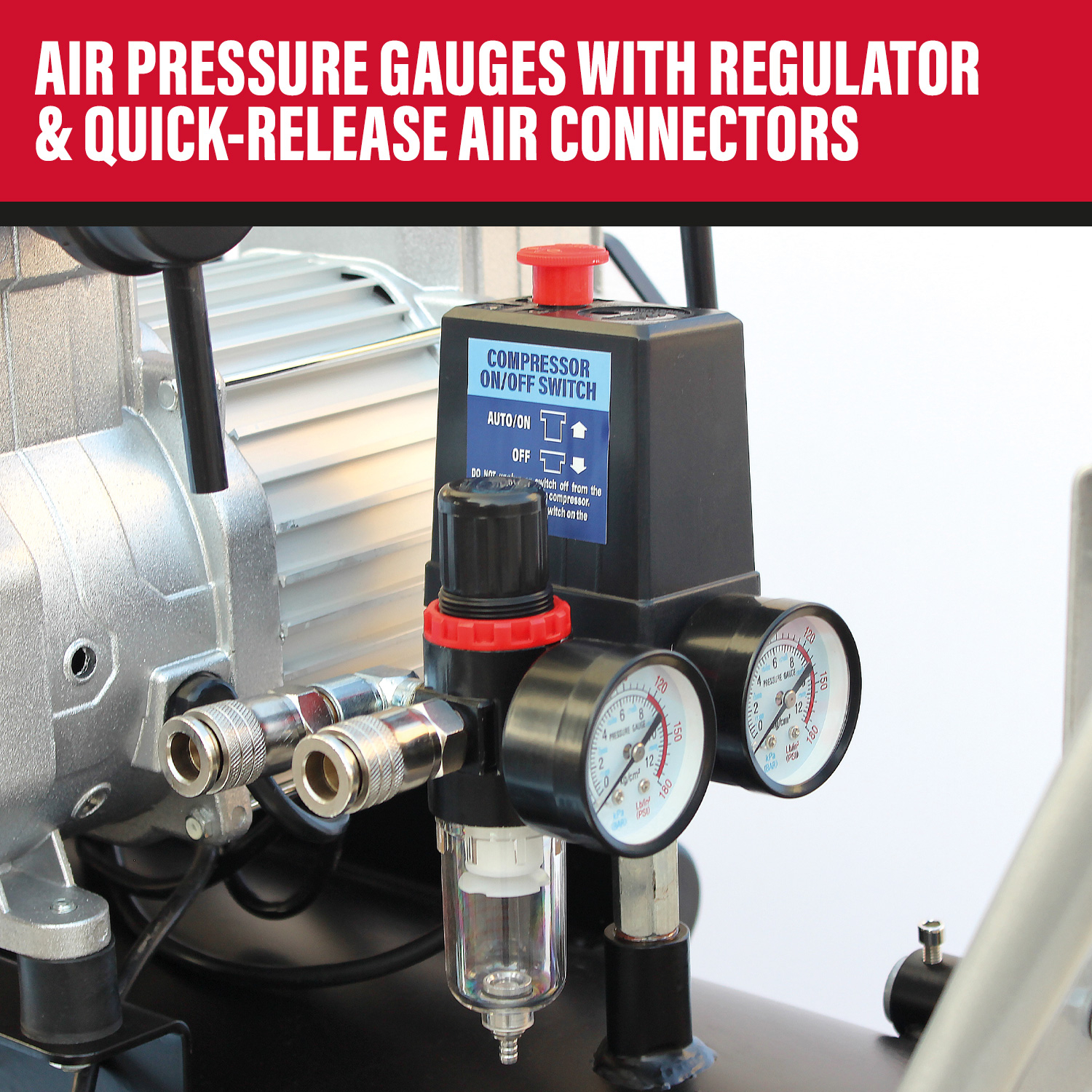

TANK & WORKING PRESSURE GAUGES WITH REGULATOR OPTIMISE AIR DELIVERY

• Provides an accurate display of current pressures for enhanced user operation.

TWIN QUICK-RELEASE AIR CONNECTORS FOR GREATER APPLICATION VERSATILITY

• The adjustable regulator (0-8bar) optimises air requirements to both quick-release connectors.
• Also fitted with a quick-release air receiver condensate drain valve.

SOLID WHEEL KIT WITH FRONT SWIVEL CASTORS & U-HANDLE FOR OUTSTANDING MOBILITY AROUND THE WORK AREA

• Allows full movement in a variety of work area settings for added flexibility.
• Supplied U-handle includes bracket and fixings for mounting the supplied SIP Hose Reel R15 (07977).

Technical Information
