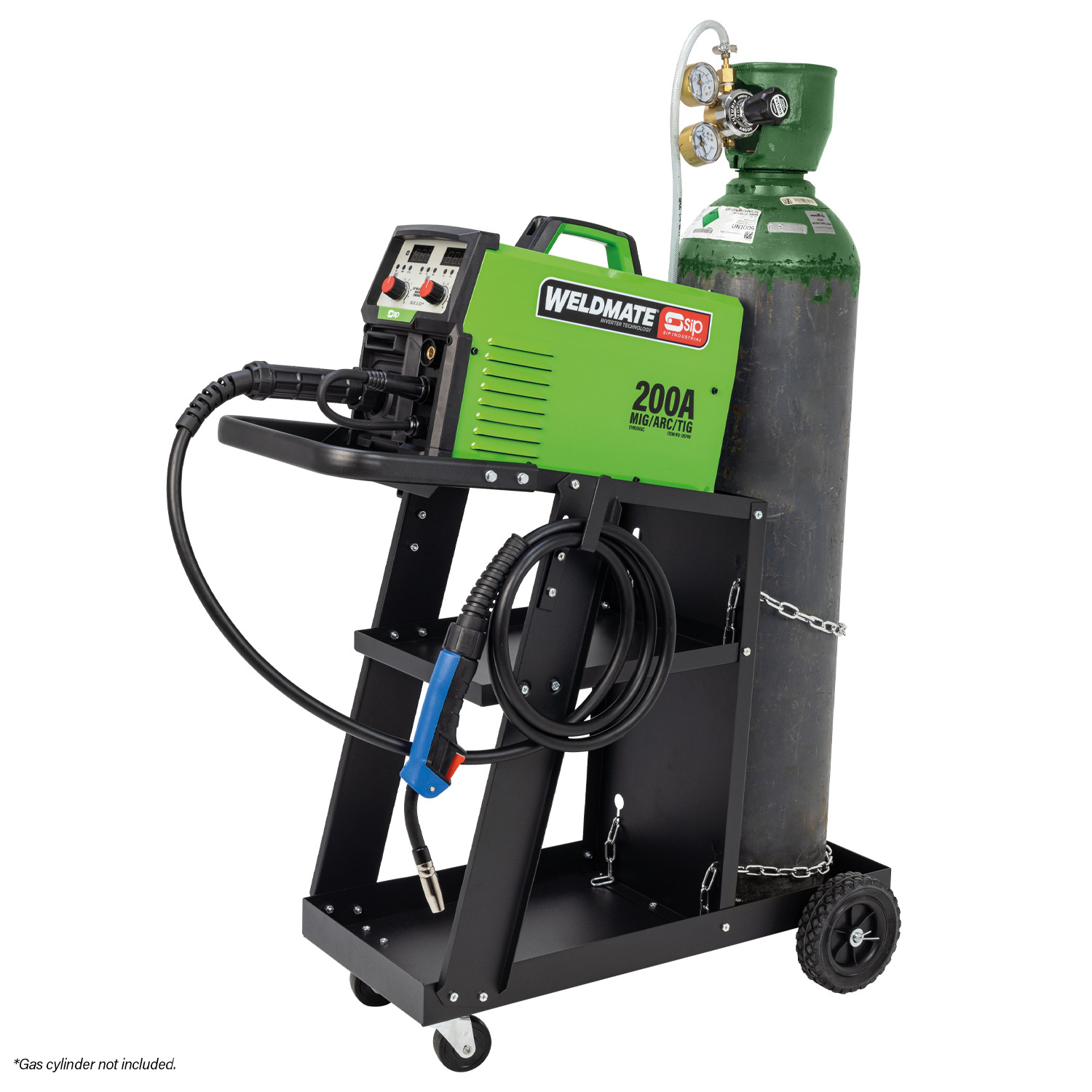

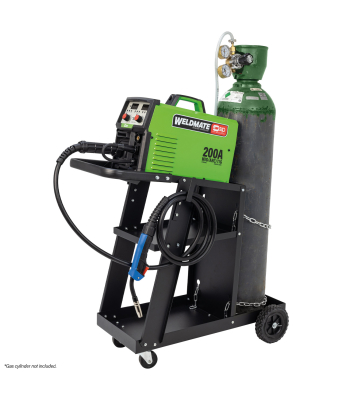

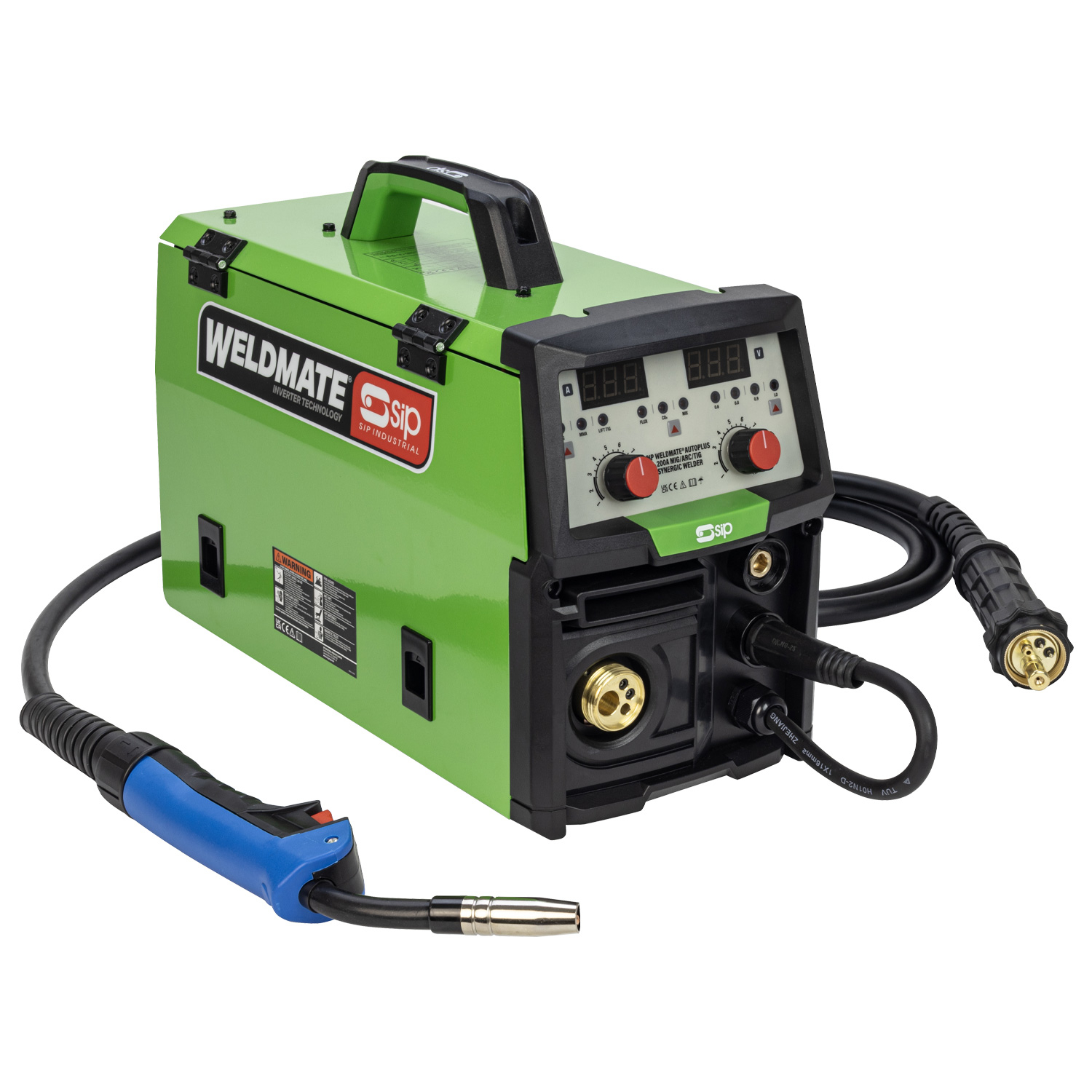

The SIP WELDMATE® AUTOPLUS 200A MIG/ARC/TIG Synergic Welder with Cart is a multi-process inverter welder specifically designed for use in automotive and garage environments.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.
This package is complete with the 05714 SIP 3-Tier Welding Cart, which is suitable for gas cylinders up to 50kg.
Applications & uses: Ideal for use in automotive and garage environments. Perfect for sheet metal applications. Suitable for MIG/ARC/TIG welding, and performs gasless MIG welding. Ideal for mild steels and welds *stainless steel and **aluminium.
*Using stainless steel welding wire. **Using aluminium welding wire and pure Argon gas.
SIP 2-Year Standard Silver Warranty |
Multi-process MIG/ARC/TIG welder for greater flexibility at high duty cycles Duty cycle @ 40°C: 200A @ 15% (MIG/ARC/TIG).
Pure Synergic Control allows users to adjust welding voltage and wire speed autonomously This easy-to-set function simplifies the welding process at all skill levels, helping to achieve more consistent and higher quality welds.
Heavy-duty aluminium wire feeder ensures smooth and consistent flow of wire to MIG torch This easy-to-use device includes tension adjustment to maintain optimal performance
Supplied with interchangeable feed rollers for solid and flux-cored wires.
Compatible with 0.7kg and 5kg welding wire spools.

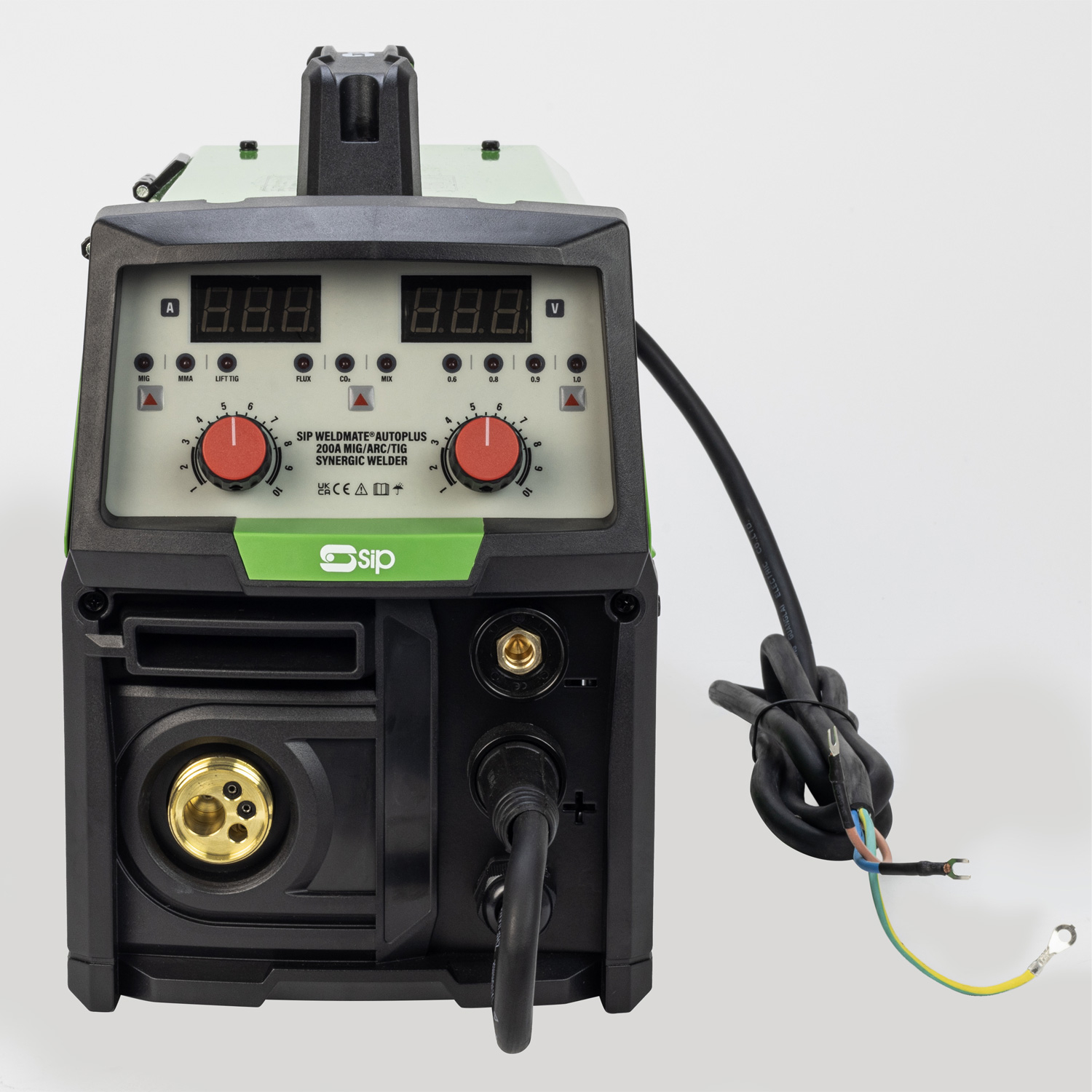

Intuitive control panel to select between welding process, gas type and wire size Infinitely variable dials offer a smoother stepless output adjustment for higher quality and easily controlled welding.
Twin LEDs display welding output and synergic control metrics.
Metal casing with heavy-duty carry handle for long life use High-quality finish is resistant to work area damage and aids mobility.
Compact and portable design for mobility around the work area The compact unit is easy to move between locations using the fitted carry handle.
Accessories included Supplied with integrated 3mtr Euro MIG torch, electrode lead, earth lead, gas hose with camps, contact tips, feed rollers and chipping hammer/brush.
Complete with 05714 SIP 3-Tier Welding Cart Accompanied by compatible 05714 Cart suitable for holding gas cylinders up to 50kg.
| ITEM NO. | 05740CART | ||
| Input Supply: | 230v (16A) | ||
| Welding Process: | MIG | ARC | TIG |
| Output Voltage: | 16.5v - 24v | 20.8v - 28v | 10.8v - 18v |
| Output Current: | 50A - 200A | 20A - 200A | 20A - 200A |
| Duty Cycle @ 40°C: | 200A @ 15% | 200A @ 15% | 200A @ 15% |
| Wire Diameter: | ⌀ 0.8mm - 0.9mm | ||
| Wire Spool Size: | 0.7kg, 5kg | ||
| Welding Material Thickness: | 0.8mm - 6.4mm (mild steel) | ||
| Protection / Insulation | 21S / H | ||
| Net Weight: | 25.20kg | ||
| Gross Weight: | 28.50kg | ||
| Product Dimensions: | 1058(H) x 570(W) x 1248mm(D) | ||
| Packaged Dimensions: | 470(H) x 650(W) x 1195mm(D) | ||
Brand: SIP Industrial
Identifier: 05740CART
5/5
Great product from SIP at a competitive price from Sitebox. Ideal for MIG welding my rusty van with 18 SWG sheet metal using dia 0.6 mm wire. I had to supply and wire-up a straight compact 16amp IP44 industrial electrical plug to the bare ends of the power cable before I switched on. The user manual covers a lot of Health & Safety precautions and warnings, and explains the machine set-ups for MIG, TIG and stick welding, but it doesn't tell you how to make good welds - enroll on a basic welding course at your local Technical Education College to learn this if you are not so skilled. SIP 'Synergic' feature provides a simple automatic set-up for the optimum current and wire feed speed to get you started making proper welds, with the option to make easy changes to suit the welding task by adjusting the amperage and wire speed dials - clearly shown on the red LCD displays. My first thought was the welding torch supplied seemed a bit Fischer Price, but I've changed my opinion because this smaller torch can reach into some of the many tight areas I've had to spot and skip weld. Bonus; my local EngWeld supplier stocks all the spares, wire and gas for this SIP product. Very happy with the MIG performance of this compact machine. The DIY assembly wheeled cart option bundled with this welder is great value too. It easily carries an Albee 13.4kg argon mix bottle on the back, my welding accessories on the two lower shelves, the torch and earth leads coiled-up neatly on the side storage hooks and the welding unit on the top shelf. When not in use I store the cart in my leaky garage and cover it with a wheelie bin-bag to keep off the dust and damp. It's always ready for service - should've bought one of these gems years ago. Thank you SIP & Sitebox.
