Spectra HR1220 Line Laser Receiver

Available (Next Working Day Delivery (if ordered by 3pm))

Order now for delivery on
Wed 6th May 2026

Quote Ref: @98246

Product ID: HR1220

Manufacturer: Spectra

Price: (£124.99 ex VAT) £149.99 (inc VAT)

Available at checkout!

23 people have bought this item!

Categories Products

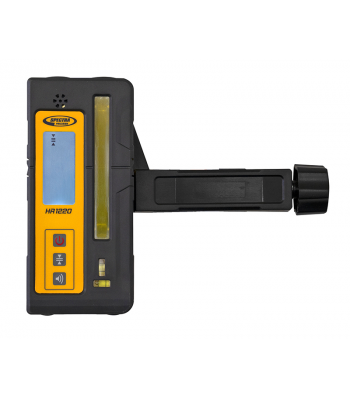

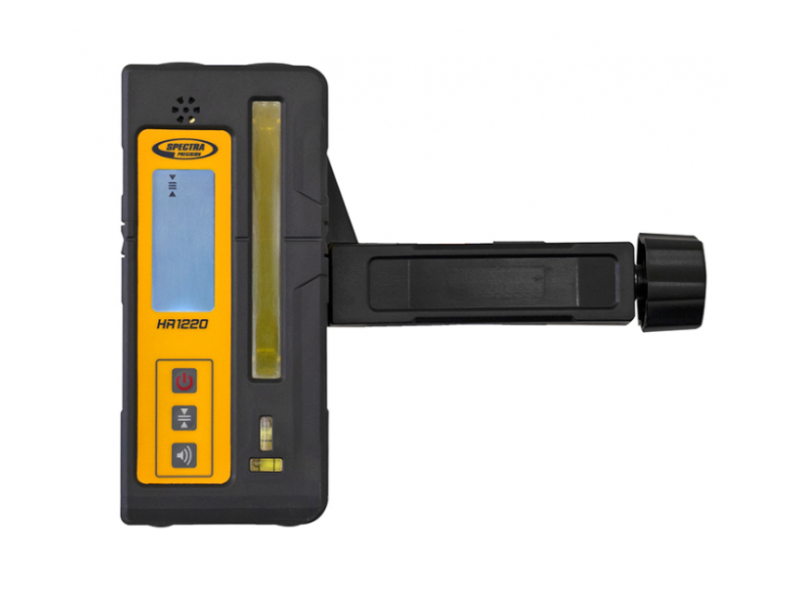

Spectra HR1220 Line Laser Receiver

The HR1220 Laser Receiver detects both red and green laser beams generated from crossline lasers including the LT52R, LT52G, LT56, and LT58G. The receiver can extend the indoor working range of these crossline lasers as well as increasing versatility by allowing outdoor use.

Key Features:

Green and Red Beam Line Laser Receiver
Front and rear LCDs provides easy viewing from either side
Illuminated LCDs for readings in low light conditions
Two accuracy selections to fit various jobsite requirements
Large 80 mm (3 inch) reception height for quick beam acquisition
Audio volume High, Low or Off for various job-site conditions or individual preference
Dual horizontal and vertical level bubbles for accurate horizontal and vertical readings
Work indoors and outdoors increases laser versatility
Built-In magnets on top of receiver for quick attachment to ceiling grids or metal studs
Includes rod clamp for attachment to grade rods and staffs
Four-stage battery status indicates life of battery remaining to eliminate surprise power issues
Automatic shut-off when not in use conserves battery life
Marking notches on each side at on-grade for easy transferring of 1 meter (4 foot) marks
All around over-molding protects the unit
3-Year Warranty

Supplied with:

Staff clamp
Batteries

Technical Specifications:

Working Radius (Laser Dependent)	85 m (275 ft.)
Laser Detection Height	127.0 mm (5“)
Elevation Readout	Front and rear LCDs
Audio Control	Loud / Low / Off
Capture Height	80 mm (3.1 in.)
Accuracy	±1.0 mm (1/16 in.) ±2.0 mm (1/8 in.)
Marking Notches	60 mm (2.36 in.) below top of receiver
Battery Life	40+ hours
Low Battery Indicator	Battery symbol on LCD
Power Supply	2 AA alkaline batteries
Operating Temperature	–10 °C to 50 °C (–14 °F to 122 °F)
Storage Temperature	–20 °C to 70 °C (–4 °F to 158 °F)
Automatic Shut-Off	30 min

Brand: Spectra

Identifier: HR1220
