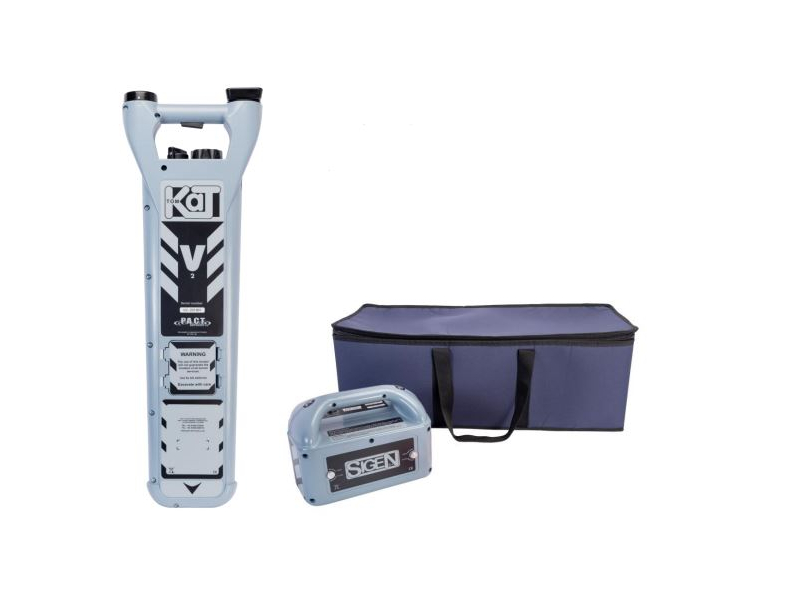

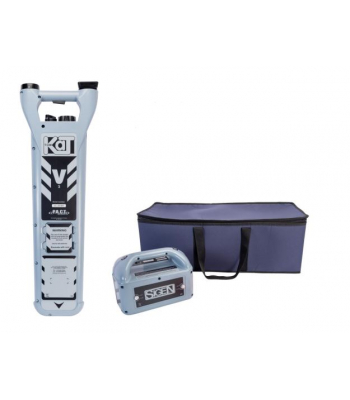

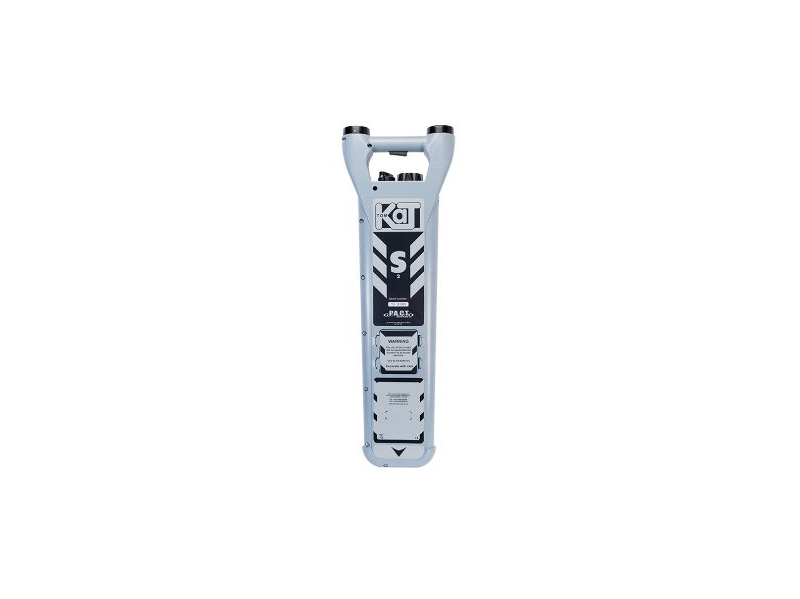

939.54 2024-05-29The P.A.C.T. TOMKAT S2 Pipe and Cable Locator alerts the user to the presence of cables and pipes via an audible indication. The P.A.C.T. TOMKAT S2 Pipe and Cable Locator’s sound alert is outputted from a removable, waterproof speaker allowing the user to place the speaker at the distance most conducive to hearing the alarm.
The P.A.C.T. TOMKAT S2 Pipe and Cable Locator features three modes of operation allowing the user to tailor the instrument to the application:
Further to this, the P.A.C.T. TOMKAT S2 Pipe and Cable Locator also includes a sensitivity control for identifying the precise location of buried conductors.
This instrument has a location accuracy of ± 10% of the depth. Depending on the mode the P.A.C.T. TOMKAT S2 Pipe and Cable Locator is placed in and the condition of the ground, this instrument can detect cables located up to three metres beneath the earth. Please see the following table for further information.
| Mode | Depth of Detection with Good Ground Conditions (loose and damp) | Depth of Detection with Poor Ground Conditions (dry and compact) |
|---|---|---|
| Power | 3m | 2m |
| Radio | 2m | 1m |
| Generator (Genny) | 3m | 2m |
In addition to versatility and accuracy, the P.A.C.T. TOMKAT S2 Pipe and Cable Locator has been optimised for resilience. To this end, it has been constructed from high-impact ABS with an ingress protection rating of 54, ensuring that it is suitable for use in outdoor environments. The P.A.C.T. TOMKAT S2 Pipe and Cable Locator has also been CE tested.
The P.A.C.T. TOMKAT S2 Pipe and Cable Locator is a durable, precise and versatile instrument suitable for locating a variety of pipes and cables in a number of challenging environments.

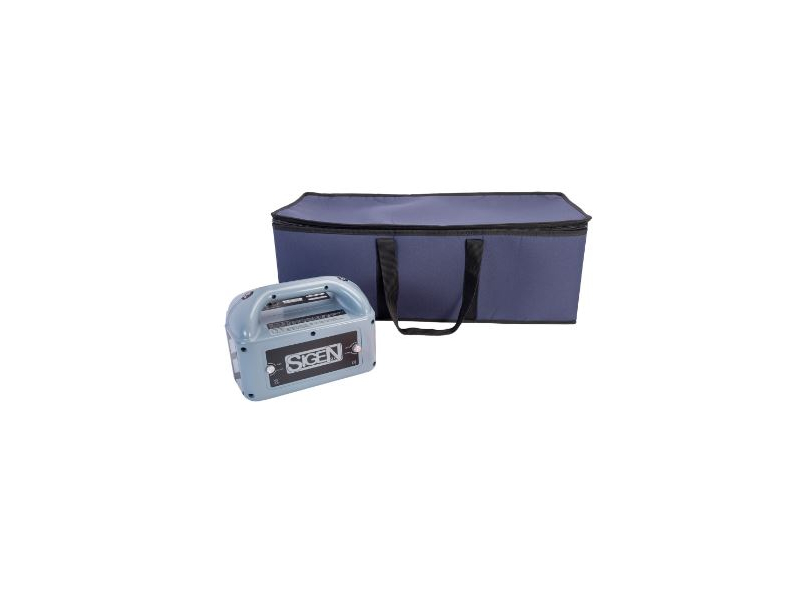

The P.A.C.T. SIGEN 2+ Signal Transmitter is suitable for use with P.A.C.T.’s TOMKAT S2 and V2 Pipe and Cable Locators, as well as other cable locators capable of receiving 33kHz signals. This instrument can be used to avoid cables and pipes and can reduce the strike rate of professionals carrying out electrical, maintenance, construction and/or excavation work.
As standard, this instrument is supplied with an earth stake and connection leads as well as a manufacturer’s calibration to ensure reliability and functionality. The P.A.C.T. SIGEN 2+ Signal Transmitter is also equipped with eight fitted AA batteries providing the instrument with up to forty hours of continuous power. When the P.A.C.T. SIGEN 2+ Signal Transmitter no longer issues a tone, the batteries need replacing.
Also adding to this instrument’s practicality is its high-impact ABS construction and IP54 rating, ensuring that it is suitable for use in rugged, outdoor environments. The P.A.C.T. SIGEN 2+ Signal Transmitter has also been CE tested.
The resilient design and long operating time of the P.A.C.T. SIGEN 2+ Signal Transmitter add to both its practicality and versatility. In addition to this, it is equipped with two modes, Induction and Connection, as well as high- and low- volume and power outputs which also add to its adaptability and expand its scope-for-use.
It is possible to switch from the low-power output to the high-power output at the touch of a button, allowing the user to determine a familiar, continuous tone. Moreover, the high-volume output allows the user to establish a better connection tone, while the low-volume output makes the P.A.C.T. SIGEN 2+ Signal Transmitter suitable for use in quiet locations.
Finally, the P.A.C.T. SIGEN 2+ Signal Transmitter also features an isolated transformer allowing it to be connected to mains supplies (max mains rating: 230V AC) via a 3-pin plug connector.
The P.A.C.T. SIGEN 2+ Signal Transmitter is a versatile instrument suitable for locating buried services accurately and in rugged locations.
