Topcon DL-502 Series Digital Level - Code 2112130A1

This is now a "Discontinued Product"

(Item No Longer Available - No Direct Replacement)

Topcon DL-502 Series Digital Level - Code 2112130A1

Authorised Distributor

Discontinued! This item has been discontinued.

Quote Ref: @108038

Product ID: TOPCON_DL_502

Manufacturer: Topcon

Warranty: Click here for info

Price: (£2,224.99 ex VAT) £2,669.99 (inc VAT)

Available at checkout!

Categories Products

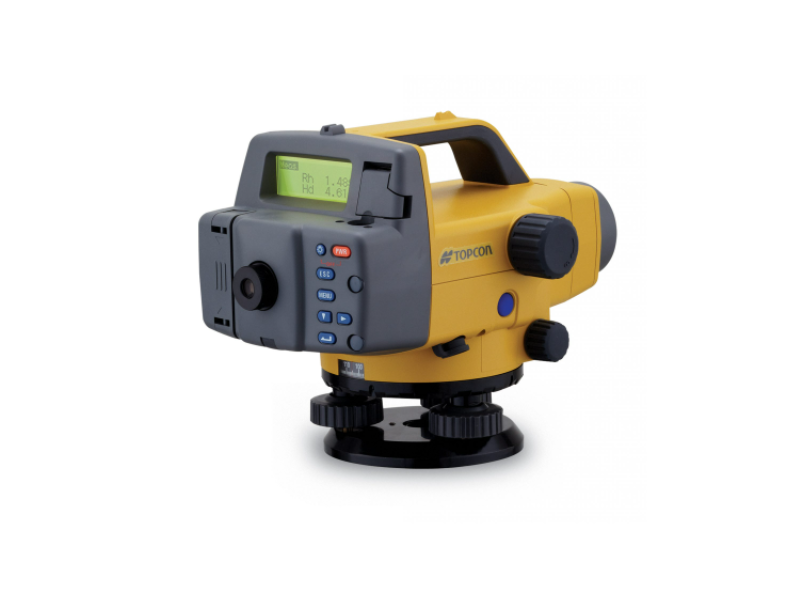

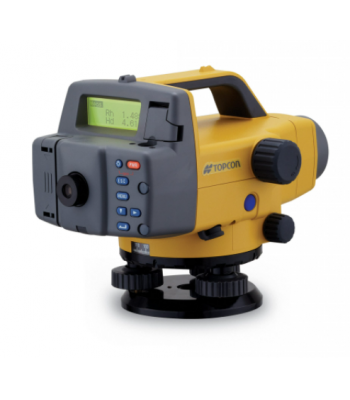

Topcon DL502 Series Digital Level - Code 2112130A1

Quick, easy and reliable… Less errors & less fatigue

The DL-500 range of digital levels from Topcon strips away the main sources of errors (humans!) in leveling by integrating RAB (Random-Bidirectional) staff encoding and "Wave-and-Read" technologies.

Single-button operation
Sub-millimetre height accuracy
Advanced RAB code technology
Pre-installed measurement programs
Inverse staff reading

With two models available to satisfy accuracy requirements, the DL-500 range of digital levels have been designed for use in challenging or hostile environments where errors cannot be allowed to happen.

The exclusive RAB coding technology allows for use in low light conditions or bright sunlight, and with intuitive on board logging software, accurate height determination really is as simple as point and measure.

Technical Specifications:

General
Accuracy	Standard deviation for 1km double run leveling
Electronic Reading	DL502: Invar Staff 0.6mm, Fibre Staff 1.0mmDL503: Invar Staff 0.8mm, Fibre Staff 1.5mm
Optical Reading	DL502: 1mm DL503: 2mm
Measuring Range	1.6 to 100m
Certifications And Standards	USAIPX4 Water Resistance
Performance
Operating Temperature	-4ºF to 122ºF (-20ºC to 50ºC)
Operation Time	Approx. 16 hours
Storage Temperature	-40ºF to 158ºF (-40ºC to 70ºC)
Physical And Environmental
Weight	5.3lbs (2.4kg)
Dimensions	10.1 x 6.2 x 7.2in (257 x 158 x 182mm)

Brand: Topcon

Identifier: TOPCON_DL_502

Product Document Download(s)

Brochure
