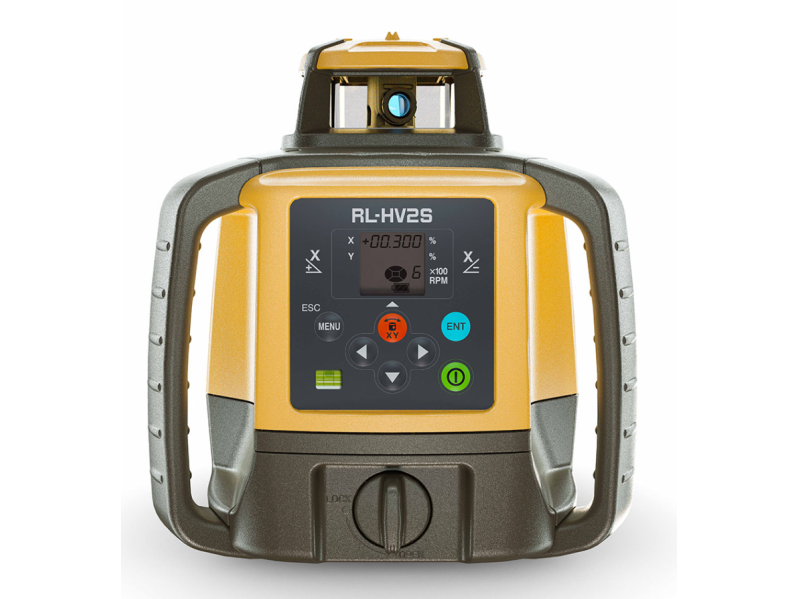

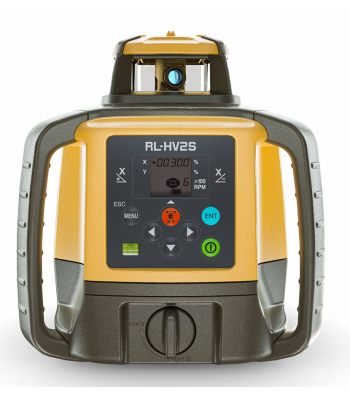

Topcon RL-HV2S Dual Slope Grade Laser with LS-100D Detector or LS-80X Detector

Multi-use applications

Designed for a variety of tasks, it can be used for horizontal, sloping and vertical laser applications. Slopes up to ±5% (±15% with tilting plate) can be used in either the X or Y axis. Turn it on its side and use it for layout and alignment jobs.

High powered

With a working range over 1,300 feet or 400 meters (radius) the RL-HV2S has the power to cover even the biggest projects.

Long battery life

Contractors who want a laser with a long battery life will love the RL-HV2S. With an operating time of 120 hours on alkaline batteries or 65 hours with the rechargeable Ni-MH battery pack, this laser will still be working long after others have quit.

All weather dependability

With the IP66 rating, the RL-HV2S is “jobsite tough” and can withstand dust, a sudden shower, and even torrential rainfall.

Bluetooth Laser Manager

Compatibility for iOS and Android provides wireless remote control using a cell phone to adjust slope and check calibration. No special remote control needed.

• Horizontal, single and dual slope
• Vertical function
• Laser Manager App
• Long-range operation (800m)
• Tough IP66 construction rating
• Extra-long battery life (120 hours)

Kit Components

• RL-HV2 laser
• Laser manager

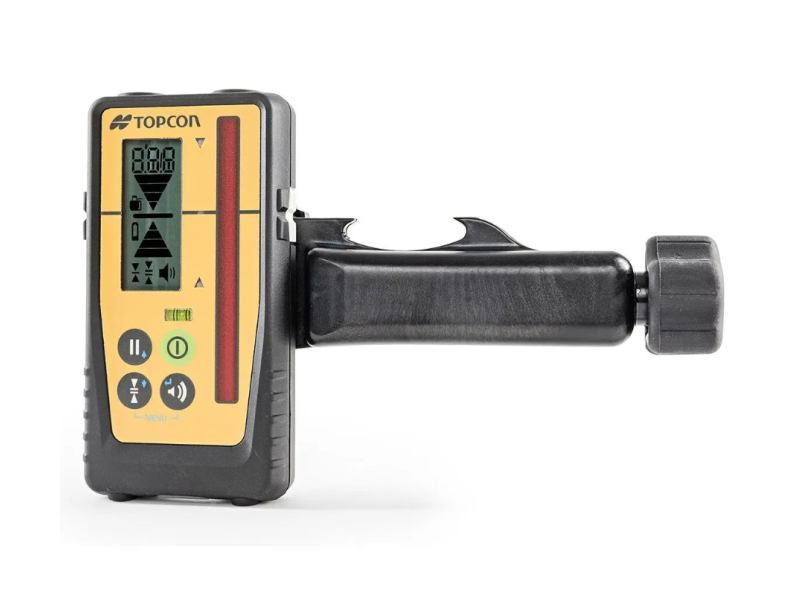

• LS-80X height, sensor included
• Bluetooth
• Sensor holder
• Batteries
• Carry case

Specifications

• Accuracy: H: ±10 arc seconds
• Self Levelling Range: Horizontal ±5°
• Grade: Dual, ±5%
• Working Area: 800m (diameter)
• Rotation Speed: 300, 600 rpm
• Dust/Water Rating: IP66
• Operating Temp. -20°C to 50°C
• Operating Time: Alkaline: 120 hours Ni-MH: 65 Hours
