TPI Europe Smart Wireless THREE channel  Vibration & Bearing Wear Analyser & Data Collector - TPI9043

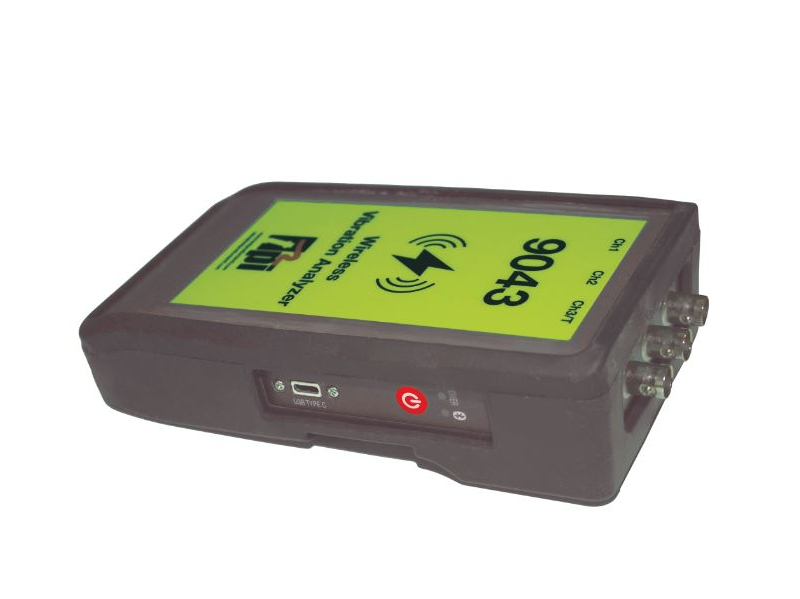

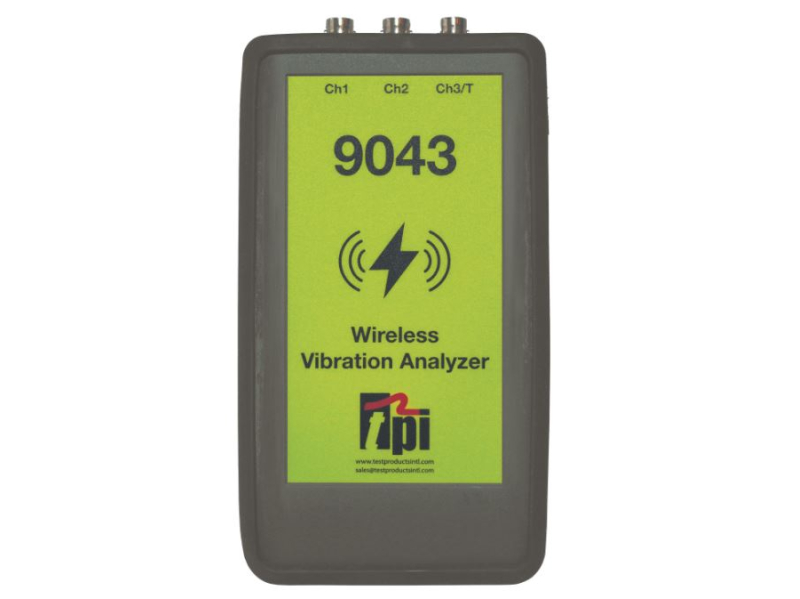

The vibration analyser is capable of wireless communication to the included Android Tablet that allows for measurements to be read and viewed from a safe distance. The TPI 9043 boasts true simultaneous 3 channel capture that is used for 2 Plane balancing and phase and orbit features. Included in the kits are a 505L tachometer and a 2 pin MS connector accelerometer, curly cable and magnet combined.

Boasting standard BNC connectors, the 9043 is compatible with a Triaxial Accelerometer and proximity probes. The 9043 boasts a number of useful features including; a 24 bit A/D converter, DC to 30kHz frequency rate, 100 to 51,2000 line resolution and a 108dB dynamic range. The inclusion of a balancer on the kits provide users with the ability to set up fans.

Measurement data can be transferred wirelessly where available, or by USB-C should Bluetooth not be permitted. Users of the 9043 are able to use the instrument for up to 15 hours before recharging, allowing for a full shift being completed before charging is needed. The TPI 9043-3 boasts a rugged design with a IP67 protection rating with a protective rubber boot that is magnetic offering further protection and suitable for hands free use.

TPI 505L Tachometer

Included a TPI 505L laser tachometer, which combines a photo and contact tachometer that measures motor input and output shaft speed. The 505L helps to determine the conveyor belt speed whilst confirming fan, motor and gear RPM. The RPM of flywheels and pumps can also be measured, with monitor pulley rotation RPM and turbine speeds. RPM can be measured ranging from 6 to 30,000 RPM with the last value, Max value, Min Value: Automatically saved and recalled.

Ultra III Android Tablet App

The TPI 9043 is compatible with the TPI Ultra III Android Tablet App that boasts a number a useful features. The app increases the range for assessing unbalance, misalignment or looseness of bearings from 2/10Hz to 1kHz ISO standards. The ap can also increase from 1kHz to 10kHz BDU range to help identification of bearing conditions. Further increases in the measurement range through the app include the high resolution (0.2Hz?) frequency spectra from 2Hz to 10kHz.

The App provides single and dual plane balancing and no tachometer (4-run) balancing. The app shows screen cursors in single, harmonic, moving harmonic, sideband and time/frequency for waveform.

  • Wireless or USB-C Charging
  • Wireless communication to Android Tablet allowing readings to be viewed from a safe distance with analyser behind safety barrier
  • True simultaneous 3 channel capture
  • Standard BNC connectors l Rugged design - IP67 rating
  • Compatible with Triaxial Accelerometer
  • Compatible with Proximity Probes
  • Data transfer by USB-C where Bluetooth is not permitted
  • Supplied in protective, magnetic, rubber boot for hands free use.
  • 24 bit A/D Converter
  • DC to 30kHz Frequency Range
  • 100 to 51,200 Line Resolution
  • 108dB Dynamic Range

Features:

  • 2/10Hz to 1kHz ISO standard for assessing
  • Unbalance, Misalignment or Looseness
  • 1kHz to 10kHz BDU range for identification of
  • Bearing Condition
  • High resolution (0.2 Hz) frequency spectra from
  • 2 Hz to 10 kHz
  • Single & Dual Plane Balancing
  • No tachometer (4-run) Balancing
  • Screen Cursors - Single, Harmonic, Moving
  • Harmonic, Sideband, and Time/Frequency for
  • waveform
  • Demod & Coast Down
  • Phase & Orbit Plots
  • Gap Voltage Display
  • Download Routes with Inspection points
  • Clear, easy-to-read and navigate touchscreen

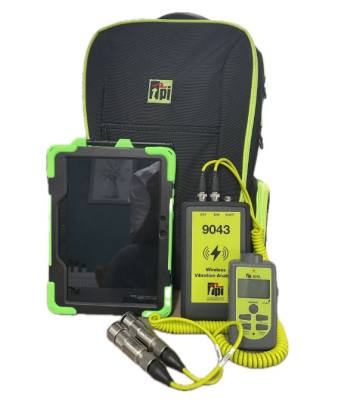

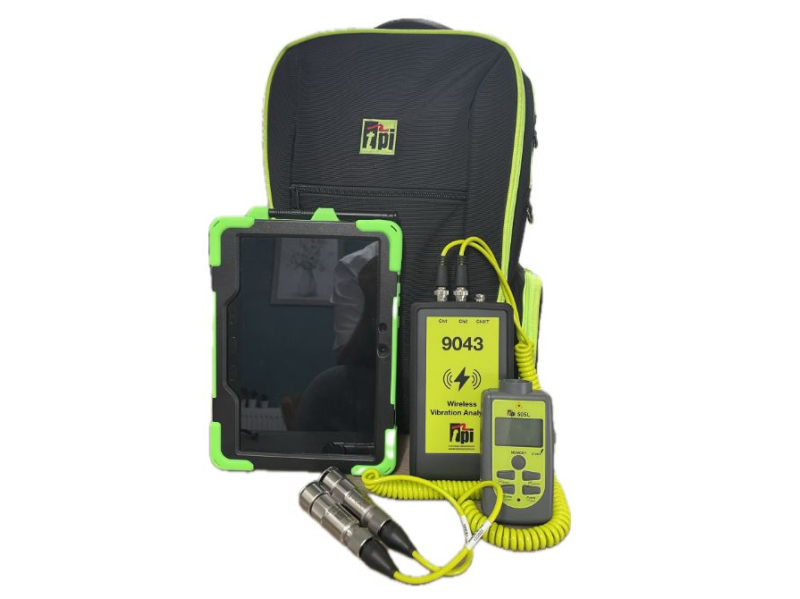

What's In The Box?

9043-K1 Smart Wireless Vibration Analyser Kit

  • 9043 Wireless 3 Channel Vibration Analyser
  • Android Tablet running the FREE, Subscription FREE Ultra III app
  • 2 x A9018 Accelerometers with Curly Cable & Magnets
  • 505L Tachometer
  • Cable in a BP1 Rucksack

Brand: TPI Europe

Identifier: TPI_9043_K1
