Available (Next Working Day Delivery (if ordered by 2pm))
Quote Ref: @104818
Product ID: HINGEJIG
Barcode: 5027654503300
Manufacturer: Trend
Warranty: 12 months
All Trend products are guaranteed for 12 months (unless guarantee card or product packaging advises otherwise) from the original purchase date against any manufacturing defects leading to premature failure. We guarantee to replace all defective parts free of charge or at its discretion to replace the product free of charge.
Click here for when the guarantee will not be valid
Trend Professional Power Tools meet the highest quality standards. We offer you the opportunity to extend your warranty to three years from date of purchase free of charge. All you have to do is register your tool online within four weeks of purchase.
Price: (£212.49 ex VAT) £254.99 (inc VAT)

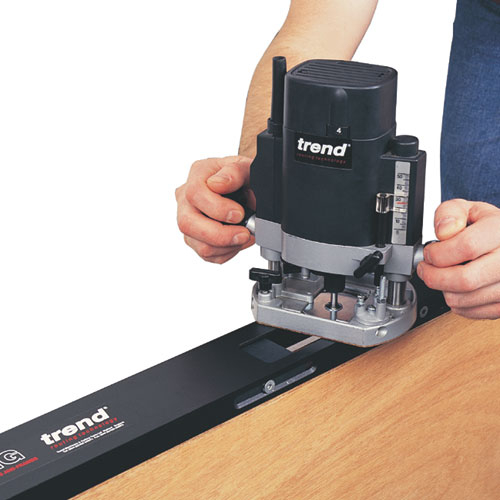

254.99 2024-06-10The single piece Contractor Hinge Jig is designed for recessing hinges in wooden doors & frames with a plunge router.
It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
Used on-site & in joinery shops to increase productivity with excellent results.
Four apertures for fire door requirements.
No need for marking out in the conventional way.
Quick & simple to set-up as the hinge is used as the pattern.
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
Use with a light duty plunge router with 1/4 inch collet.
Long reach router cutter required, 12mm diameter with 70mm overall length.
Angled position slots to prevent creep.
Unibase may be needed.
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.
Nett Weight (kg): 4671
Gross Weight (kg): 7500
Barcode SKU: 5027654503300
Includes: 4 x Apertures|2 x Bradawls with spacer|1 x 16mm guide bush|1 x T-Handle hex key 4mm|1 x 4mm spacing gauge|1 x Plastic storage tube
Warranty Period: 12 months
Intrastat Code: 7616999099
Packaged Size: 2070x113x113mm
Brand: Trend
Identifier: HINGE/JIG
