Vistaplan Draughting Machine - A0 or A1

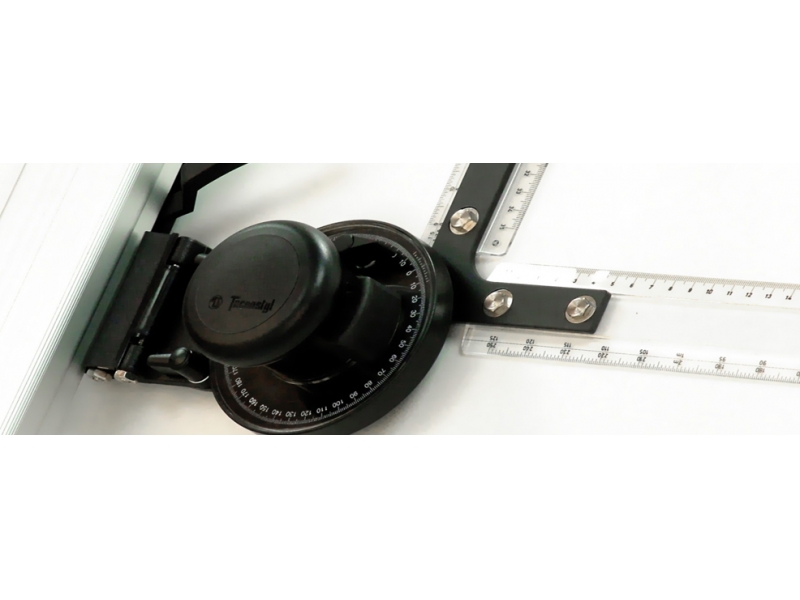

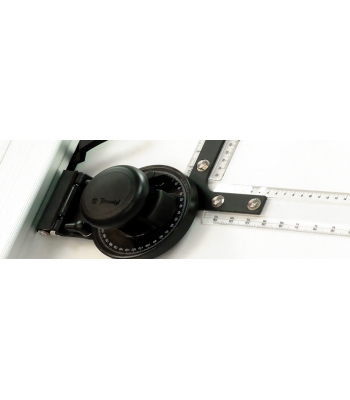

Drafting Machine 360 – A1 and A0

These precision drafting machines feature a full drafting Machine 360 degree movement with adjustable base line setting. The vertical and horizontal motion can be locked independently allowing full coverage of standard A1 or A0 paper. All drafting machines are supplied with horizontal and vertical rules with 1:1, 1:2.5 and 1:5 scales. These clear acrylic scales are supplied in two sizes:

A0 – 350mm vertical x 500mm horizontal

A1 – 300mm vertical x 400mm horizontal

ModelBoard WidthBoard Height

Drafting Machine 360 A0 1500mm 920mm
Drafting Machine 360 A1 1200mm 650mm

Code Description

E09110 Draughting Machine Trackstar 629 360 degrees including scales A0
E09100 draughting machine Trackstar 626 360 degrees including scales A1

Brand: Vistaplan

Identifier: Draughting_Machine
