WARRIOR SAMURAI 9500 SHORT DRUM ELECTRIC WINCH - SYNTHETIC

This is now a "Discontinued Product"

(Item No Longer Available)

Replacement Product!

This product has been replaced. Click on the button below to access it.

Warrior Samurai Next Generation 9500 Short Drum Winch - Armortek Rope - 95DVA12

Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Discontinued! This item has been discontinued.

Quote Ref: @90257

Product ID: WARRIOR_95SDA12

Manufacturer: Warrior Winches

Price: 412.10 ex VAT) £494.52 (inc VAT)

494.52 2025-07-20
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!

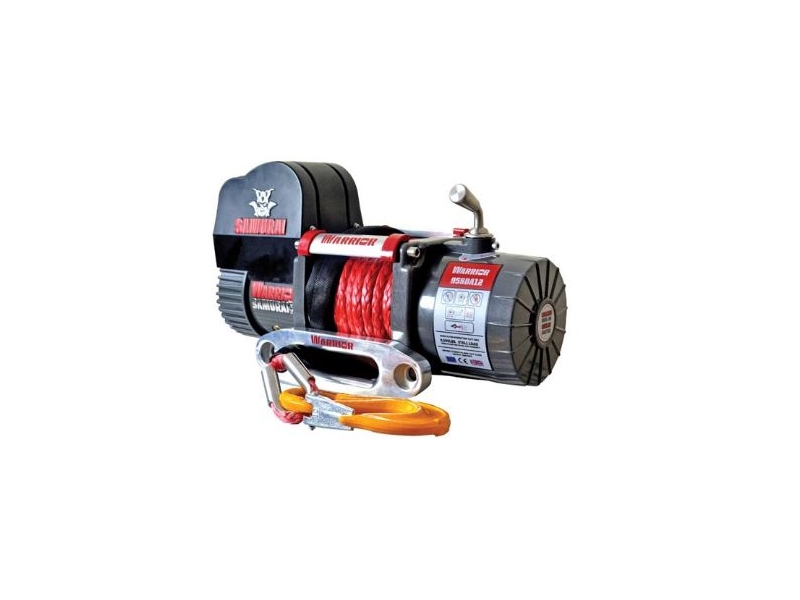

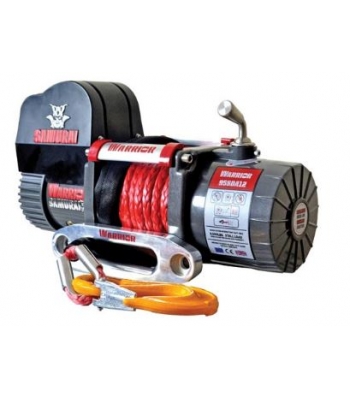

WARRIOR SAMURAI 9500 SHORT DRUM ELECTRIC WINCH - SYNTHETIC

The narrow drum version of the best selling 9500 Samurai. A total width of 437 mm ensures this is the perfect product for limited space. The 5.0hp motor delivers 9500lb of pulling power in space normally designed for winches with half the power. The Short Drum winch is the preferred choice of the British Military on specialist vehicles currently serving in action. A total weight of 20kg.

OUTSTANDING FEATURES

  • Power In and Power Out
  • High Quality 5.0hp Series Wound Motor
  • Heavy Duty Waterproof Contactors
  • Full Steel Planetary Gearing
  • Double Sealed Motor and Drum
  • Full Load Holding Brake
  • Integrated Wireless Remote (12V only)
Rated Line Pull 9500 lbs (4500 kg)
Motor 12v : 5.0hp / 3.5kw
Gearing 230:1
Braking Action Auto in the drum
Drum Size Dia x L 63 x 120mm
Cable Dia x L 9.5mm x 25m
Dimensions 437 x 160 x 272mm
Mounting Pattern 151 x 114mm
Certification CE

Layer of Wire RopeLine Pulllbs (kgs)
1 9500 (4309)
2 7706 (3495)
3 6482 (2940)
4 5593 (2537)

Line Pull lbs (kgs)Line Speedft/min (m/min)Amp Draw 12vAmp Draw 24v
0 23 (7) 80 70
3000 (1361) 12.5 (3.8) 170 140
6000 (2722) 9.8 (3) 260 210
9500 (4309) 6.4 (1.9) 380 270

Brand: Warrior Winches

Identifier: WARRIOR 95SDA12
