Available (Estimated Delivery Time 5-7 Working Days)
Quote Ref: @94040
Product ID: 9HSVA12
Related Products: See all related products
Manufacturer: Warrior Winches
Price: (£549.17 ex VAT) £659.00 (inc VAT)

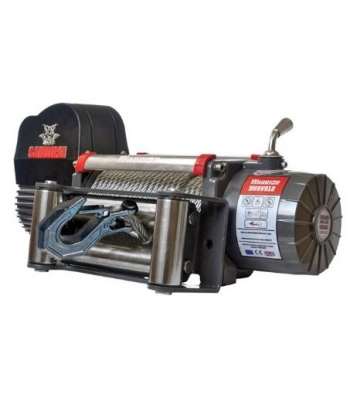

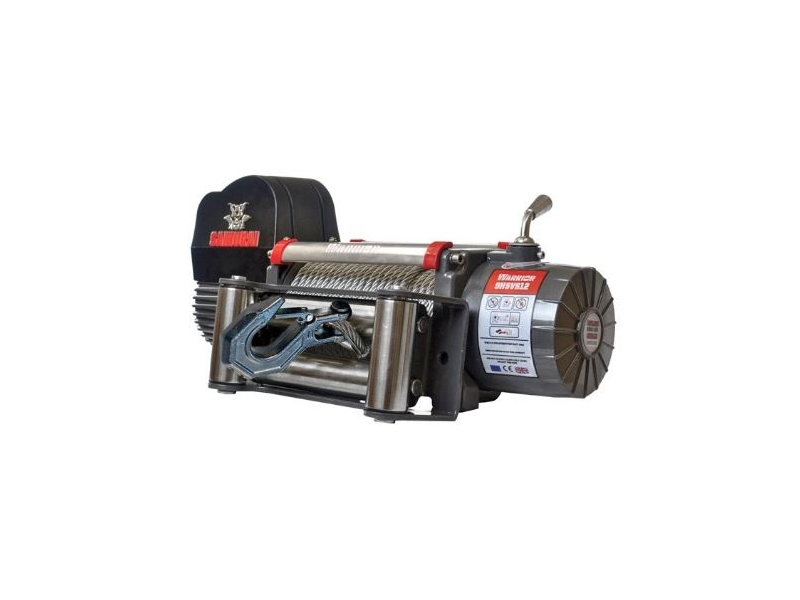

659.00 2024-05-27The Samurai HS (High Speed) is fully sealed with an unbeatable line Speed of 40 ft/min!
The premium “Next Generation” Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum, perfect for Armortek Ropes.
Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with Aluminium Hawse Fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.
Outstanding Features
SPECIFICATIONS
| Rated Line Pull | 9500 lbs (4309 kg) |
|---|---|
| Motor | 12v : 8.6hp / 6.4kw |
| Gearing | 196:1 |
| Braking Action | External Brake |
| Drum Size - Dia x L | 63 x 224mm(2.48 x 8.82 in) |
| Cable - Dia x L | 9.5mm x 25m(0.37 in x 82 ft) |
| Dimensions | 593 x 160 x 248mm(23.35 x 6.3 x 9.8 in) |
| Mounting Pattern | 254 x 114 mm(10 x 4.5 in) |
| Weight kg | 22 kg (49 lbs) |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 9500 (4309) | 15.1 (4.6) |
| 2 | 7600 (3447) | 34.1 (10.4) |
| 3 | 6200 (2812) | 57.7 (17.6) |
| 4 | 5400 (2400) | 85.3 (26.0) |
| Line Pulllbs (kgs) | Line Speed 12vft/min (m/min) | Line Speed 24vft/min (m/min) | Amp Draw12v | Amp Draw24v |
|---|---|---|---|---|
| 0 | 39.4 (12) | 42.6 (13) | 60 | 40 |
| 4000 (1818) | 19.0 (5.8) | 20.3 (6.2) | 240 | 130 |
| 6000 (2722) | 13.1 (4.0) | 16.4 (5.0) | 345 | 170 |
| 8000 (3628) | 10.5 (3.2) | 13.8 (4.2) | 415 | 210 |
| 9500 (4309) | 9.8 (3.0) | 12.5 (3.8) | 480 | 280 |
Old Code: 95HSA12
Brand: Warrior Winches
Identifier: 9HSVA12
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 7 working day(s).
