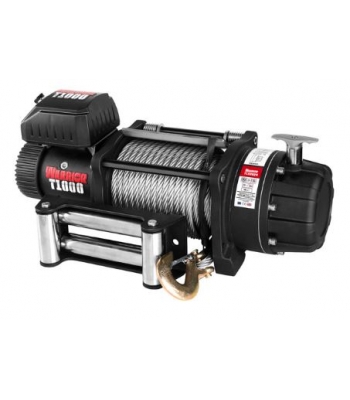

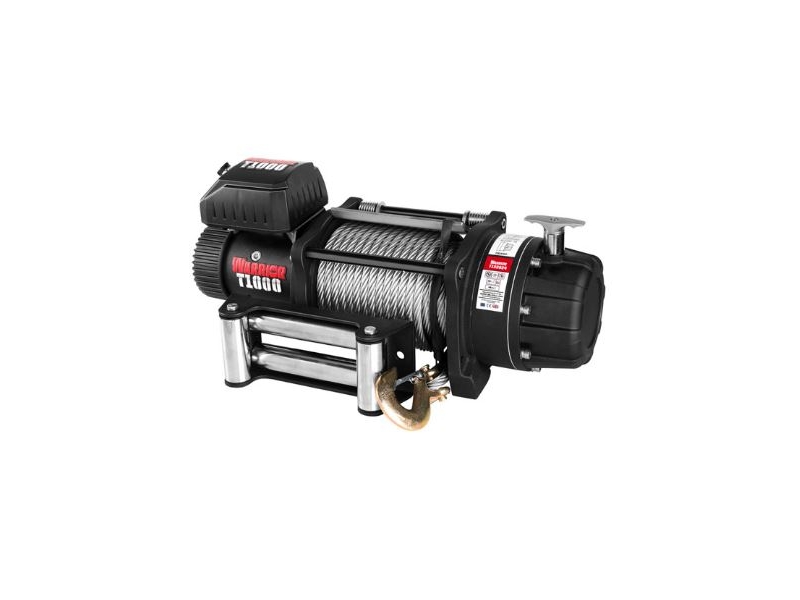

Warrior T1000-2200 Severe Duty Winch in 12v (T122S12) / 24v (T122S24)

The T1000 range of “Severe Duty” Warrior Winches were originally designed as highly advanced prototypes for military application, where the ability to perform in severe climates and the harshest environments imaginable are an essential prerequisite.

After successful operations in the field & following many plaudits at last year’s Defence and Security Equipment International Expo, the decision was made to allow the T1000 range to become widely available for general use.

Available in both 12v or 24v options, with either steel or the more widely preferred military grade “Armortek Extreme” ropes, the T1000 Series range from 10,000lbs (4,545 Tonne) right up to the colossal 22,000 pounder (10 Tonne).

The T1000 could be a complete game changer as it is a more than capable solution for any Industrial, Commercial or Military applications requiring a truly fully functional battle ready unit, or for those individuals who just demand the ultimate beast of a Warrior on their truck.

Like its namesake, T1000 series is undoubtably one of the most the most advanced and durable machines on the market, it really is the best of the best.

Outstanding Features
  • IP68 Rated Military Grade Winch & Control Box.
  • Revolutionary external brake, designed to ensure there is no critical heat build-up in the drum.
  • This external brake is also more capable of lowering and holding a vital load than standard brakes.
  • Special Lithium Grease ensures operation in extreme temperatures.
  • Hardened 3 stage planetary gears for reliability & efficiency.
  • A Chemical and corrosion resistant Powder Coat.
  • Stainless Steel Roller Fairlead
  • Stainless steel fittings as standard.
Rated Line Pull 22000 lbs (9979 kgs)
Motor 12V : 5.5kW / 7.4hp24V : 6.1kW / 8.2hp
Gearing 450:1
Braking Action External Brake
Drum Size - Dia x L 88 x 213mm(3.4 x 8.3 in)
Cable - Dia x L 13.8mm x 24m(0.54 in x 78.7 ft)
Dimensions 638 x 214 x 289mm(25.2 x 8.4 x 11.4 in)
Mounting Pattern 254 x 114.3mm / 254 x 165.1mm10 x 4.5 in / 10 x 6.5 in
Weight kg 75kg (165.3 lbs)
Clutch Manual
Layer of Rope/CableLine Pull: lbs(kgs)Rope on drum ft(m)
1 22000 (9979) 14.1 (4.3)
2 17300 (7847) 32.8 (10.0)
3 14260 (6468) 55.1 (16.8)
4 12130 (5502) 78.7 (24.0)
Line Pulllbs (kgs)Line Speed 12vft/min (m/min)Line Speed 24vft/min (m/min)Amp Draw12vAmp Draw24v
0 21.7 (6.6) 23.0 (7.0) 65 40
5000 (2268) 9.8 (3.0) 10.2 (3.1) 175 100
10000 (4536) 6.6 (2.0) 7.2 (2.2) 270 150
15000 (6804) 4.9 (1.5) 5.2 (1.6) 350 200
22000(9979) 3.0 (0.9) 3.3 (1.0) 460 270

Brand: Warrior Winches

Identifier: Warrior T1000 2200S
