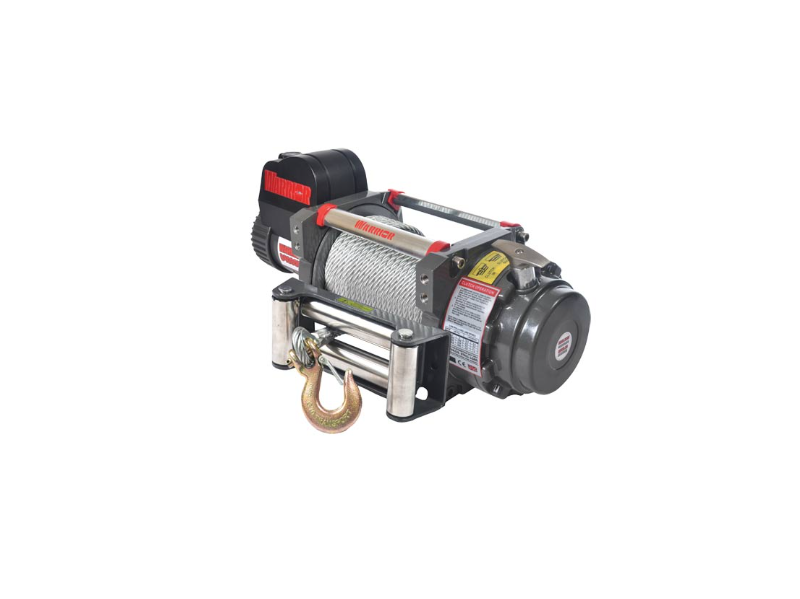

WARRIOR WINCH - 4000EN Electric Winch - With Steel Cable. 12/24v Available

The EN Series winches have been developed for the professional operator. The winches have been designed to ensure that as part of an installation solution they can meet the requirements of EN 14492:1. Additional features include 10: 1 drum/rope ratio, 2:1 rope ratio, double rope fixing. As well as these special features the winches come complete with all the standard Warrior features such as high quality motors, full sealing and stainless steel fairleads and fittings.

PLEASE NOTE: This winch can only be front mounted using the appropriate IST640 mounting plate.
Outstanding Features
  • Wire rope to drum ratio 10:1
  • 2160N/mm2 Rope grade with 2:1 rating
  • Twin hole rope fixing
  • Full load holding brake
  • Overload protection (option)
  • Emergency stop remote handset
  • Free spool clutch lever
  • Machine guard available
Rated Line Pull 8818 lbs (4000 kg)
Motor 12v : 7.0hp / 4.9kw
Gearing 430:1
Braking Action Auto in the drum
Drum Size - Dia x L 90 x 219mm(3.54 x 8.62 in)
Cable - Dia x L 10.2mm x 26m(0.4 in x 85 ft)
Dimensions 610 x 216 x 254mm(24.02 x 8.5 x 10 in)
Mounting Pattern 254 x 114.3 mm(10 x 4.5 in)
Weight kg 60 kg (132 lbs)
Clutch Manual
Certification CE Certified
Layer of Rope/CableLine Pull: lbs(kgs)
1 8180 (4000)
2 7315 (3318)
3 6248 (2834)
4 5454 (2474)
Line Pulllbs (kgs)Line Speed 12vft/min (m/min)Amp Draw12v
0 14.4 (4.4) 80
2205 (1000) 8.5 (2.6) 130
4409 (2000) 6.9 (2.1) 180
8818 (4000) 4.9 (1.5) 280

Accessories Included

3/8 Hook

3.8m Remote Handset

Emergency Stop Button

Heavy Duty Battery Leads

Heavy Duty Stainless Steel Roller Fairleads

Stainless Steel Mounting Hardware

Steel Cable 10.2mm x 26m

Brand: Warrior Winches

Identifier: 40ENS

Product Document Download(s)

  Product Manual

  Technical Diagram
