Manufacturer: Warrior Winches
Price: (£974.99 ex VAT) £1,169.99 (inc VAT)

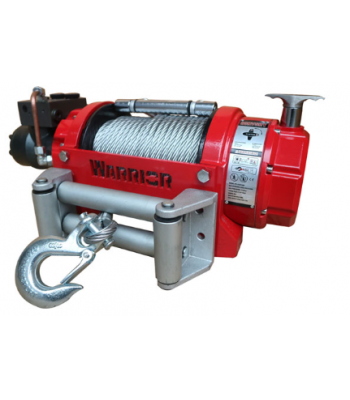

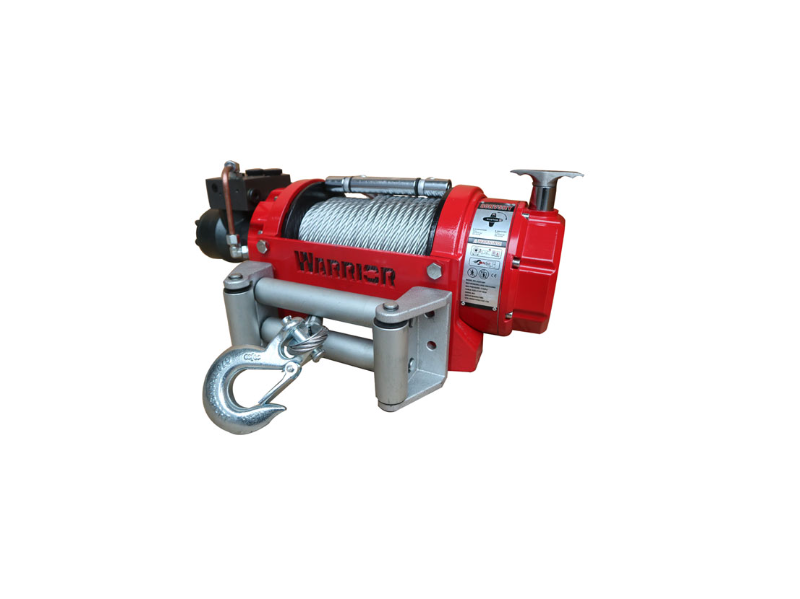

1169.99 2024-05-27The RV Series of hydraulic winches meet EN 14992 & SAEJ-706 standards. They are designed for tough, commercial and industrial applications and are available from 8000lbs to 18000lbs (including an 8000lb Short drum version).
| Rated Line Pull | 8000 lbs (3629 kgs) |
|---|---|
| Gearing | 17.6:1 |
| Braking Action | Hydraulic |
| Drum Size - Dia x L | 4.0 x 7.91 in102 x 201mm |
| Cable - Dia x L | 3/8 in x 98.4 ft9.2mm x 30.0m |
| Dimensions | 23.23 x 9.3 x 9.5 in590 x 237 x 241mm |
| Mounting Pattern | 10 x 4.5 in (254 x 114.3mm)10 x 6.5 in (254 x 165.1mm)8-M10 |
| Weight kg | 65 kg (143.3 lb) |
| Max Flow L/min | 5-60L/min |
| Max Pressure Mpa | 12Mpa |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 8000(3629) | 21.3(6.5) |
| 2 | 6864(3113) | 49.2(15.0) |
| 3 | 6010(2726) | 80.4(24.5) |
| 4 | 5345(2424) | 98.4(30.0) |
| Line Pulllbs (kgs) | Line Speedft/min (m/min) | FlowL/min (G/min) | PressureMpa |
|---|---|---|---|
| 0 | 37.7(11.5) | 5 (1.3) | 2.0(290.1) |
| 4000(1814) | 23.9(7.3) | 20 (5.3) | 5.0(725.2) |
| 6000(2722) | 10.8(3.3) | 40 (10.5) | 8.0(1160.3) |
| 8000(3629) | 3.2(1.0) | 60 (15.8) | 12.0(1740.4) |
Brand: Warrior Winches
Identifier: WINCH_RVSHY
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 7 working day(s).
SSL Certified Secure website to ensure secure online ordering.
Please return the item/s if not suitable for a full refund (within 7 working days of receipt).
We guarantee security of all your personal details, we do not pass on any customer information.
Accept all payment methods including all major Credit Cards, Paypal and Amazon Payments.
Order online now using our Secure SSL Certified Secure website.
Add this product to your basket and come back at any time to complete the order.
Order by phone on 01737783101.
Order with an official purchase order by emailing sales@sitebox.ltd.uk. We will check your account status or if you do not hold an account we will credit check your organisation, confirm and process your order. Please note the first order(s) will always need to be paid upfront unless you are a government linked organisation. Goods remain the property of Sitebox Ltd until paid for in full as per our full terms and conditions.
The RV Series of hydraulic winches meet EN 14992 & SAEJ-706 standards. They are designed for tough, commercial and industrial applications and are available from 8000lbs to 1... read on
| Option | Price Difference | |
|---|---|---|
| 8000lb EN Hydraulic | none | |
| 10000lb EN Hydraulic | +£12.50 | |
| 15000lb EN Hydraulic | +£160.00 | |
| 18000lb EN Hydraulic | +£212.50 |
