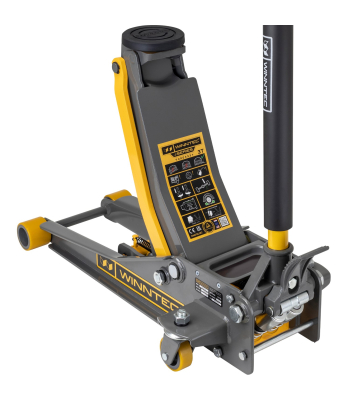

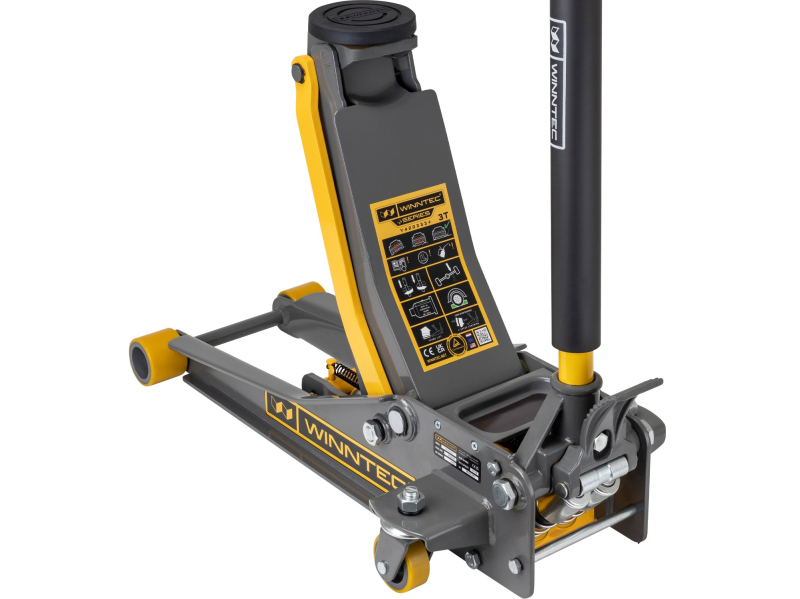

WINNTEC® +SERIES 3 Ton Low-Profile Trolley Jack - Code 09714

The WINNTEC® +SERIES 3 Ton Turbo Lifter Low-Profile Trolley Jack is a high-performance hydraulic jack engineered for professional automotive garages and workshops, mobile service vans and general vehicle maintenance operations.

A low-profile chassis provides access under reduced clearance vehicles, while the Turbo Lifter™ twin-piston pump delivers rapid approach to the load point with minimal handle strokes. Two-Speed Lowering™ enables controlled descent under varying load conditions.

An enhanced +SERIES hydraulic power unit and robot-welded steel design ensures long-term stability and wear resistance. Supported by a World Exclusive 5-Year Warranty.

KEY FEATURES

• Low-profile design with 503mm max. lift height and 76mm min. saddle height
• Turbo Lifter™ twin-piston pump for accelerated no-load lift and reduced user effort
• Two-Speed Lowering™ system for smooth, precise load-sensitive controlled descent
• +SERIES hydraulic power unit with chromed components and extended-life seals
• Robot-welded with PU wheels for high structural strength and fatigue resistance
• Engineered for durability and supported by a World Exclusive 5-Year Warranty

Applications & uses: Suitable for professional automotive garages, workshops and mobile service vehicles. Perfect for general repair tasks including tyre replacement, brake work and routine maintenance.

What's in the box?: 1x WINNTEC® +SERIES 3 Ton Turbo Lifter Low-Profile Trolley Jack.

INNOVATIVE & PROVEN DESIGN OFFERS POWERFUL & SAFE VEHICLE LIFTING

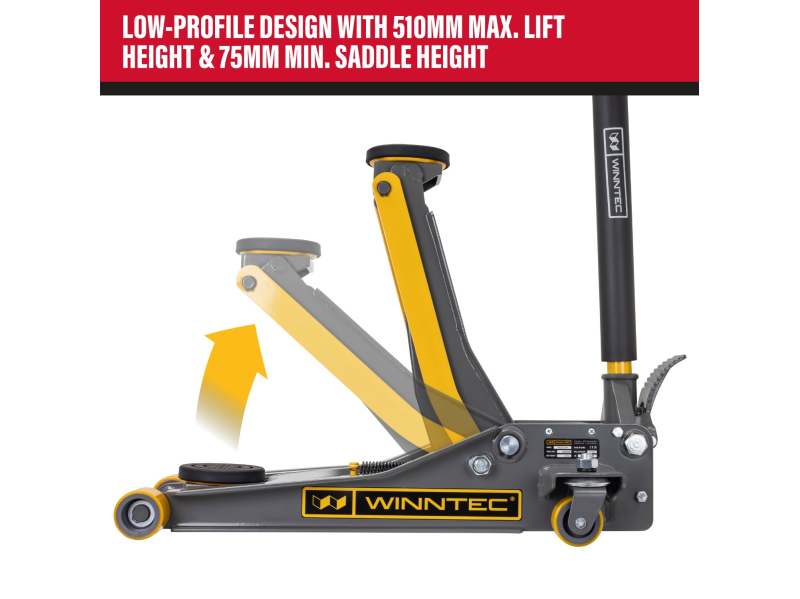

• 503mm max. lift and 76mm min. saddle height accommodates low clearance vehicles.

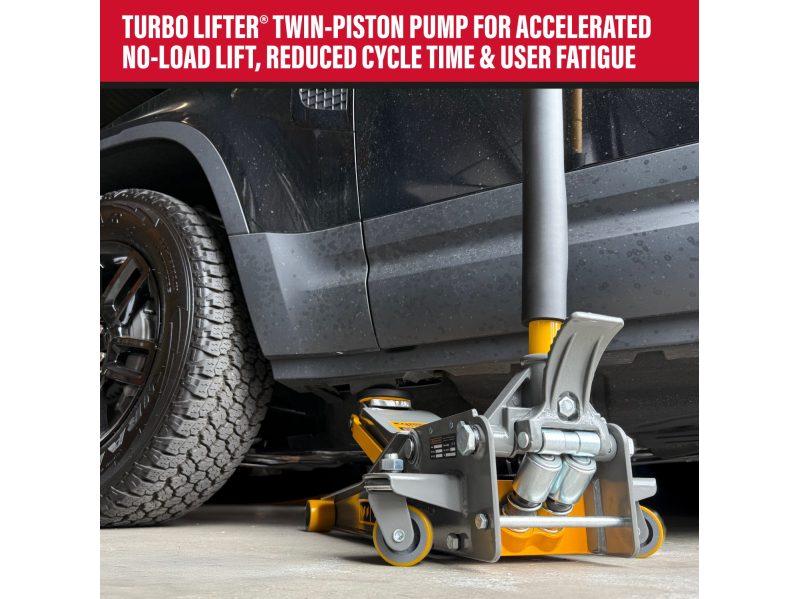

• Turbo Lifter™ twin-piston pump rapidly positions the saddle at the lift point, reducing cycle time and user fatigue.
• Two-Speed Lowering™ provides controlled descent; slow for precision under load, faster for non-critical lowering.
• Integrated magnetic tray for securely retaining fasteners and small tools.
• Foot pedal enables hands-free initial saddle elevation.

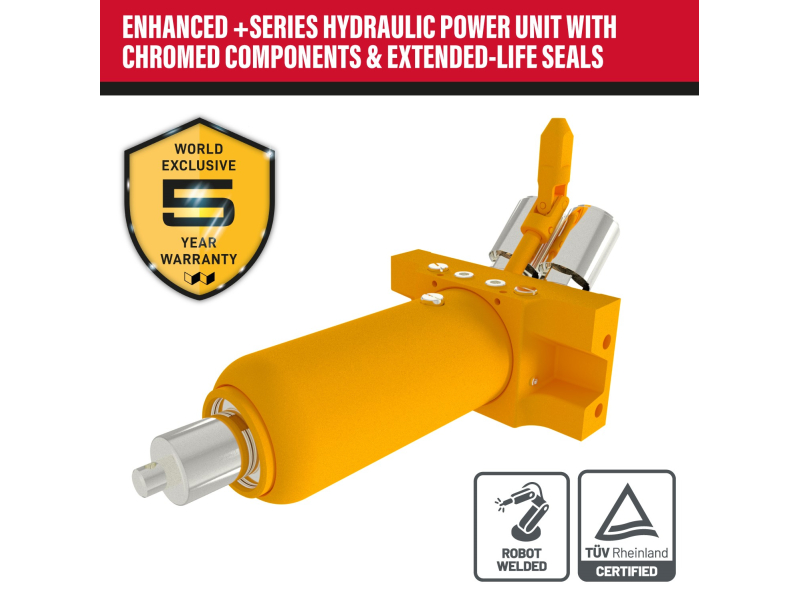

ENHANCED +SERIES HYDRAULIC POWER UNIT FOR ADDED LIFTING POWER & LONG-LASTING PERFORMANCE

• Chromed cylinder and pistons with precision-machined internal surfaces reduce friction and extend service life.
• High-grade hydraulic oil maintains performance under sustained pressure and minimises risk of seizure or stiction.
• Reinforced seals improve resistance to leakage, contamination or wear.

ROBOT-WELDED STEEL CHASSIS FOR EXCEPTIONAL STABILITY & ASSURED INTEGRITY

• Automated robotic welding ensures uniform penetration and repeatable joint strength.
• Increased resistance to torsional stress, cracking and long-term fatigue compared with manual welds.

IMPROVED OPERATOR & VEHICLE PROTECTION MEASURES

• Wide base polyurethane (PU) wheels provide smooth, low noise movement and reduces floor marking.
• Two-piece handle with protective foam bumper for safer positioning and compact storage when not in use.

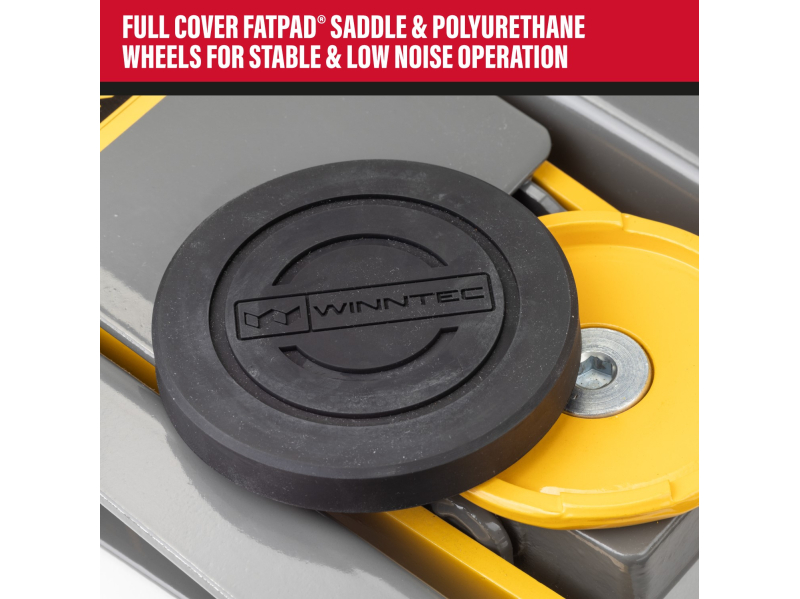

• Full cover FatPad™ saddle ensures stable load contact and reduces risk or point-loading damage.
• Compatible with WINNTEC® X (09709) and EV (09711) Liftpads.

WINNTEC® WORLD EXCLUSIVE 5-YEAR WARRANTY FOR ADDED PEACE-OF-MIND

• Supported by a World Exclusive 5-Year Warranty that reflects the jack's engineered durability and component quality.

Technical Specifications
