Manufacturer: Evopower
Price: (£8,832.50 ex VAT) £10,599.00 (inc VAT)

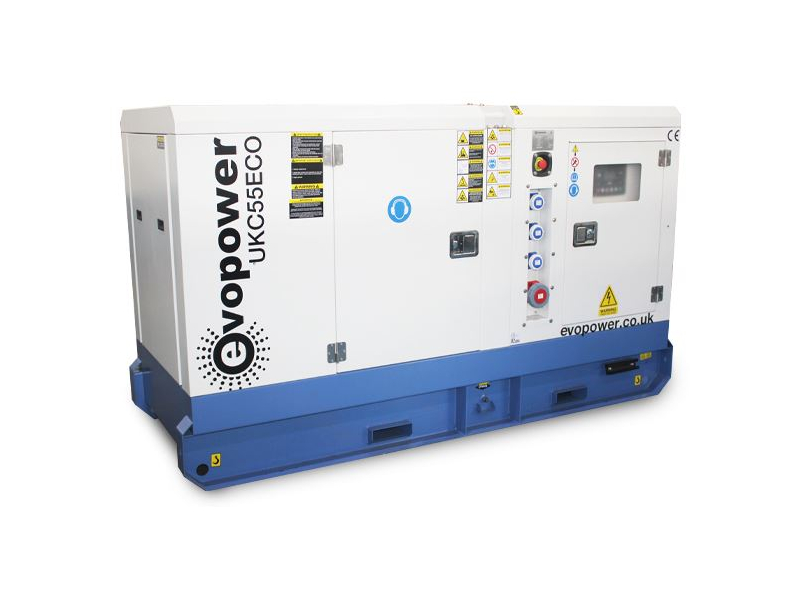

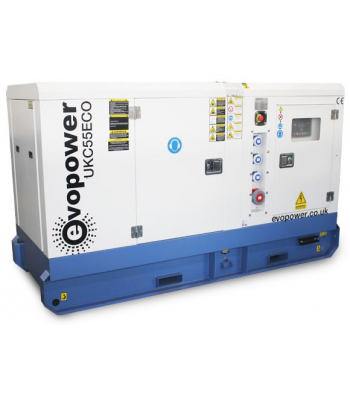

10599.00 2024-05-28The Evopower UKC55ECO 3-phase diesel generator produces 55 kVA (44 kW) when used in a standby power application or 50 kVA (40 kW) when used in a prime power application. Standby (ESP) and Prime Power (PPR) ratings are defined within ISO8528. The high quality Genpower LK224D brushless alternator is self-excited and includes an AVR (automatic voltage regulator) to maintain the output voltage and prevent voltage drop due to a sudden increase in load. The generator is equipped with 3x 16 Amp 230V sockets and a 3-phase, 63 Amp socket, along with the ability to connect direct to the busbar, all protected by variable, CHiNT RCD's.
Our heavy duty weatherproof close fit canopy enclosure on the 55kVA diesel generator is rust proof, powder coated and fitted with quality sound attenuation to reduce the noise level to only 70 dB at a 7 metre distance. Stainless steel fittings are used for all door hinges and locks.
Designed in the UK, our ECO series of diesel generators from 55kVA to 550kVA, are much more than an engine and alternator, we only use high quality components in our gensets such as CHiNT 4 pole MCCB breakers, Varta batteries, industrial grade silencers, Cummins engines and DSE (Deep Sea Electronics) control panels along with our custom alternator refined over years of experience building diesel gensets.
Our 55KVA diesel generator, the UKC55ECO model has an integral base mounted fuel tank which holds 102 litres of diesel to power the diesel generator set for up to 14.5hours at 50% load. We offer a long run version of this model which has a 24 hour integral base mounted tank, which you can view here. This standard version will use 12.9L/hour of diesel while on full load (prime rating), down to 7L/hour on half load (prime rating). You can use red diesel to save on running costs without affecting any warranty terms. The easy to access external fuel filler cap is lockable for security and there is a fuel gauge mounted internally which is easy to see and read.
The base mounted diesel tank is integrated within the heavy duty skid, complete with fork holes for easy unloading/moving and hook eyes to help keep the machine stable while transporting or lifting into position.
All generators in the ECO range are powered by Cummins and are fitted with battery charger and coolant heater as standard.
| Weight | 1300 kg |
|---|---|
| Dimensions | 2538 × 1000 × 1555 mm |
| Standby Power (kVA) | 55 |
| Standby Power (kW) | 44 |
| Prime Power (kVA) | 50 |
| Prime Power (kW) | 40 |
| Max Amperage | 79.4 |
| Phase | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Engine Model | Cummins 4BTA3.9-G2 |
| Fuel Type | Diesel |
| Fuel Filter Part No. | FF5052, FS1280 |
| Engine Oil Type | SAE 15W40 |
| Engine Oil Volume (Litres) | 16.4 |
| Oil Filter Part No. | LF3345 |
| Rated Speed (R/min / RPM) | 1500 |
| Cooling | Water / Aftercooled |
| Fuel Tank Size (Litres) | 102 |
| Run Time @ 50% Load (Prime) | 14.5 |
| Run Time @ 75% Load (Prime) | 10.2 |
| Alternator Model | Genpower LK224D |
| Breakers | CHiNT 4P MCCB |
| Control Panel Model | Deep Sea Electronics 6120 MKIII |
| ATS Compatible? | Yes |
| Sound Level @ 7m (dB) | 70 |
| Air Filter Part No. | KW1524 |
| Accessories | Battery Charger, External Fuel Tank, Fuel Hand Pump, Water Heater |
| EAN / Barcode | 5056275799519 |
*PLEASE NOTE: Depending on location, carriage may be chargeable due to size of unit.
