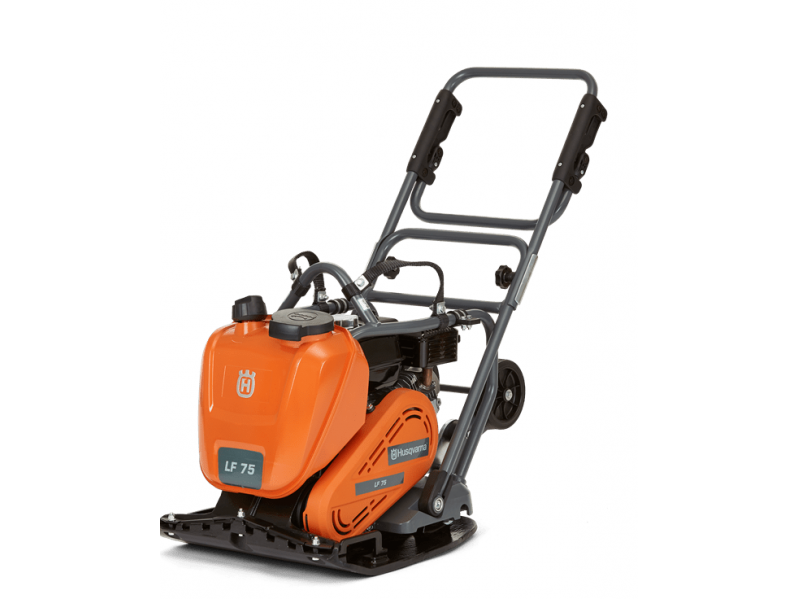

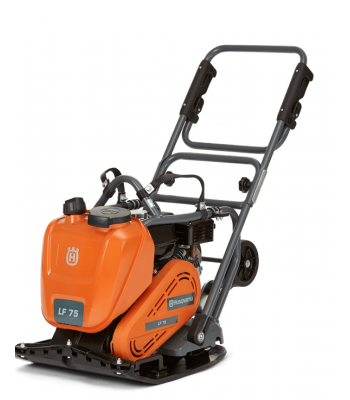

HUSQVARNA LF75LAT 420MM COMPACTOR PLATE HONDA GX160 ENGINE

LF 75 LAT is a fast-operating forward plate compactor, designed for efficient compaction of asphalt and soil. Ideal for repair jobs and maintenance work, such as driveways and parking lots. The large water tank features an oversized cap to enable less frequent and fast refills. It is easy to clean, leaves no marks on the pavement and uses whatever water is available on-site.

FEATURES

Hours of efficient work

The efficient, patented low-vibration handle lowers the vibration levels below 2 m/s², allowing you to work for hours without becoming fatigued or exceeding any regulatory threshold limit values.

Easy handling, excellent results

The watering system, that prevents the bottom plate from sticking to the hot asphalt, uses only a minimum of water thanks to the easily adjustable water flow.

More work with less water

The large corrosion-free water tank and smart water distribution system enable you to work longer with less stops for re-filling.

Easy to transport

Equipped with transport wheels for effortless transportation

Optimized for asphalt

The bottom plate is specially designed for asphalt work, ensuring it will not get stuck on hot asphalt or leave turning marks.

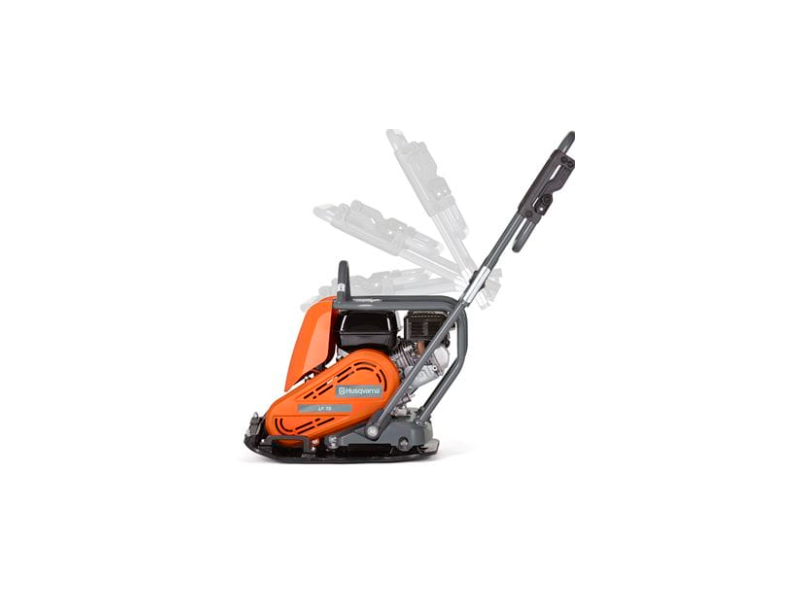

Saving storage space

The handle completely folds to save space, making transport and storage easy.

SPECIFICATIONS

Engine

Motor/engine model - GX160

Output power (As rated by the engine/motor manufacturer) - 3.6 kW

Exhaust emissions (CO2 EU V) - 757 g/kWh

Idling speed - 1400 rpm

Dimensions

Plate width - 420 mm

Weight - 95 kg

Speed forward max - 0.03 km/h

Speed - 27 m/min

Starter - Recoil

Centrifugal force - 15000 N

Sound and noise

Sound power level, guaranteed (LWA) - 105 dB(A)

Sound pressure level at operators ear - 103 dB(A)
