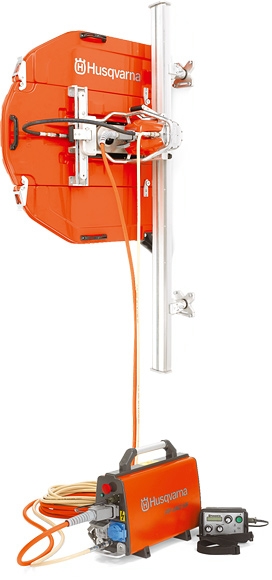

Husqvarna WS 440 HF High Frequency Electric

Part No: 966868304

The Husqvarna WS 440 HF electric wall saw sets a new standard, giving the operator increased possibilities for fast and efficient cutting. The adjustable speed with retained power allows the operator to find the ideal speed for each blade dimension, blade type and cutting material. This means that the diamonds cut with very high efficiency. This, combined with the capability to cut in both directions on each side of the track, as well as the possibility to choose rotation direction and control the water spray, makes the Husqvarna WS 440 HF unique. Moreover, it is user-friendly, ergonomic and easy to transport. The WS 440 HF is based on the same saw system as our hydraulic wall saws the WS 462 and WS 463, with modular design, quick connection and radial connection.

OTHER FEATURES

    * The smart and flexible universal mounting is a somewhat revolutionary accessory that saves energy and time. Because the mounting pivots when positioned on the wall, it is simple to reposition the track during cutting. The mounting also means you can easily carry out dovetail cutting and stair cutting at a variety of angles.
    * The universal mounting enables stair cutting.
    * With the universal mounting, dovetail cutting is possible.
    * Built on a modular system, the saws are easy to carry thanks to the optimised weight of each module. The weight is also evenly distributed between rail and saw head, because the carriage stays on the track.
    * 360 degree rotating arm allows the operator to saw at full depth the entire length of the track.
    * The powerful, water-cooled electric motor produces an impressive 13 kW to the spindle, even though the saw weighs just 25 kg.
    * The spindle speed is electrically adjustable and can be operated from the remote control.
    * Short distance between blade and track, for a straighter cut.
    * Slip clutch for all movable components.
    * From the remote control the blade direction can be chosen and the direction of the water spray can be controlled.
    * Equipped with automatic blade brake that stops the blade within seconds.
    * Supplied with 4 wall mounting brackets, track coupling, oil, blade guard, connectable track with saw trolley, tool kit, track holder and blade guard guide.

TECHNICAL DATA

Engine

Max spindle output   13 kW / 17.4 hp(I)

Carriage and track

Weight saw carriage   25 kg / 0 lbs

Cutting equipment

Blade diameter range, min-max    600-1200 mm / 23.62-47.24 "
Max cutting depth    530 mm / 20.87 inch
Max starter blade    1000 mm / 39.37 inch

Misc specs

Weight saw head, kg   24.5
