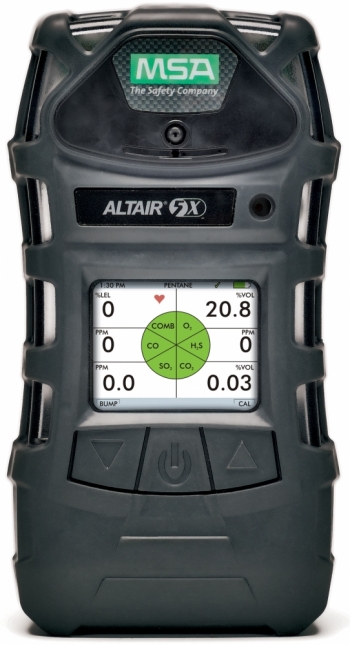

MSA ALTAIR 5X Portable Gas Detector
Comes complete with rechargeable battery pack, charging cradle, calibration cap tubing.
Detectable Gases (select from the drop down above)
10120206 - MONO, LEL PEN, O2, CO, H2S
10120207 - MONO, CH4(4.4), O2, CO, H2S
10120208 - COLOUR, LEL PEN, O2, CO, H2S, 0-10% CO2
10120209 - MONO, LEL PEN, O2, C), H2S, 0-10% CO2
10120210 - COLOUR, LEL PEN, O2, CO, H2S, 0-10% CO2, GLOW
10119658 - COLOUR, LEL PEN, O2, CO, H2S, 0-100% VOL CH4
10119659 - COLOUR, LEL PEN, O2, CO, H2S, SO2, 0-100% CH4
10119660 - COLOUR, LEL PEN, O2, CO, H2S, NH3, 0-100% CH4
10119661 - COLOUR, LEL PEN, O2, CO, H2S, CL2
10119662 - COLOUR, LEL PEN, O2, CO, H2S, SO2
10119663 - COLOUR, LEL PEN, O2, CO, H2S, NO2
10119664 - COLOUR, LEL PEN, O2, CO, H2S, NH3
10120231 - MONO, LEL PEN, O2, CO, H2S, 0-10% CO2, GLOW
Description
The ALTAIR 5X can measure up to six gases simultaneously and can be fitted with a wide range of both toxic and infra-red sensors, providing the flexibility required to meet most applications.
At the heart of the ALTAIR 5X are MSA’s XCell sensors, now with an extended range covering SO2, Cl2, and NH3. Superior stability, accuracy, repeatability, fast response and longevity characterize the new MSA XCell sensors. They are remarkably long-lasting and the standard sensors are designed for an average life of more than four years (more than three years for SO2, Cl2, and NH3) These new sensors allow for faster response/clear times, bump tests in less than 10 seconds, and span calibration time of 60 seconds for common configurations, thanks to micro-electronics inside the sensor.
XCell Sensors provide greater signal stability and repeatability under changing or extreme environmental conditions and are plug-and-play-capable. An end-of-sensor-life indicator gives advanced warning to user, eliminating service outages.
Features & Benefits
- MSA XCell Sensors:
- New exotic SO2, Cl2, and NH3 sensors for expanded monitoring applications
- Sensor response and clear times under 15 seconds for most common sensor configurations
- Bump test in less than 15 seconds for most common sensor configurations
- Span calibration time of 60 seconds for most common sensor configurations
- Greater signal stability and repeatability under changing or extreme environmental conditions
- All XCell Sensors are capable of plug-and-play capabilities for easy reconfiguration
- Typical life greater than four years for combustible, O2, and CO/H2S sensors
- Proprietary operating mode of the combustible sensor helps it stand up to poisons over the life of the sensor
- End-of-sensor-life warning gives advanced notice to user, reducing service outage
- MotionAlert feature: Triggers an alarm if the user remains motionless for 20 seconds, indicating possible "man down"
- InstantAlert feature: Allows users to manually activate all alarms to alert others to a potentially hazardous situation
- Triple alarm system: Clear visual, audible and vibration alarm notification
- Large LCD: Clear, easy and concise readings at a glance
- 24 hour bump-test checkmark: Confirms the detector recently passed a gas response check
- Rugged rubberised housing: Withstands 3 m drop
- IP R65 rated by third party: Resists water and dust ingress
- Li-polymer battery: Optimum usage time (18 hrs) with minimum charging time means you can buy fewer instruments to cover long shifts
- Glow-in-the-dark case (optional): Allows high visibility, increasing the safety at confined spaces, mining and other dark environments
- QuickCheck Test Station compatible: Allows automatic bump testing of unit with a simple PASS or FAIL indication, helping to reduce human error. All test records are stored and can be retrieved as needed using MSA Link Software
- MSA Link Software-compatible: When connected to MSA Link Software, all stored records can be accessed. Print capability for calibration reports, alarm set point changes etc. is offered in multiple languages
- Event log/data log: Records up to 500 events for a quick overview of calibration records and alarms. If more details are required, a full data log can be assessed
- Ergonomic design with large rubberised buttons: Ensures easy operation, even with gloves
- MSA XCell Sensors: Lower cost of ownership due to less gas required (faster calibration and bump check times) and longer sensor life 3-year standard warranty (up to 4 years, optional
- GALAXY System compatible: Allows for automatic testing, calibration, and recordkeeping for up to 10 units simultaneously, helping to reduce human error
- Auto calibration: Saves time and calibration gas by calibrating all sensors simultaneously
Applications
- Agriculture
- Authorities
- Chemical CO-monitoring in iron and steel production
- Construction
- Detection in waste water plants
- Detection of solvents (e.g. degreasing)
- Ex-leakage detection of chemical plants
- Fire Fighting
- Food Processes
- Foundries & Metal Production
- Hazardous material storage
- Hazardous Materials
- Industrial environments
- Leakage detection gas pumping stations Gas turbines
- Leakage detection liquid gas (stocks, distributor, consumers, processors)
- Leakage detection of foaming machines
- Mining
- Monitoring in automobile industry
- Monitoring in Biodiesel production plants
- Monitoring in Biofuel and Ethanol plants
- Monitoring in coal plants
- Monitoring in Hydrogen plants
- Monitoring in laboratories
- Monitoring in LNG and LPG Gasificators
- Monitoring in LNG terminals
- Monitoring in power plants
- Monitoring in printing industries
- Monitoring in waste disposal site
- Monitoring of disposal sorting systems
- NO2 monitoring in shipping garages and workplaces
- Oil & Gas
- Pharmaceuticals
- Spray Painting
- Testing & Calibration
- Waste & Water Treatment
Hazards
- Chemical Splash
- CO or NO2 intoxication
- Combustible Atmosphere
- Confined Space
- Ex
- Fire
- Flame
- Ox
- Oxygen Deficiency
- Smoke
- Tox
- Toxic Atmosphere (IDLH)
- Toxic Atmosphere (Non-IDLH)
Approvals & Standards
- United States: UL Class I, Div. 1, Groups A,B, C&D Tamb=-40°C to +54°C UL Class II, Div.1, Groups E,F&G Class III, Div. 1 Tamb=-40°C to +54°C; T4
- Canada: CSA Class I, Div. 1, Groups A,B,C&D CAN/CSA C22.2 152; 12.13.01-2000 UL Class II, Div.1, Groups E,F&G Class III, Div. 1 Tamb=-40°C to +54°C; T4
- ATEX: II 1G Ex ia IIC T4, -40°C to +60°C, IP67 (Zone 0 with no combustible sensor installed) II 2G Ex ia d IIC T4, -40°C to +60°C, IP67 (Zone 1 with combustible sensor installed)
- IEC: Ex ia IIC T4, -40°C to +60°C (Zone 0 with no combustible sensor installed) Ex ia d IIC T4, -40°C to +60°C (Zone 1 with combustible sensor installed
- Australia / New Zealand: Ex ia s IIC T4, -40°C to +60°C, IP67 (Zone 0)>
