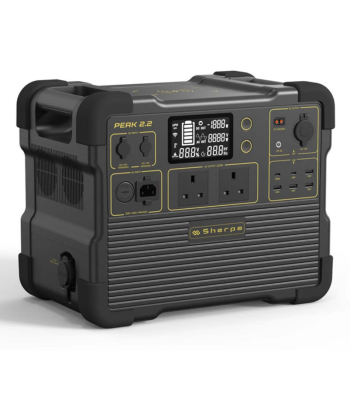

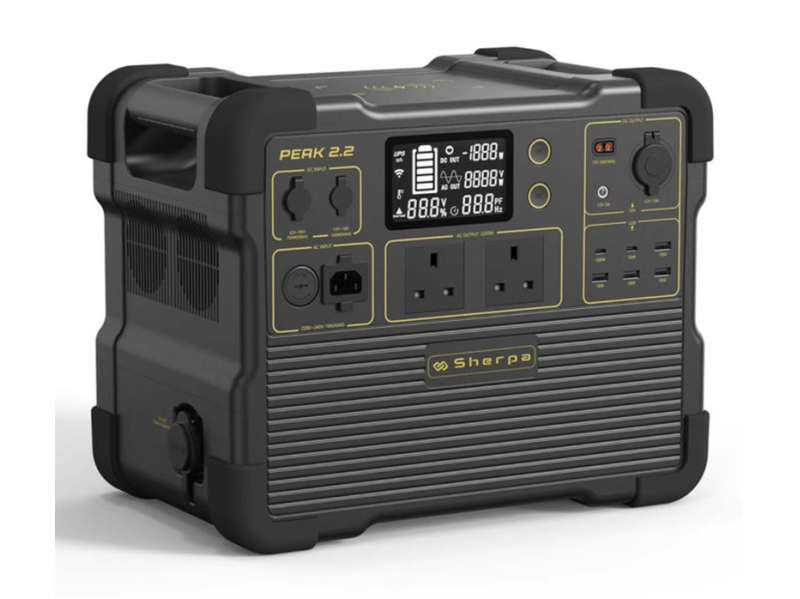

Sherpa SP-PE15PE22 PEAK 2.2KW Portable Power Station 1536Wh

The PEAK 2.2 is a user-friendly, robust, and lightweight Portable Power Station, designed to revolutionise power accessibility. Equipped to accept solar and hybrid renewable inputs, you can keep it on charge while delivering clean, smooth power to your essential appliances. Crafted with durability and portability in mind, the PEAK 2.2 is built to withstand both recreational and professional use. The sturdy handle provides comfortable portability, while the rugged exterior and solid construction protect the unit from certain impacts and scratches. It also features wireless charging and all output and input ports on the front panel for easy access.

Battery information

The PEAK 2.2 Portable Power Station incorporates an automotive grade, high-quality lithium iron phosphate battery (LiFePO4), which can be cycled 3500 times before its original capacity is reduced to 80%. Having a capacity of 1536Wh, expandable up to 7680Wh by linking two PEAK 3.0-EB extra batteries, the PEAK 2.2 boasts a significant energy reserve, offering uninterrupted power supply for extended periods. Its in-build power management means you can simultaneously charge by multiple sources while using your connected devices. With safety in mind, the PEAK 2.2 Battery Management System (BMS) has multiple protection features built-in, to prevent overheating,overload, and short-circuit. These limit excessive power draw, overcharge and deep discharge to preserve the longevity of the battery. With short circuit protection and temperature control, you can confidently use this Power Station, knowing that your safety is taken care of. The PEAK 2.2 is equipped with a pure sine wave inverter, capable of powering appliances and devices in situations where there is no access to mains power. It has an Uninterruptible Power Supply function, allowing your appliances to use grid power via the unit and switch over to battery power in 8-20 milliseconds in case of a power cut.

Output

Boasting 12 power output ports, the PEAK 2.2 enables you to charge and power multiple devices simultaneously: AC OUTPUT: AC Sockets x 2 (220V-240V/50Hz) perfect for running high-power mains appliances DC OUTPUT: The panels comprise multiple smart-charge ports that self-regulate the power your devices need: USB-A Port x 4, USB-C Port x 2, DC 5525 Port x 1, Wireless Charging Pad, Aux Car Port x 1 and XT60 Output x 1, allowing you to charge and power smartphones, tablets, cameras, laptops, car accessories, outdoor electronics, and other devices with DC power inputs.

Charging

The PEAK 2.2 offers advanced charging capabilities, providing flexible options to recharge the unit quickly: AC Charging: approximately 1.8 hours from 0% to 100% state of charge from a standard wall outlet. Solar and hybrid Renewable Charging: approximately 2.5h from 0% to 100% at maximum input. The high-efficiency MPPT charge controller converts solar, wind (DC), or hydroelectric (DC) input, allowing you to go completely off-grid and enjoy the planet’s free energy.

Onboard Charging: approximately 18 hours from 0% to 100% charge using your vehicle’s 12V socket while travelling around. Sherpa Power also offers a faster method via the Charge-500 Smart Charger (sold separately) that can charge the PEAK 2.2 in only 3.5 hours while the vehicle is running, making the PEAK 2.2 a viable onboard power solution.

General Information

The PEAK 2.2 features an intuitive LCD screen that provides real-time information about battery level, power input/output, and charging status. This clear and easy-to-read display ensures you have full visibility of the unit’s performance, allowing you to manage your energy effectively. The PEAK 2.2 is also APP compatible (Wonderfree app) via Bluetooth or Wi-Fi (available for Apple & Android devices), so you can even monitor and control your power station remotely.

The PEAK 2.2 has an IP rating of 20, it is shockproof and built with fireproof materials.

The PEAK 2.2 has a standard 5-year Warranty for peace of mind and 10-plus years lifespan.

Applications

Leisure and Hobby (campervan, camping, glamping, fishing, off-grid events, photography, marine) Professional Use (onboard power solution for commercial vehicles, DIY, skilled trades, film industry, contractors, medical equipment) Home Back-up Solution (fridge, freezer, TV, devices, Wi-Fi, microwave, washing machine, air fryer)

Battery Info

• Capacity: 1536 Wh (Depth Of Discharge 85%)
• Chemistry: LiFePO₄ (Lithium Iron Phosphate)
• Life Cycles: 3,500+ Cycles to 80% Original Capacity
• Shelf-life: Discharge the battery to 30% every three months and recharge it to 60%
• Management System: MPPT Controller, BMS
• Protection: Over-voltage, Low-voltage, Overheat, Overload, Short-circuit, Self-recovery
• Discharging Temperature: -20°C~45°C/-4°F~113°F
• Charging Temperature: 0°C~45°C/32°F~113°F
• Storage Temperature: 20-30°C/68°F~86°F

AC Output

• Output Power: 2200W
• Surge: 4400W for <1s
• Outlets: AC Sockets: 1 × 220V-240V/50Hz

DC Output

• USB-A Port: 4 x (5V,9V,12V, Max 18W) Shared
• USB-C Port: 2 x (5V,9V,12V,20V, Max 18W and 100W) Shared
• DC 5525 Output Port: 1 x (12V-5A)
• DC XT60 Output Port: 1 x DC 12V-30A
• Wireless Charging Pad: 1 x 15W Max
• Aux Car Port: 1 x DC 12V-10A

AC Input

• AC Input Power: 1400W Max
• AC Inlet: 1 x AC 220V-240V

DC Input

• DC Input Power: 700W Max
• DC Inlet: DC GX16MF Input Port x 1 DC Charging (32V-95V, 700W Max, 15A Max)

Recharge Times (0-100%)

• AC Input: 1.8 hours
• Solar / DC Input: 2.5 hours
• Vehicle Charger (fast): 3.5 hours
• Vehicle Charger (slow): 18 hours

General

• IP Rating: 20
• UPS Function: 8-20ms
• APP Compatible: Bluetooth/Wi-Fi
• Expandable Capacity: Yes (with up to 2 x Sherpa Peak 3.0-EB > 7680Wh)
• Warranty: 5-year Standard Warranty
• Inverter: Pure Sine Wave
• Other Features: Shockproof

Technical Specifications:
