Simpsons Strong Tie Kneewall Connector - RCKW - per 10

The Simpson Strong-Tie® RCKW is a heavy duty rigid connector that has been developed to resist an overturning moment at the base of exterior kneewalls and parapets as well as interior partial height walls or overhead ribbon window conditions.

Features

The RCKW is a 1 or 2 part connector designed to resist an over-turning moment at the base of exterior knee-walls and parapets as well as interior partial height walls.

These connectors offer a unique large and small anchorage hole pattern that permits anchorage into both hot rolled steel and concrete.

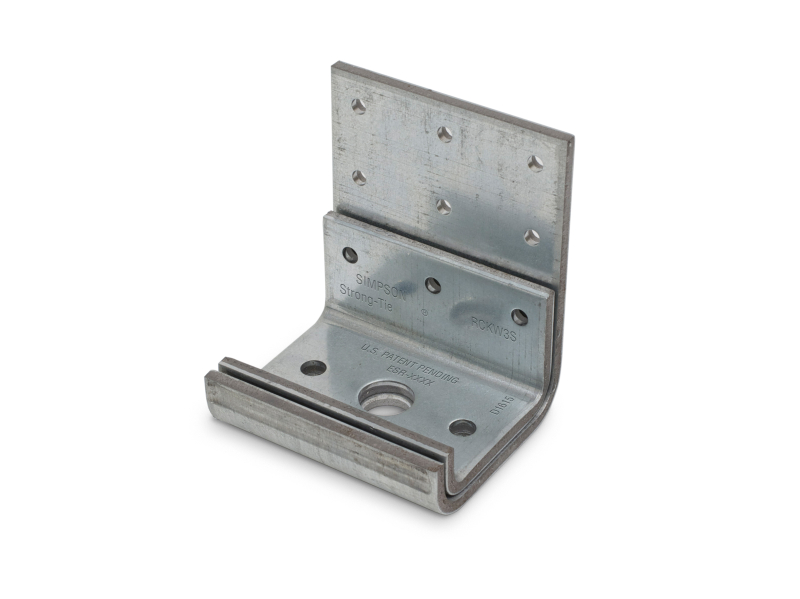

If more rigidity is required, a stiffener (the RCKWS) can be added to nest into the RCKW clip; the screw and anchor holes line up making installation simple, with no need for pre drilling. The RCKW and the RCKWS are sold separately.

Key Features include:

• Anchorage legs incorporate stifened flanges, improving over-turning moment resistance
• Large diameter anchor holes accommodate 12 mm diamter fixings (LMAS stud with AT-HP Resin)
• Additional smaller diameter anchor holes allow for the attachment to hot rolled steel with X1224D540 self-drilling screws.

Material

Galvanised Mild Steel:  275 g/m2

Sizes Available

• RCKW3S-R10 - CFS STIFFENER 1.5 X 2 X 3, 7GA 10 PAK
• RCKW3-R10 - CFS CLIP 3.5 X 2.25 X 3, 7 GA 10PAK
• RCKW5.5-R10 - CFS CLIP 3.5 X 2.25 X 5.5, 7 GA 10PAK
• RCKW7.5-R10 - CFS CLIP 3.5 X 2.25 X 7.5, 7GA 10PAK
