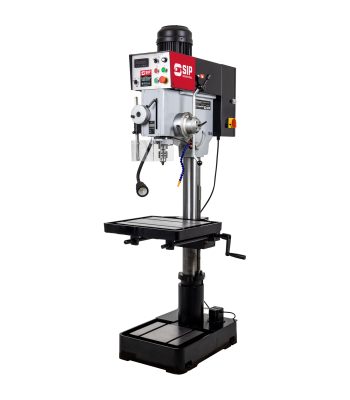

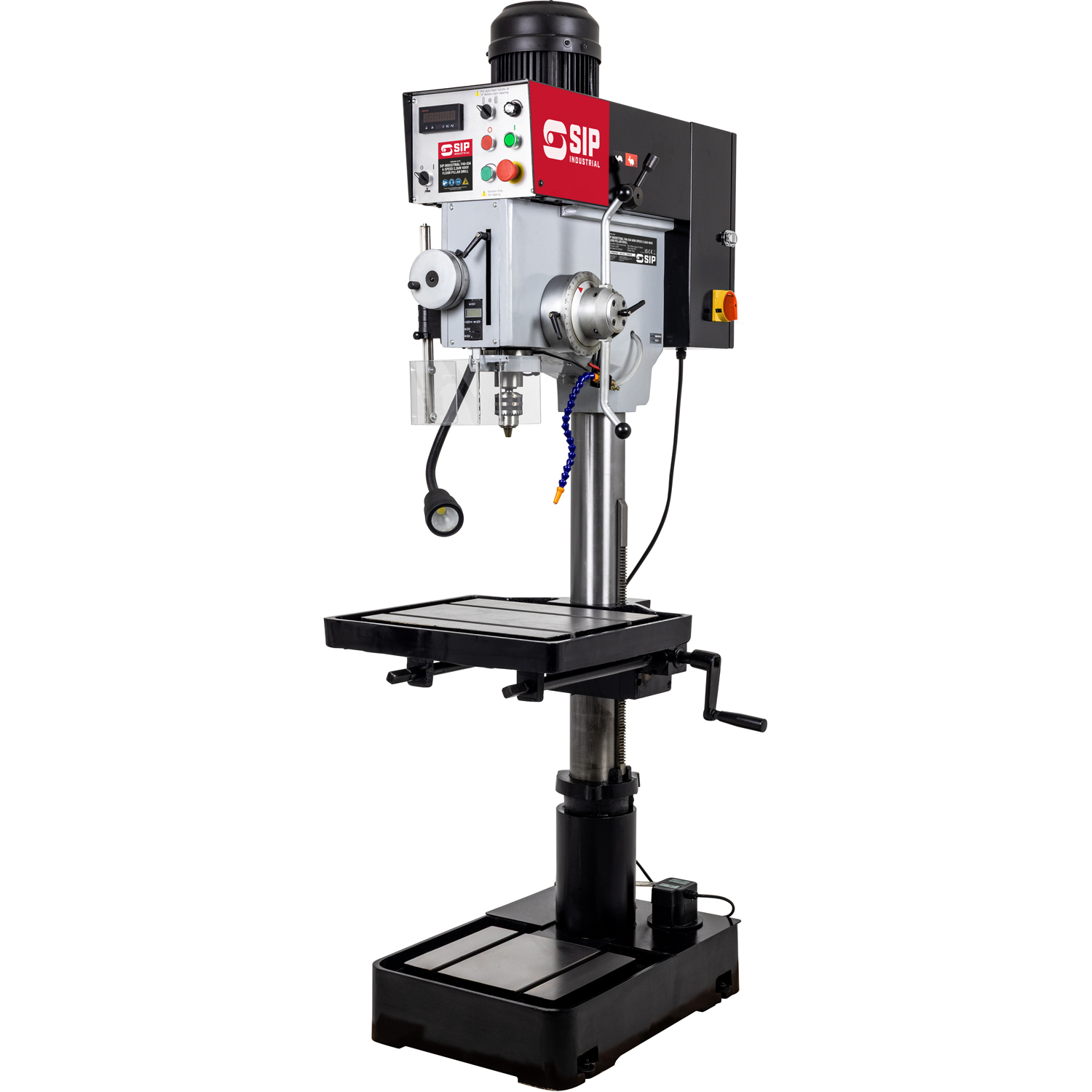

SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill - Code 01721

The SIP Industrial F40-IDA 2.2kW 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.

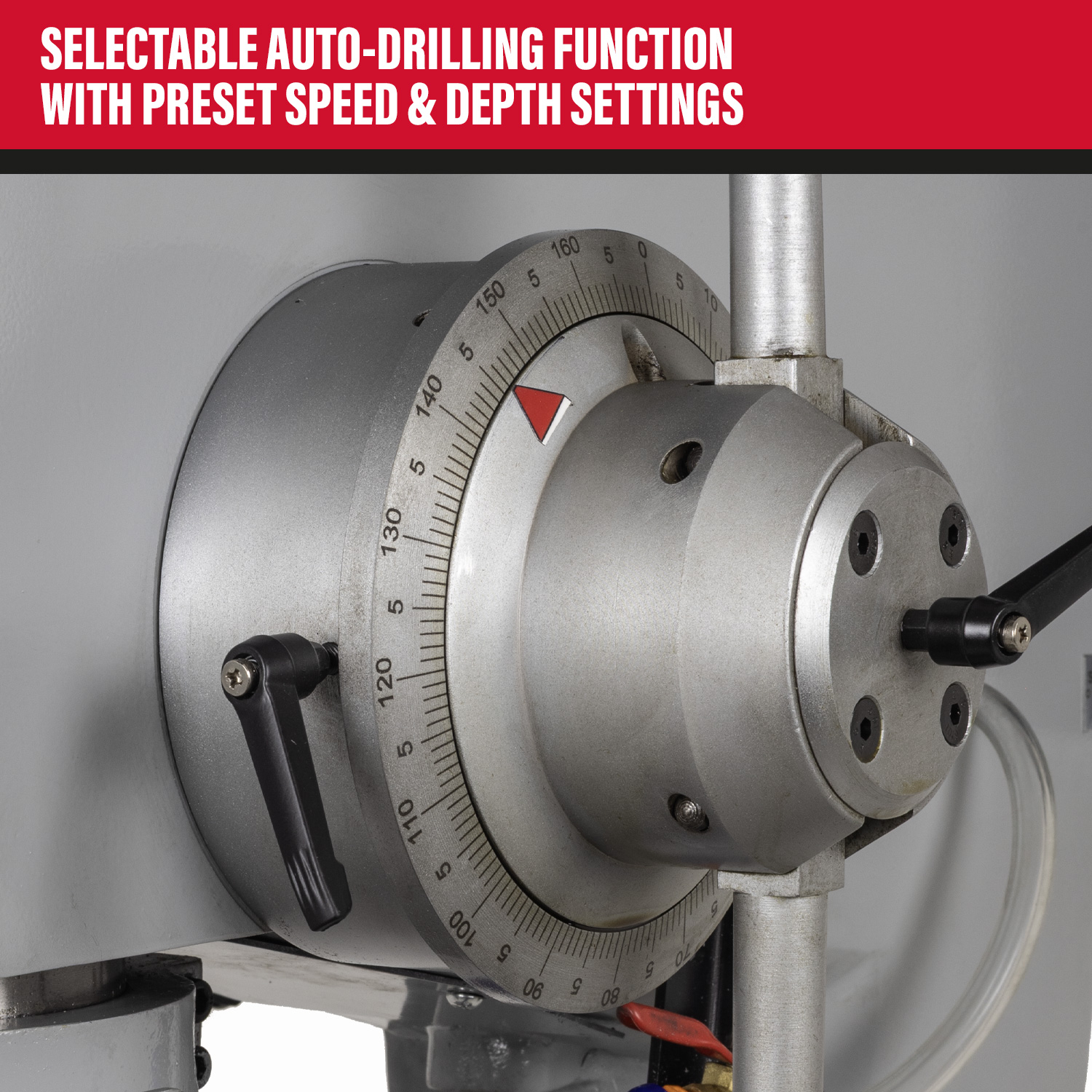

Featuring a variable frequency drive inverter transmission, the drill delivers high torque output across a consistent 65rpm to 2000rpm spindle speed for powerful and precise drilling of up to max. ⌀ 40mm. An integrated auto-drilling function also increases workshop efficiency, particularly during repetitive tasks.

Engineered for demanding production environments, this adjustable and heavy-duty drill also features enhanced safety features to protect operators.

Applications & uses: Designed for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures.

What's in the box?: 1x SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 4), 1x drill drift, 1x chuck key, 1x, cranking handle, 1x Y-type socket wrench and 2x handles for headstock and table.

SIP 2-Year Standard Silver Warranty* |

VARIABLE FREQUENCY DRIVE INVERTER TRANSMISSION ENSURES ALL POWER IS TRANSFERRED FROM MOTOR TO SPINDLE FOR HIGH TORQUE DRILLING

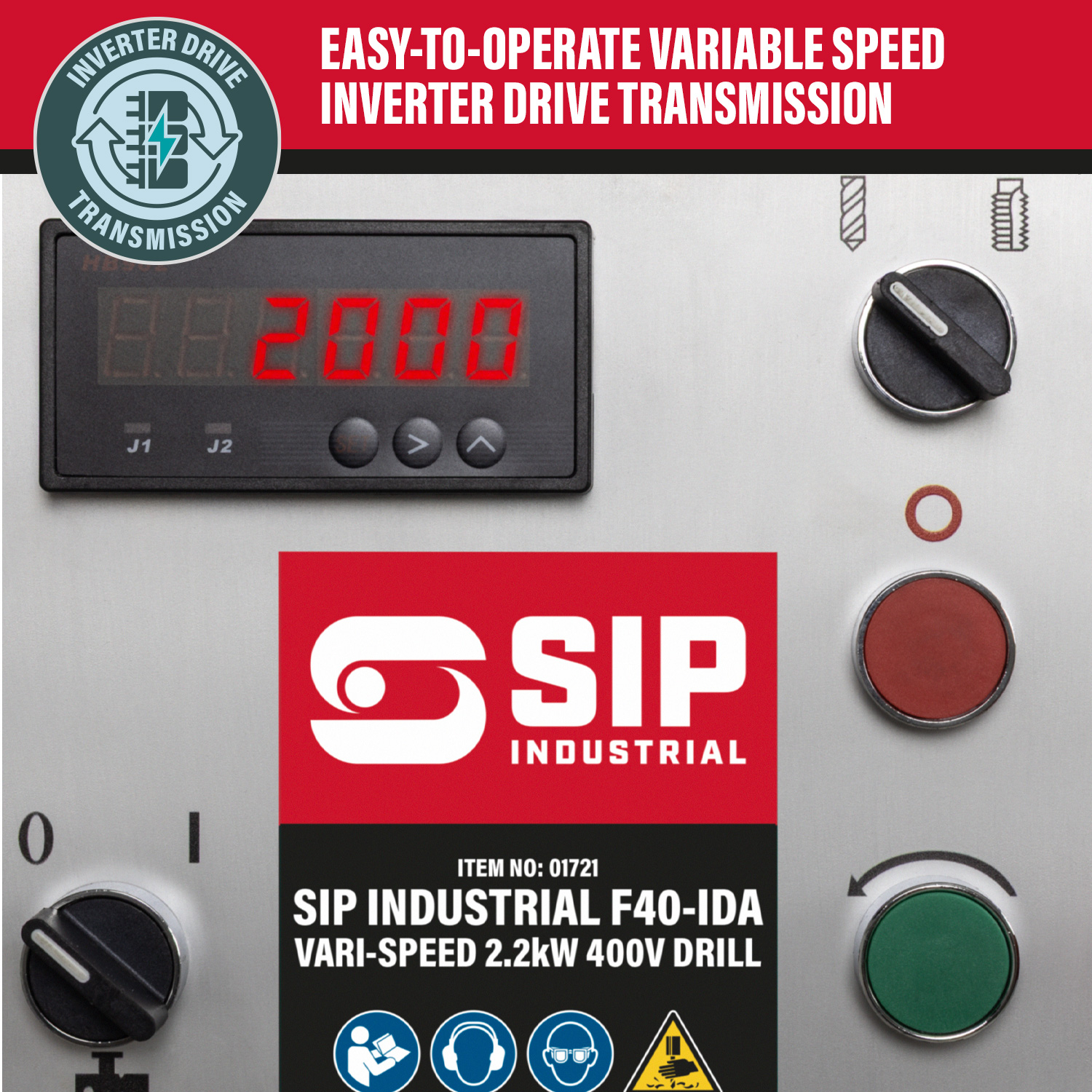

• Easy-to-operate infinitely variable dial on the headstock allows users full control of the 65rpm - 2000rpm drilling speed, meaning spindle speed can be set to suit the material.
• Inverter drive transmission eliminates manual pulley speed changes, allowing quicker job set-up and changeovers. This helps to reduce downtime and boosts productivity.

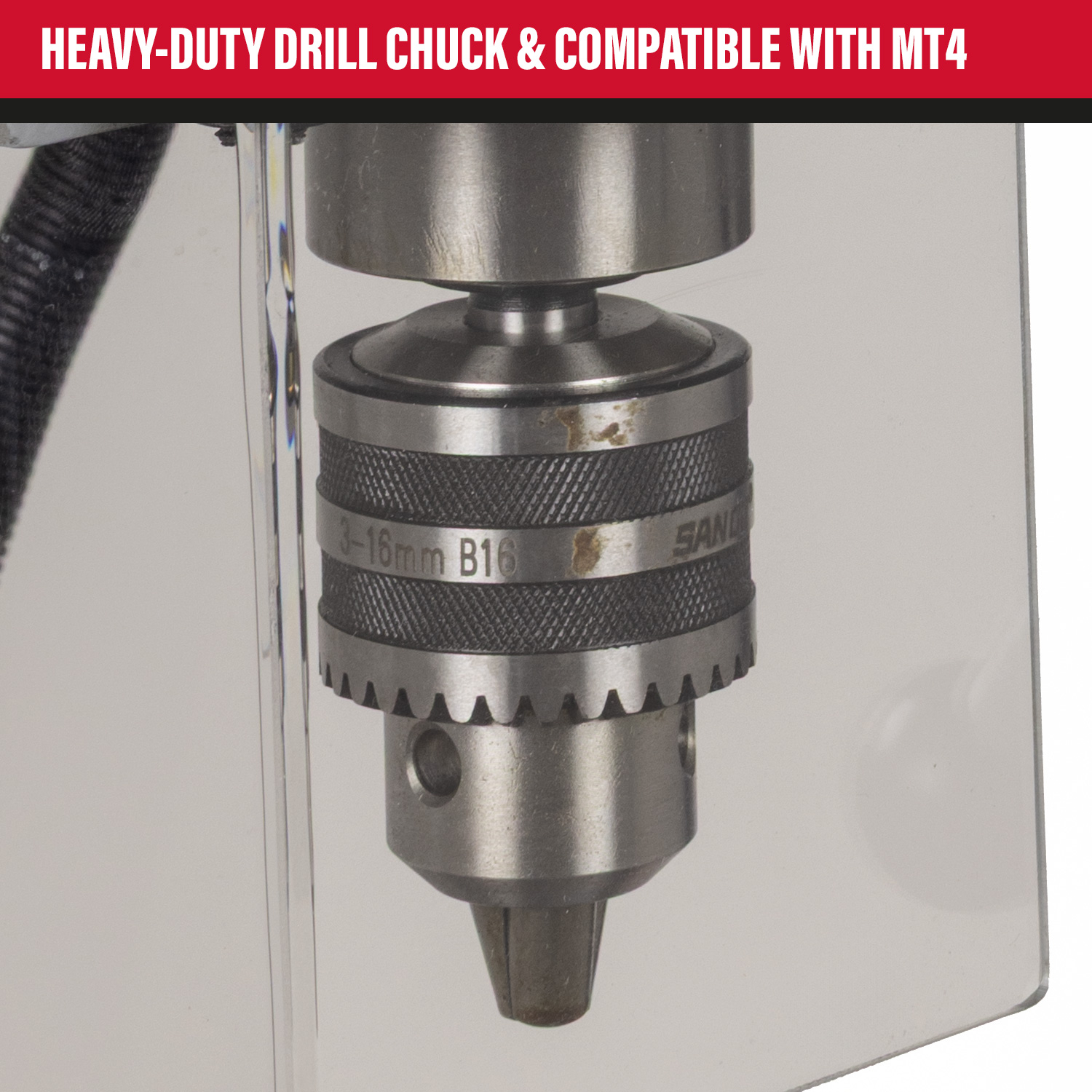

• Heavy-duty configuration with robust drill chuck and MT4 (Morse Taper 4) will withstand forces and vibration of professional drilling and maintain operator safety.
• Tapping functionality produces high-quality screw threads up to ⌀ 25mm, ensuring strong and reliable connection for fasteners that won't crossthread.

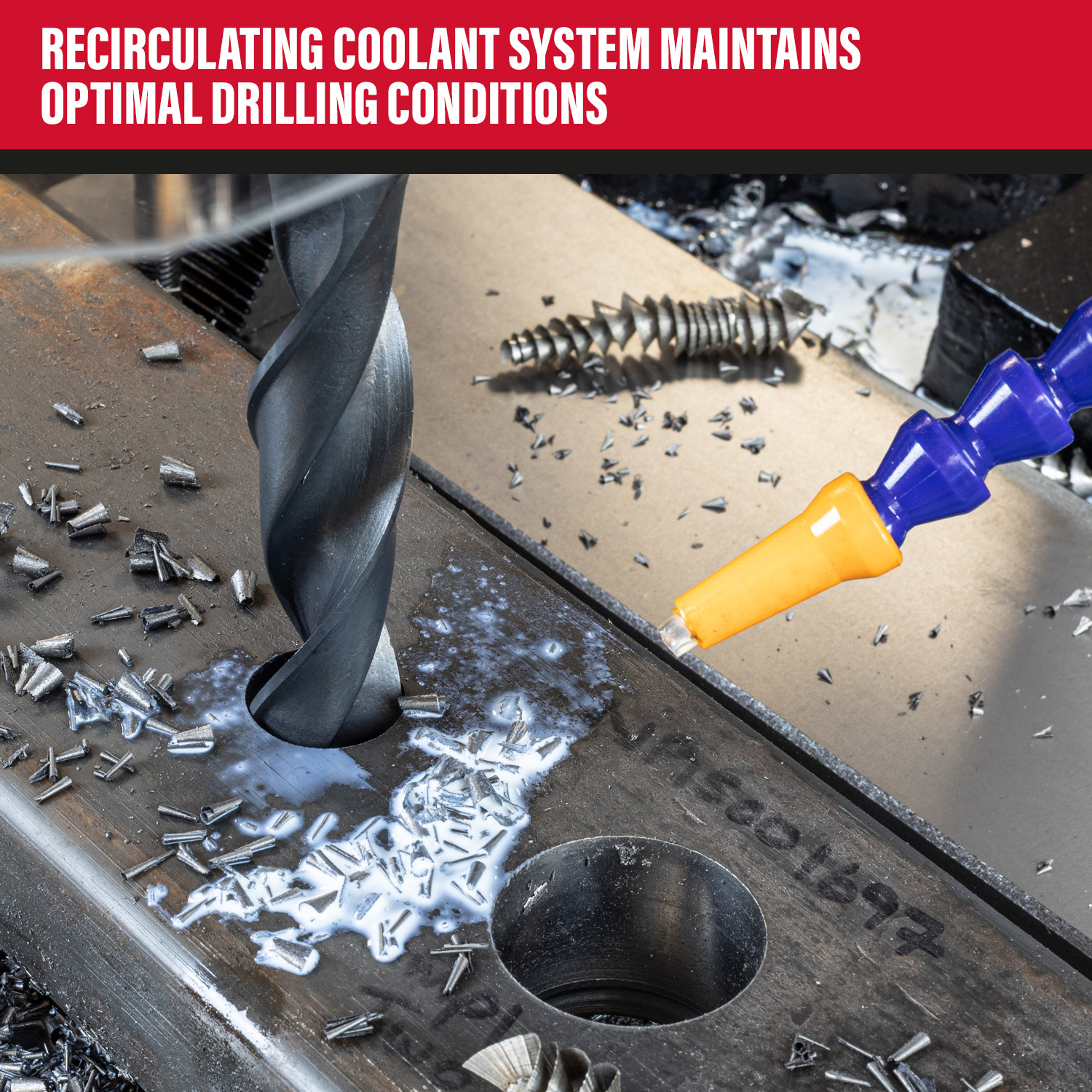

• Recirculating coolant system maintains optimal conditions by reducing heat generated in the workpiece and prevents the drill dulling or breaking.
• A depth stop is fitted to eliminate guesswork and ensures consistent holes of the same depth during repetitive drilling tasks.

HEAVY-DUTY COMPONENTS IDEAL FOR CONTINUOUS USE IN PRODUCTION & ASSEMBLY ENVIRONMENTS

• Thick central column and heavy baseplate minimise vibration for maintaining stability and accuracy. The baseplate should be anchored to the floor.
• A large height-adjustable drill press table offers versatility when handling different thicknesses and heights. It rotates left to right for added clearance for longer workpieces.
• The base drill table also enables drilling of taller workpieces, assemblies and fabrications.
• The height-adjustable drill head also offers further flexibility and helps users reach optimal height.
• Chrome steel drill feed handle ensures operators can safely control the descent of the drill bit.

INTEGRATED ENHANCED SAFETY FEATURES DESIGNED TO ACTIVELY PROTECT OPERATORS FOR SECURE WORKING ENVIRONMENT

• For added safety, a protective chuck guard shields users from swarf and debris. It also disables the drill when opened.
• A low voltage (24v) control circuit minimises electric shock which limits harm to machine operators.
• An interlocking safety switch prevents the drill from running when headstock covers are opened.

COMPATIBLE WITH SIP PILLAR DRILL MACHINE VICES & DRILLING FLUID

• SIP Machine Vices help to secure workpieces for additional accuracy (01727, 01728, 01729, 01730, 01731).
• Use of SIP Water Soluble Cutting & Drilling Fluid is recommended with this drill. (01744, 01745).

Technical Information
