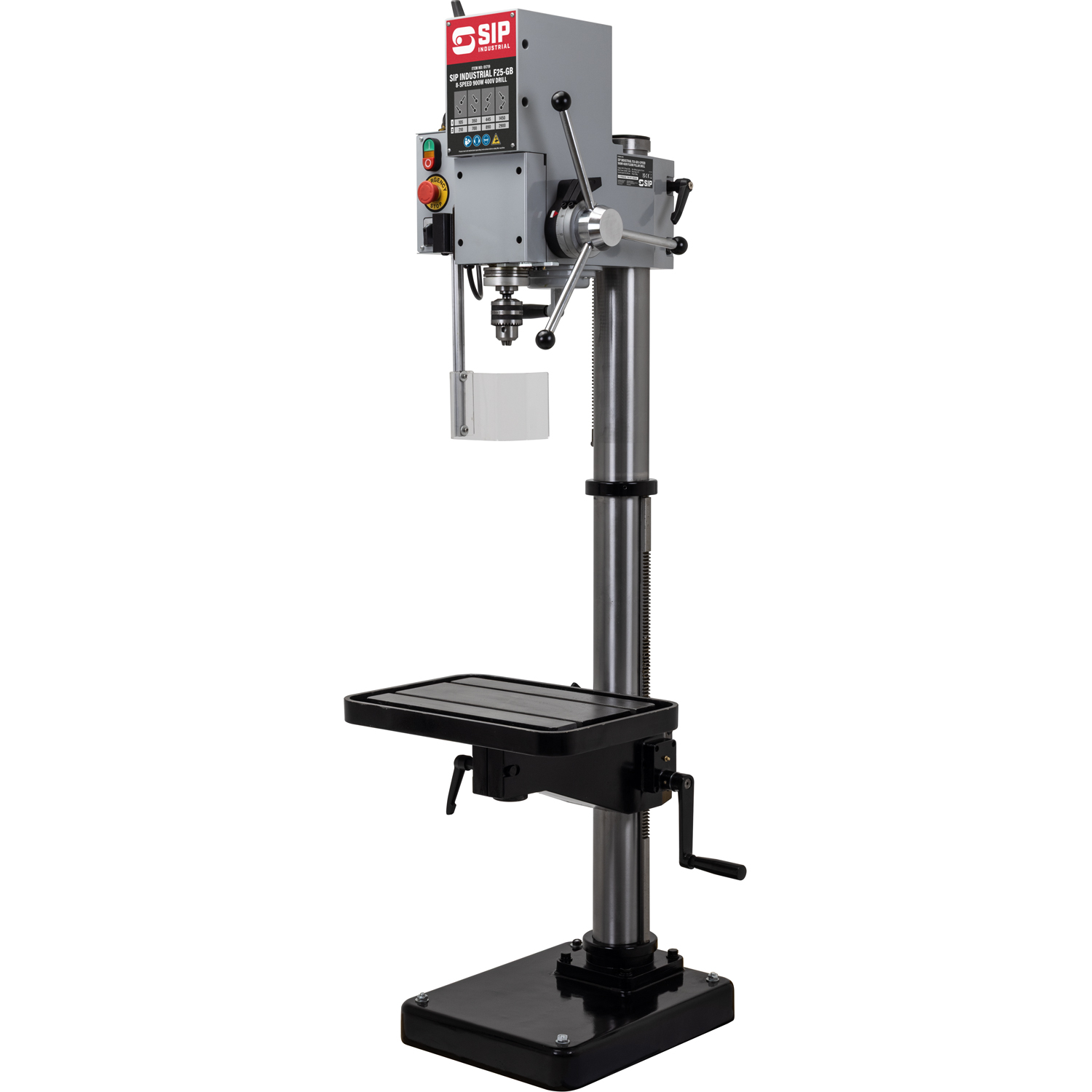

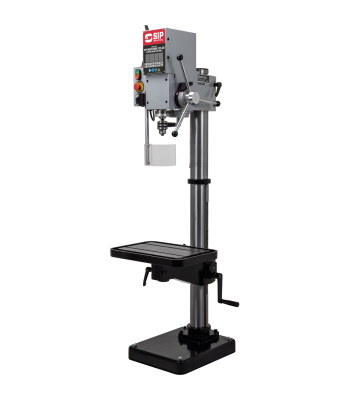

SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill - Code 01719

The SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.

Featuring an 8-speed gear drive transmission, this drill delivers high torque output across a consistent spindle speed of 105rpm - 2900rpm for powerful and precise drilling up to ⌀ 25mm. This allows the operator to set the exact spindle speed needed to drill the material.

A gear drive transmission eliminates belt slippage as no manual pulley speed adjustments are required, meaning quicker and easier speed changes for reduced downtime and increased productivity.

Applications & uses: Designed for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures.

What's in the box?: 1x SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 3), 1x drill drift, 1x chuck key, 1x Y-type socket wrench and 2x handles for headstock and table.

SIP 2-Year Standard Silver Warranty* |

8-SPEED GEAR DRIVE TRANSMISSION ENSURES ALL POWER IS TRANSFERRED FROM MOTOR TO SPINDLE FOR HIGH TORQUE DRILLING

• Easy-to-operate levers on the headstock allow users full control of the 105rpm to 2900rpm drilling speed, meaning spindle speed can be set to suit the material.
• Gear drive transmission eliminates manual pulley speed changes, allowing quicker job set-up and changeovers. This helps to reduce downtime and boosts productivity.

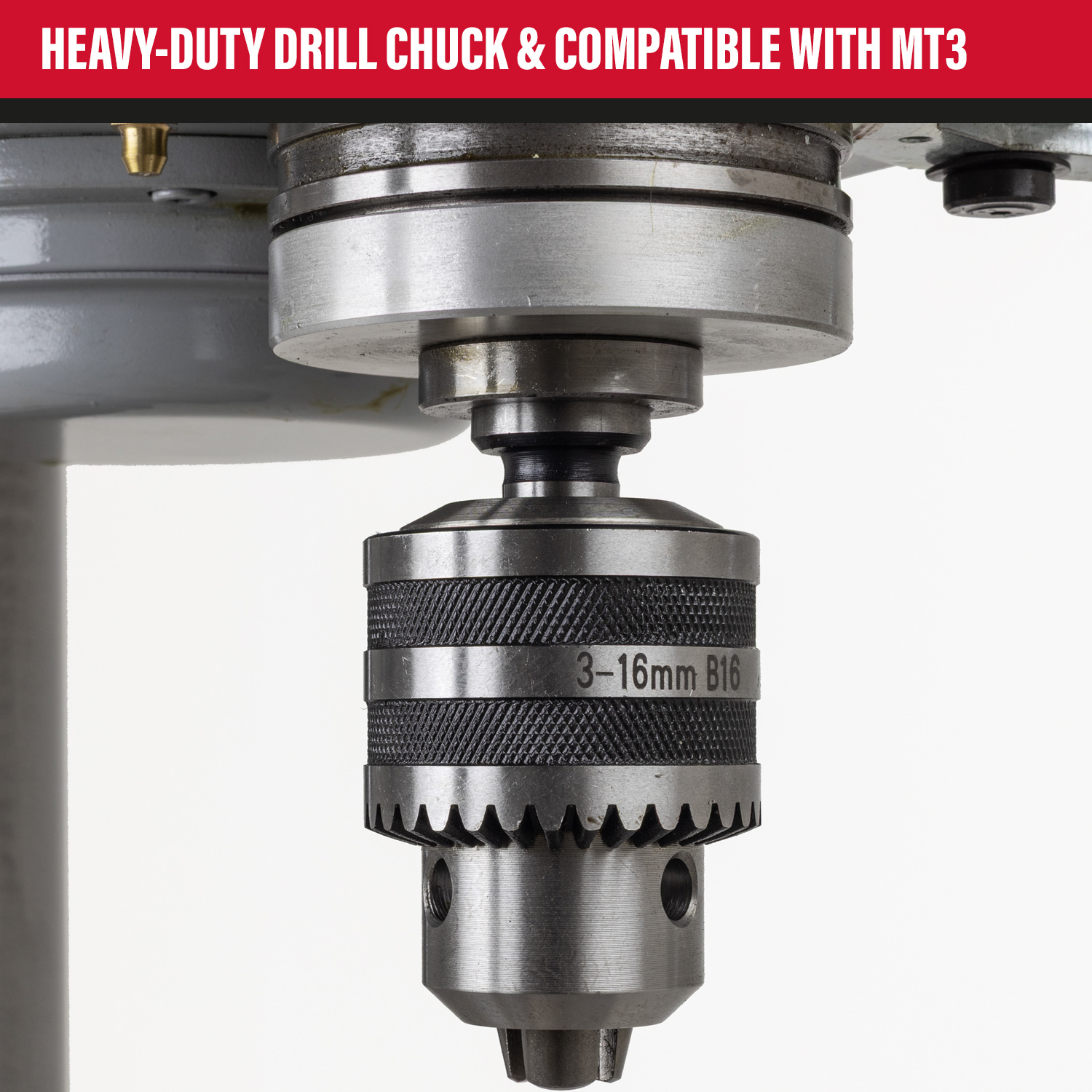

• Heavy-duty configuration with robust drill chuck and MT3 (Morse Taper 3) will withstand forces and vibration of professional drilling and maintain operator safety.
• A depth stop is fitted to eliminate guesswork and ensures consistent holes of the same depth during repetitive drilling tasks.

HEAVY-DUTY COMPONENTS IDEAL FOR CONTINUOUS USE IN PRODUCTION & ASSEMBLY ENVIRONMENTS

• Thick central column and heavy baseplate help minimise vibration for maintaining stability and accuracy. The baseplate should be anchored to the floor.

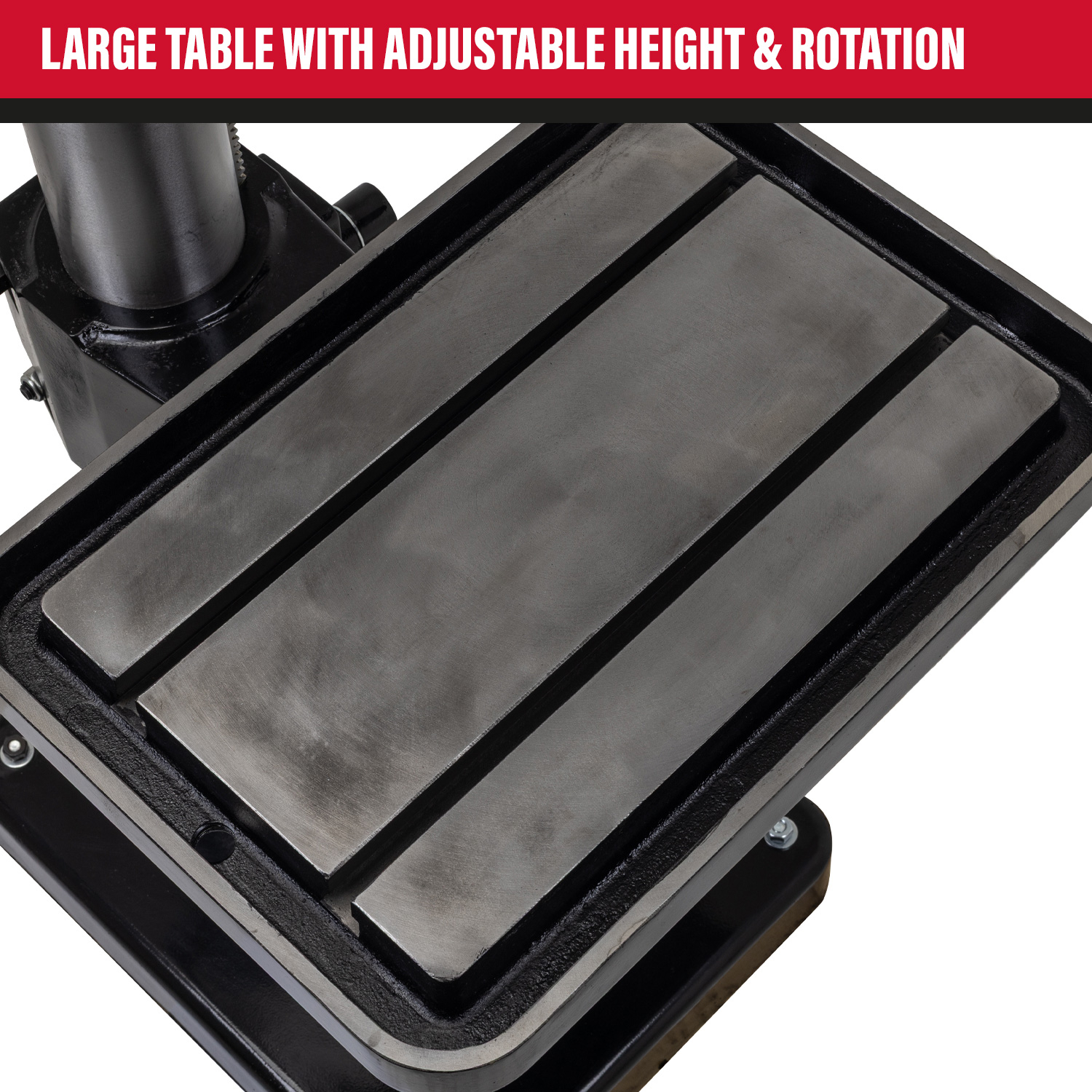

• A large height-adjustable drill press table offers versatility when handling different thicknesses and heights. It rotates left to right for added clearance for longer workpieces.
• The height-adjustable drill head also offers further flexibility and helps users reach optimal height.

INTEGRATED ENHANCED SAFETY FEATURES DESIGNED TO ACTIVELY PROTECT OPERATORS FOR SECURE WORKING ENVIRONMENT

• For added safety, a protective chuck guard shields users from swarf and debris. It also disables the drill when opened.
• A low voltage (24v) control circuit minimises electric shock which limits harm to machine operators.
• An interlocking safety switch prevents the drill from running when headstock covers are opened.

COMPATIBLE WITH SIP PILLAR DRILL MACHINE VICES

• SIP Machine Vices help to secure workpieces for additional accuracy (01727, 01728, 01729, 01730, 01731).

Technical Information
