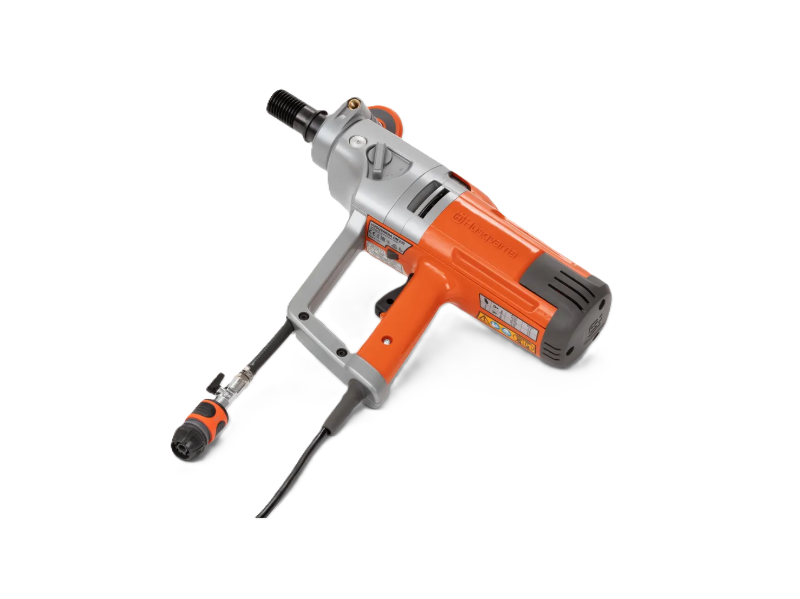

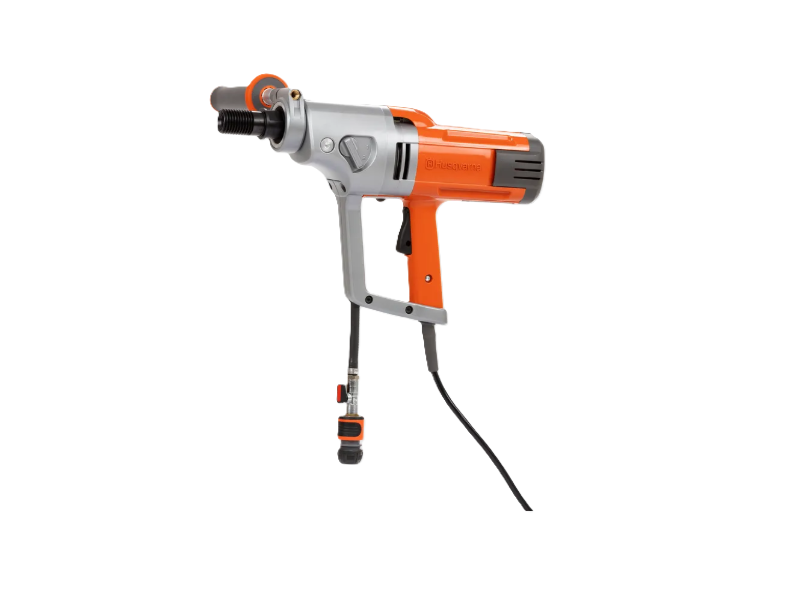

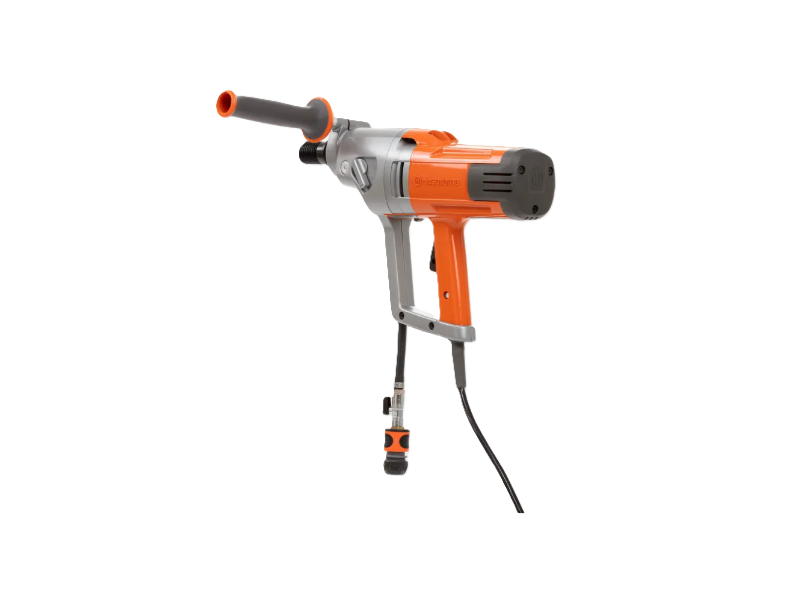

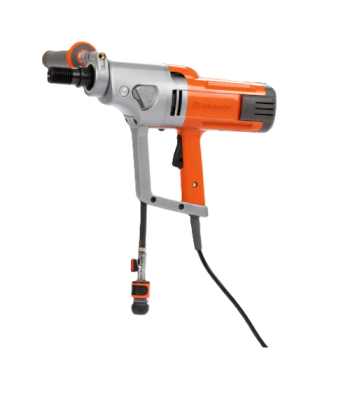

Husqvarna DM 230 Electric Drill Motor – Low Speed, Available in 110V or 230V (Optional 72mm Core Bit)

Handheld electric core drill with attractive design and functional ergonomics. The motor is designed with a pistol grip giving you greater control. Handheld core drilling up to 80 mm or drilling with stand up to 150 mm. Suitable for light applications such as ventilation, plumbing pipes and electrical sockets and cables. DM 230 is an excellent choice for professionals as well as semi-professionals.

Features

  • Overload protection – Elgard™ uses pulsation to warn of an approaching overload and automatically shuts off the motor to prevent overheating, increasing productivity and product life.
  • Reliable gearbox – Water-cooled 3-speed gearbox provides optimal drilling performance and longer service intervals.
  • Easy start with reduced speed – Smart Start® reduces drilling speed by half to make starting holes easier and more accurate.
  • Durable and ergonomic design – Shock-proof construction protects the electronics while the lightweight, ergonomic design makes the drill easy to carry and install.
  • Smooth start with normal fuses – Softstart™ electronic current limiter enables smooth starts without overloading standard electrical circuits.
  • Dry and wet drilling – Easily switch between dry and wet drilling applications.
  • Smart Start® – Reduces speed by half when starting a hole for improved control.
  • Softstart™ – Electronic current limiter provides smooth starts while maintaining high productivity.
  • Barriers – Suitable for drilling holes for the installation of stair rails, fences and barriers.
  • Channels, pipes and cables – Designed for drilling ventilation channels and holes for pipes and electrical cables.

Technical Specifications

Specification220-240V Model100-120V Model
Motor
Rated input power 1.85 kW 1.85 kW
Frequency 50 Hz 50 Hz
Voltage 220-240 V 100-120 V
Phases 1 ph 1 ph
Power Source Corded Corded
Equipment
Drill bit diameter handheld, max 80 mm 80 mm
Drill bit diameter with stand, max 150 mm 150 mm
Recommended drill bit diameter, min 25 mm 25 mm
Coolant Wet Wet
Transmission
Number of gearbox speeds 3 3
Spindle speed unloaded gear 1 730 rpm 730 rpm
Spindle speed unloaded gear 2 1,700 rpm 1,700 rpm
Spindle speed unloaded gear 3 3,600 rpm 3,600 rpm
Product Data
Water connector G 1 / 4" G 1 / 4"
Water pressure, max 8 bar 8 bar
Mounting collar 60 mm 60 mm
Spindle thread, inner G 1/2" G 1/2"
Spindle thread, outer 1 1/4" 7 UNC 1 1/4" 7 UNC
Dimensions & Weight
Product size length 438 mm 438 mm
Product size width 104 mm 104 mm
Product size height 341 mm 341 mm
Weight (w/o side articles) 7 kg 7 kg
Packaging length 660 mm 660 mm
Packaging width 520 mm 520 mm
Packaging height 150 mm 150 mm
Article gross weight 12,100 g 12,100 g
Sound & Noise
Sound power level, guaranteed 108 dB(A) 108 dB(A)
Sound power level, measured 107 dB(A) 107 dB(A)
Sound pressure level at operator's ear 93 dB(A) 93 dB(A)

Brand: Husqvarna

Identifier: DM230

Product Document Download(s)

  User Manual
