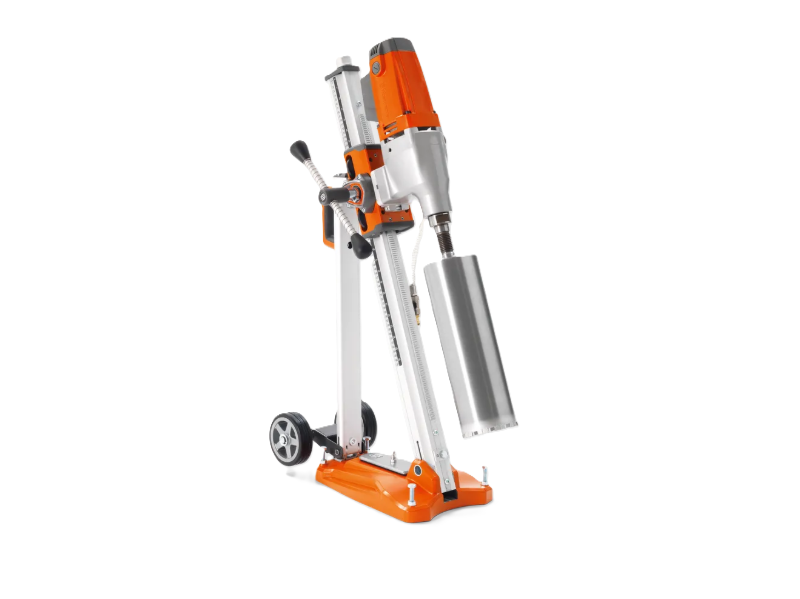

Husqvarna DMS 240 Core Drill and Rig - 110v (965173602) or 240v (965173603)

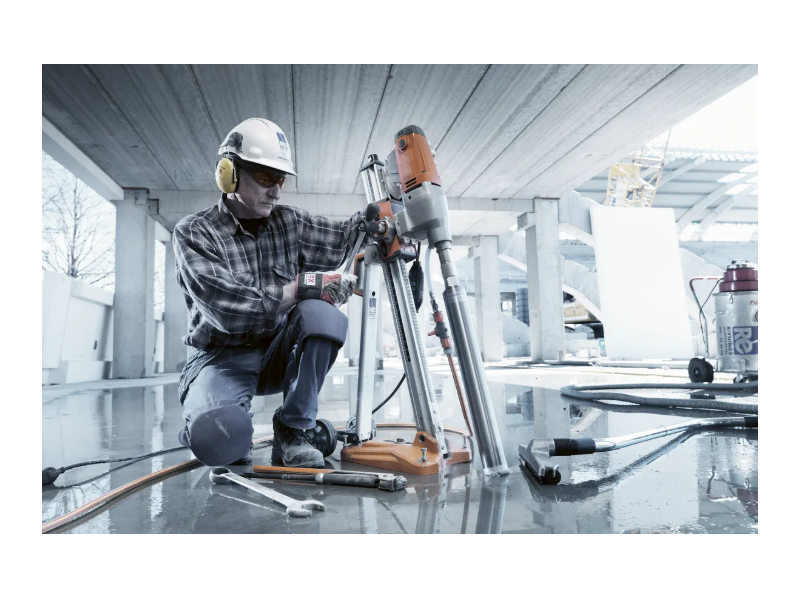

DMS 240 is an electric core drill motor and stand system for a huge variety of core drilling applications. It is the most powerful system in our drill motor stand range. An ideal system for medium core drilling in walls, floors and roofs up to 250 mm diameter. The stand is easy to tilt, the back support provides reliable and stable angle drilling, saving you setup time and body stress. This system can be used for drilling ventilation and plumbing channels, waste evacuation pipes as well as barrier and road signs.

Features

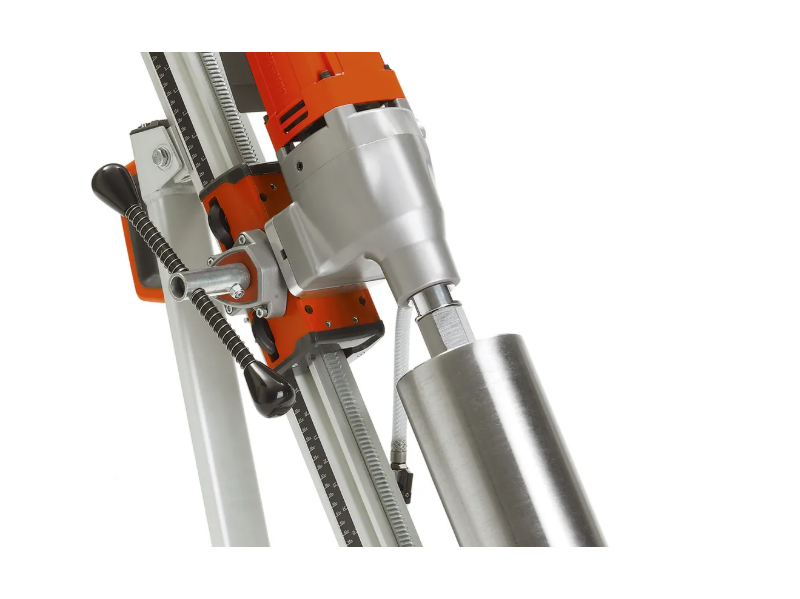

  • Optimum cranking speed – Carriage with single and double gearing for efficient drilling.
  • User-friendly base plate – Lightweight aluminium base plate with integrated vacuum base for quick setup.
  • Overload protection – Increases productivity and extends service life.
  • Easy transportation – Stand equipped with transport wheels for easier movement.
  • Angle drilling – Allows drilling at stepless adjustable angles.
  • Horizontal drilling – Suitable for horizontal drilling applications.
  • Channels, pipes and cables – Designed for drilling ventilation channels and holes for pipes and cables.
  • Stitch drilling – Enables drilling multiple holes next to each other to create openings.
  • Water evacuation – Suitable for drilling holes for water evacuation.

Technical Specifications

Specification230 V Version100–120 V Version
Motor type Single-phase electric motor Single-phase electric motor
Rated voltage 230 V 100–120 V
Rated output power 2.4 kW (2,400 W) 2.4 kW (2,400 W)
Rated current 10 A 20 A
Motor weight 5.9 kg 5.9 kg
Spindle speed (idle) 390 rpm (gear 1) / 890 rpm (gear 2) 390 rpm (gear 1) / 890 rpm (gear 2)
Maximum drill bit diameter 250 mm 250 mm
Spindle thread (inner) G 1/2" and 5/8"–11 UNC G 1/2" and 5/8"–11 UNC
Spindle thread (outer) 1 1/4"–7 UNC 1 1/4"–7 UNC
Water connector G 1/4" G 1/4"
Maximum water pressure 8 bar 8 bar
Drill stand height 1,052 mm 1,052 mm
Drill stand width 266 mm 266 mm
Drill stand depth 545 mm 545 mm
Drill stand weight 14.5 kg 14.5 kg
Travel length 686 mm 686 mm
Column angling 0–60° 0–60°
Measured sound power level 106 dB(A) 106 dB(A)
Guaranteed sound power level 107 dB(A) 107 dB(A)
Sound pressure level at operator’s ear 90 dB(A) 90 dB(A)
Vibration level at handle <2 m/s² <2 m/s²

Brand: Husqvarna

Identifier: DMS 240
