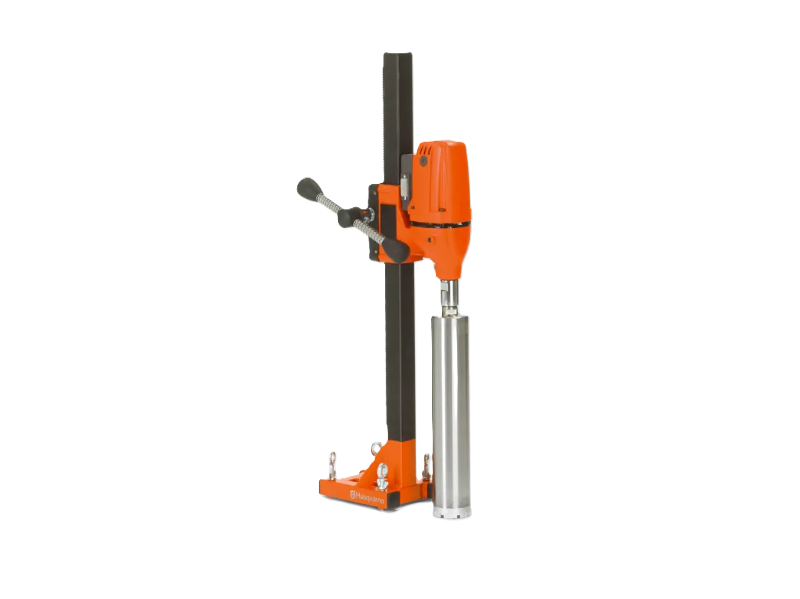

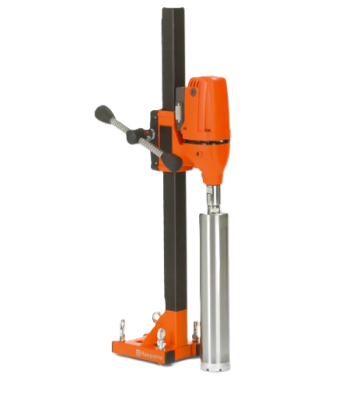

Husqvarna DMS 160 A 230V (Anchor) Drill Motor and Drill Stand - Code 9651575-02

DMS 160 A is a small but powerful electric drill motor and stand system. An ideal choice for light core drilling applications up to 120 mm diameter. Suitable for stitch drilling and drilling close to walls and edges in applications such as small channels and pipes as well as electrical sockets.

Features

  • Compact and powerful design – Combines an electric drill motor and drill stand for light core-drilling applications.
  • Maximum drilling capacity – Suitable for drilling holes up to 120 mm in diameter.
  • LED load indicator – Shows the machine's load, helping the operator maintain efficient drilling pressure.
  • Overload protection – Helps protect the motor from excessive load and extends its service life.
  • Stitch drilling – Allows multiple adjacent holes to be drilled to create larger openings.
  • Suitable for pipes and cables – Ideal for drilling holes for ventilation ducts, pipes, cables and electrical sockets.
  • Drilling close to walls and edges – Compact design makes it suitable for restricted spaces and smaller drilling jobs.
  • Wet drilling capability – Uses water to cool the drill bit and help control dust during drilling.

Technical Specifications

Product type Electric core drill with stand
Power source Corded electric
Rated input power 1.55 kW
Voltage 220–240 V
Frequency 50 Hz
Phases Single-phase
Rated current 6 A
Maximum drill bit diameter 120 mm
Maximum travel length 600 mm
Number of gearbox speeds 1
Cooling method Wet drilling
Maximum water pressure 8 bar
Water connection G 1/4"
Internal spindle thread G 1/2"
External spindle thread 1¼" UNC
Length 280 mm
Width 230 mm
Height 840 mm
Weight 10.5 kg
Product code 965 15 75-02

Brand: Husqvarna

Identifier: DM 160 A
