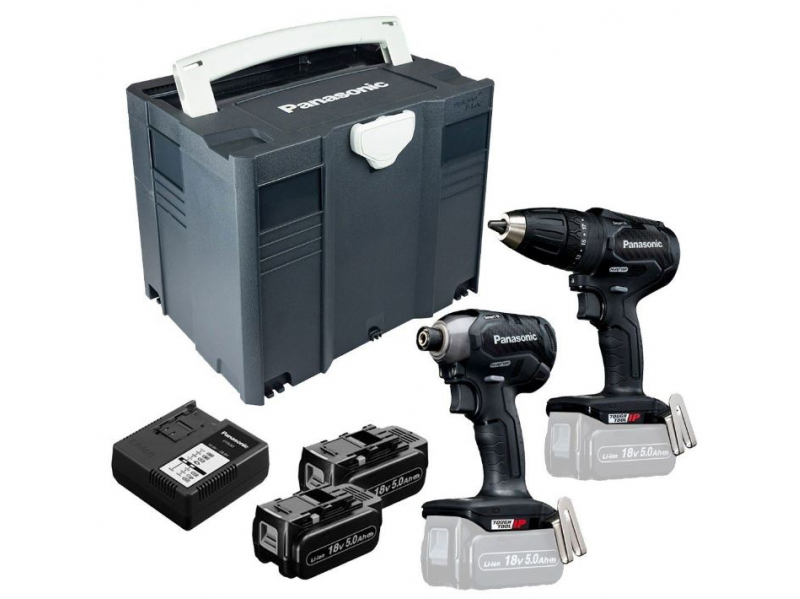

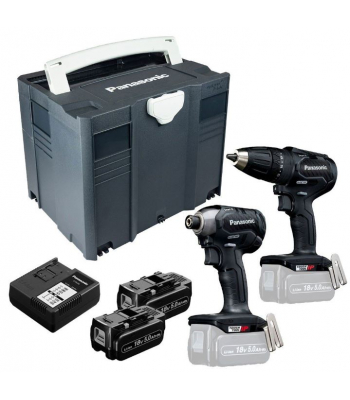

EY79A3 COMBI DRILL

FEATURES

• New 'Smart BL' intelligent control technology - a leading-edge micro-controller delivers optimal brushless motor output for maximised tool performance which delivers the power and speed to suit your task
• Compact dsign with comfort grip for perfect handling, even in confined or awkward spaces
• Powerful percussion mechanism for fast and effortless work
• 'Smooth Start' electronics start the rotation speed gradually for slow and smooth starts, ensuring ultimate control when drilling or working with small screws in precise applications
• New metal tapping mode allows automatic reverse without having to change the toggle, for maximum convenience and accuracy
• Electronic speed control functions allows to choose from three different low rotation speed settings (High / Medium / Slow) to greatly reduce 'run out' and prevent surface scorching
• Electric brake for increased precision
• Robust design for high durability, including metal chuck with ultra-hard tungsten carbide jaw tips, increased amounts of rubber and resin coating, and a hybrid switch to eliminate heavy friction internally
• Tough Tool IP
• LED job light
• Battery charge indicator
• Belt hook

SPECIFICATION

• Voltage: 14.4v / 18v
• No Load Speed:
• Low: 20 - 530 Rpm
• High: 70 - 1800 Rpm
• Chuck Capacity: Ø 1.5mm - 13mm
• Clutch Torque: Approx 1.0 N.m - 4.4 N.m
• Overall Length: 192mm
• Impact Rate:
• Low: 400 - 9500 Bpm
• High: 1250 - 32300 Bpm
• Max Torque (Stalling / Instant): 32 / 50 Nm
• Machine Screw: M5
• Wood Screw: Ø 6.8 (14.4v), Ø 8mm (18v)
• Self-Drilling Screw: Ø 6mm
• For Wood: Ø 35mm (14.4v), Ø 38mm (18v)
• For Metal: Ø 13mm
• For Masonry: Ø 13mm
• Weight (Inc. 5.0Ah Batt): 2.05kg

EY76A1 IMPACT DRIVER

FEATURES

• Smart BL - maximised tool performance with optimal brushless motor output
• New airflow design - air flow provides efficient cooling to centre of coils as well as around motor
• DASH mode allows the unit to reach full speed instantaneously giving maximum performance
• Improved torque and motor speed compared to its predecessor
• New dual LED work light helps avoid shadowing on your work
• New longer bit holder socket and tampering collar design make accessory changes quick and simple
• The base of the device includes storage space for 2x 65mm bits (to left and right)
• Includes the Panasonic TOUGH TOOL IP technology (IP = Intelligent Powertool)

SPECIFICATION

• Voltage: 14.4v / 18v Dual Voltage
• Chuck: 6.35mm / 1/4" HEX
• Maximum Torque (18v): High Mode: 170Nm
• Maximum Torque (18v): Medium Mode: 150Nm
• Maximum Torque (18v): Low Mode: 26Nm
• Maximum Torque (18v): DASH Mode: 170Nm
• No-Load Speed (18v): High Mode: 0-2800 Rpm
• No-Load Speed (18v): Medium Mode: 0-1450 Rpm
• No-Load Speed (18v): Low Mode: 0-950 Rpm
• No-Load Speed (18v): Self-Drilling Mode: 0-2800 Rpm
• No-Load Speed (18v): DASH Mode: 0-2800 Rpm
• Impacts Per Minute (18v): High Mode: 0-3100 Ipm
• Impacts Per Minute (18v): Medium Mode: 0-2500 Ipm
• Impacts Per Minute (18v): Low Mode: 0-1800 Ipm
• Impacts Per Minute (18v): Self-Drilling Mode: 0-2500 Ipm
• Impacts Per Minute (18v): DASH Mode: 0-3100 Ipm
• Screwdriving Capacity (5.0Ah - Wood Screws in Pine 4.2x75mm): 740
• Screwdriving Capacity (5.0Ah High Mode - SD Screw in SPC 4x13mm): 1150
• Screwdriving Capacity (5.0Ah Medium Mode - SD Screw in SPC 4x13mm): 610
• Screwdriving Capacity (5.0Ah Low Mode - SD Screw in SPC 4x13mm): 1250
• Bolting Capacity (5.0Ah Std Tensil Bolt - M16x25mm): 1150
• Bolting Capacity (5.0Ah High Tensil Bolt - M12x25mm): 400
• Drilling Capacity (5.0Ah Plaster Board + PlyWood 21mm): 160
• Dimensions (18v 5.0Ah): L 127 x H 240 x D 60
• Weight (18v 5.0Ah): 1.7 Kg
