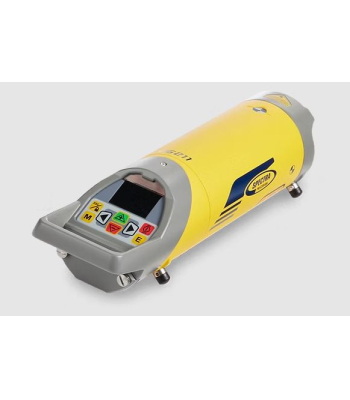

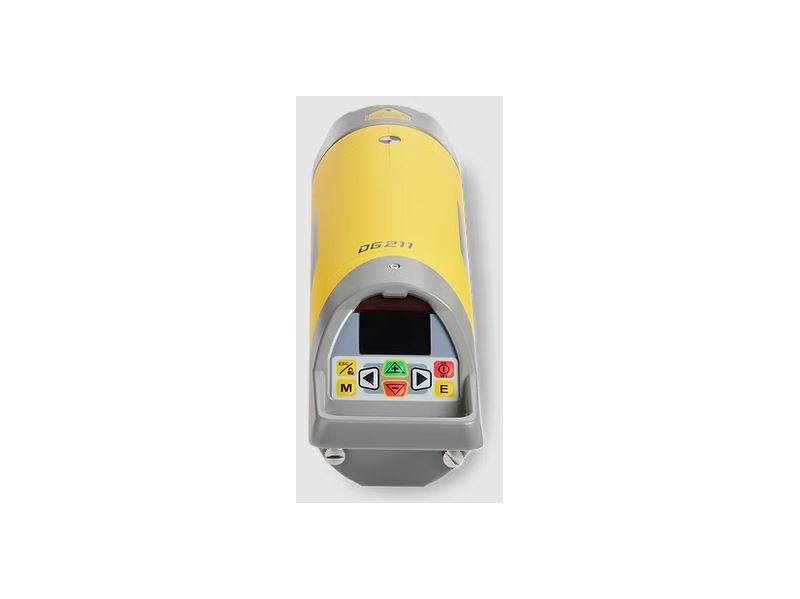

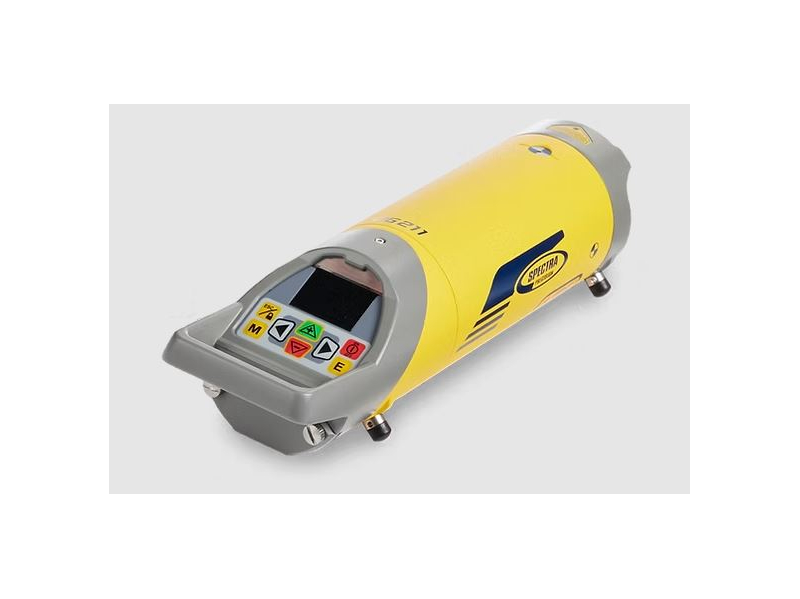

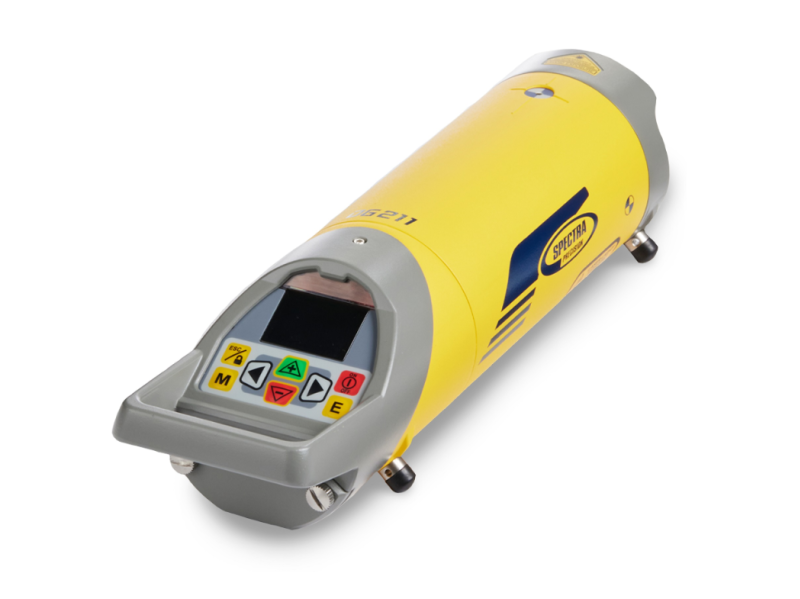

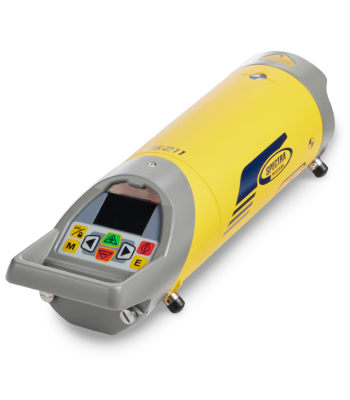

Spectra Precision DG211 Self-Leveling Pipe Laser with RC201 Remote Control

The Spectra DG211 is a simple-to-use Pipe Laser Level for drain and sewer pipe installation.

The required drain gradient is entered via the keypad on either the instrument or the remote control, and the laser will automatically set to the correct grade.

Trench alignment is set via the left/right controls on either keypad.

A digital cross-alignment vial indicator on the display indicates which way to manually rotate the pipe laser so that it is sitting correctly during use.

Features & Benefits

Small diameter – fits inside a 100mm diameter pipe
Grade range: -20% to + 30%
IP68 protection (waterproof)
Use with either rechargeable battery pack or 4 x Alkaline size C cells
36 hours run time with rechargeable battery
3 years warranty

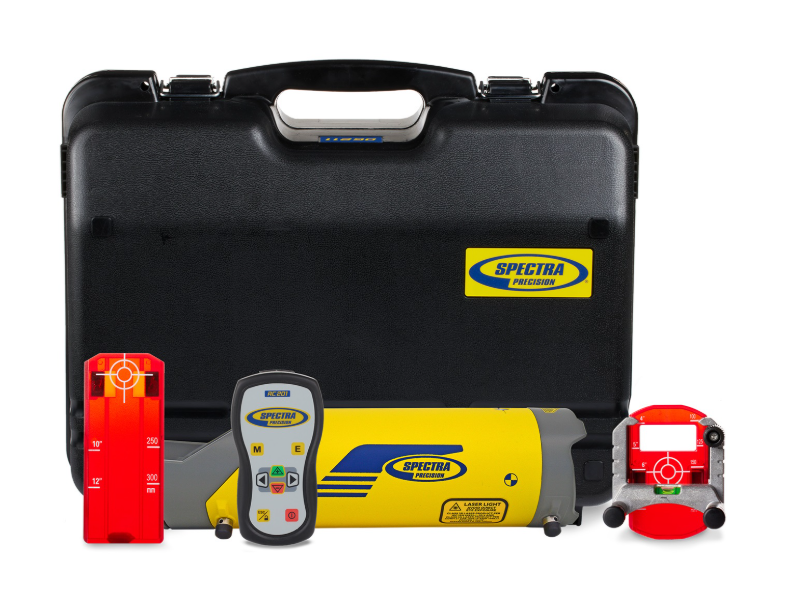

Supplied with:

Spectra DG211 Pipe Laser Level
Li-ion rechargeable Battery
Battery Charger
Alkaline battery pack
Short removeable screw-in legs
Remote Control with 2 x AA alkaline batteries
Pipe Target set
Instruction manual

Technical Specification for Laser DG211

Accuracy, Level	± 1.5 mm / 30 m; 1/16” @ 100 ft.
Accuracy, Grade	± 9 mm / 30 m; 1/4” @ 70 ft.
Accuracy, Grade, Temperature	± 0.6 mm / 30 m per °Celsius (± 3/128” @ 100 ft. per 1.8°Fahrenheit)
Operational Area	Up to 150 m / 500 feet
Laser Type	600 – 680 nm
Laser Class	3A/3R OR 2
Grade Range	-20% to 30%
Self-Leveling Range	-10% to 25%
Battery Life (Li-Ion pack)	36 hrs
Li-Ion pack charging time	< 6 hrs
Li-Ion pack charging temperature	0°C to 45°C / 32°F to 113°F
Alkaline batteries back up	4 x C-Cells
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Dust and Waterproof	IP68
Weight (incl. Li-Ion pack)	2868 g / 6.3 lbs
Product length	372 mm / 14.65 in
Diameter	96 mm / 3.78 in

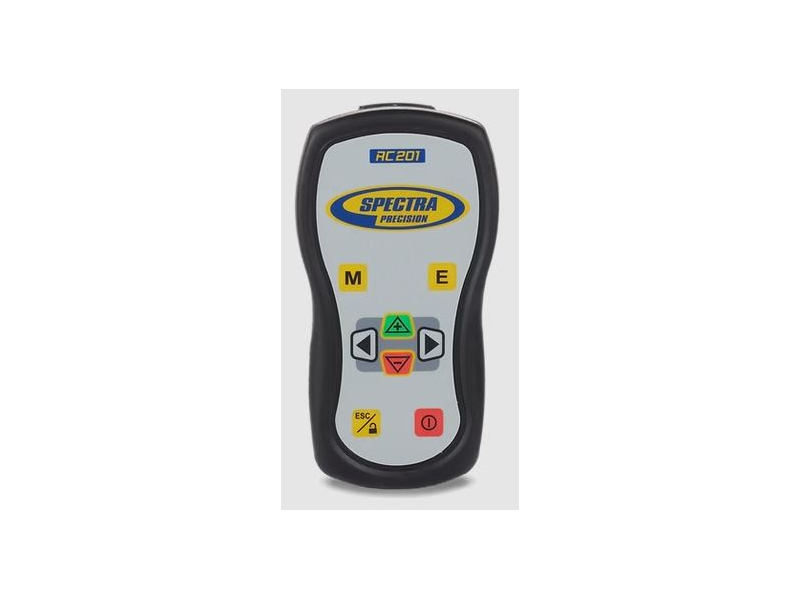

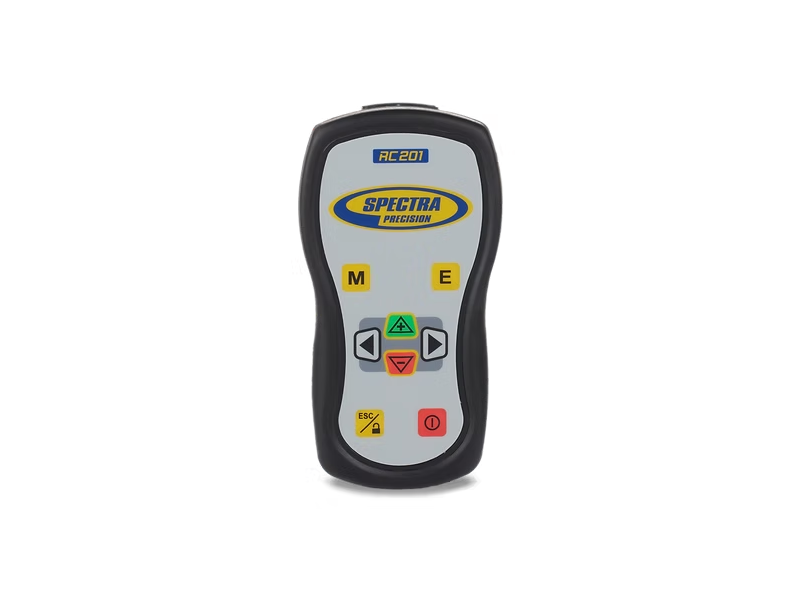

Technical Specification for Remote Control RC201

IR operating range (front, through pipe)	150m
IR operating range (back)	10m
Power source	2 x 1.5 V AA alkaline batteries
Weight (w/o batteries)	153 g / 0.34 lbs
Dimensions	148 x 79 x 33 mm / 5.83 x 3.11 x 1.3 in

Brand: Spectra

Identifier: DG211

Product Document Download(s)

Data sheet
