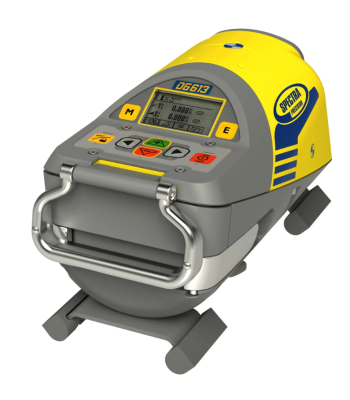

Spectra Precision DG613 Pipe Laser

Description

The Spectra Precision DG613 is an industry leading high quality pipe laser for drain and sewer pipe installation.

Spectra Precision are the world-leading manufacturer of rugged heavy-duty pipe lasers for use in the most arduous ground conditions.

The Spectra DG613 is very simple to use: the required gradient in entered via the keypad on the pipe laser or the remote control, and the alignment is simply adjusted with the left/right buttons.

The DG613 pipe laser quickly sets to grade and is automatically held on grade.

Features & Benefits

• Grade range -12% to +40%
• Ultra-fast beam movement
• Operating range up to 150 m (500 ft)
• Large intuitive graphical display on the laser and remote control
• IP68 protection (dust and waterproof)
• Flexible power options (NiMH / Alkaline)
• Advanced functions squeezing working time: Line Set/Check (first day setup), Line Scan (second day setup) and Line Alert
• Automatic functions for beam alignment, beam detection, and grade calculation (DG813 only)
• Compact length allows easy set-up even in tight inverts
• Self-levelling range of -12% to +40% over the entire grade range
• Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work
• Bright visible beam works up to 150 m (500 ft)

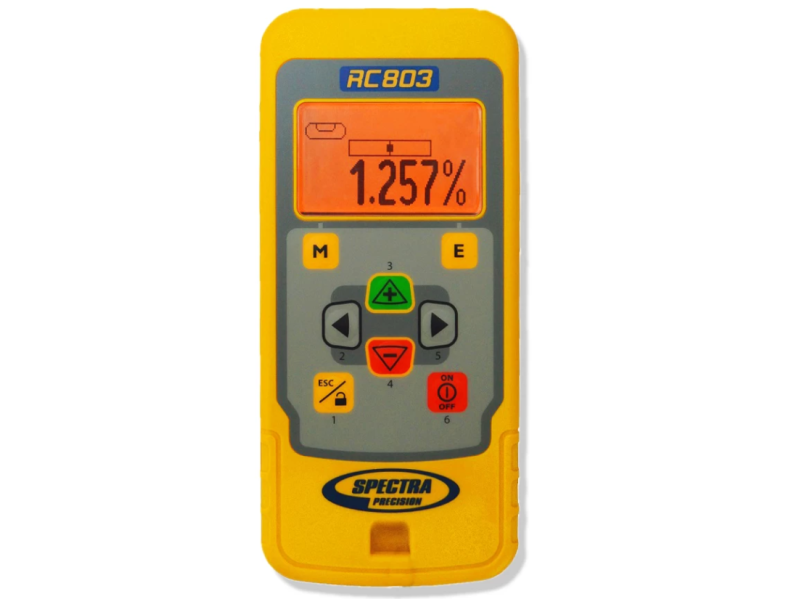

• RC803 remote works via radio 130 m (430ft) "over-the-top“ set-up or infrared 150 m (500 ft) in the pipe set-up

Applications

• Installation of gravity flow sanitary pipelines
• Storm sewer pipelines
• Pipe jacking
• Can be used in a pipe or in “Over the Top” set-ups

What is included

• Remote control
• Rechargeable battery pack and charger

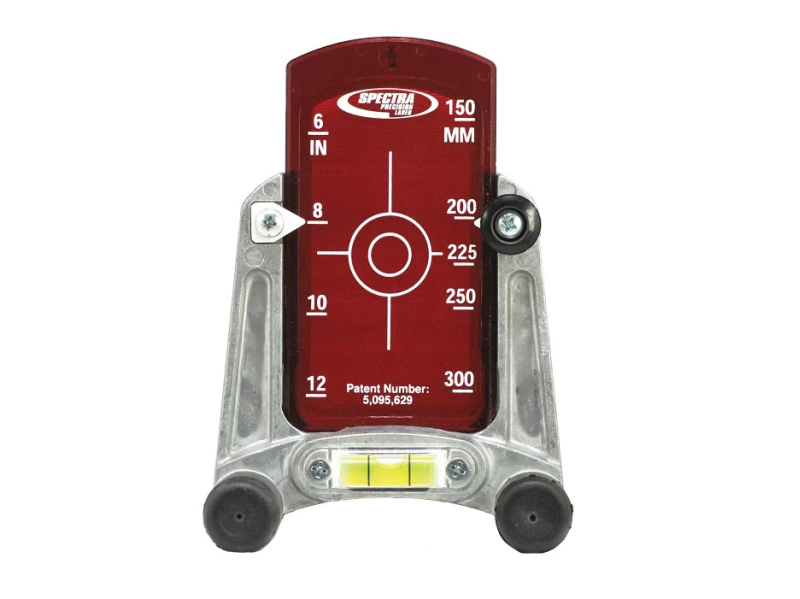

• Pipe target set

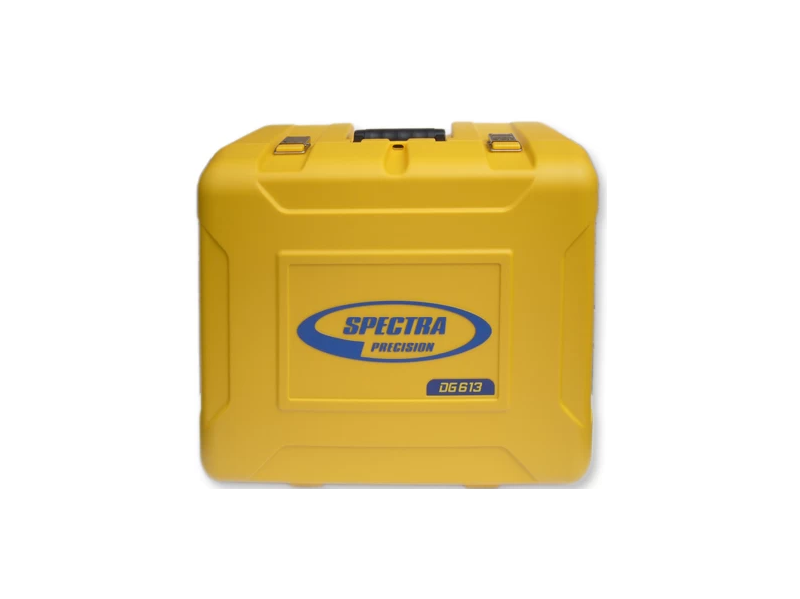

• Sturdy carrying case

Specification
