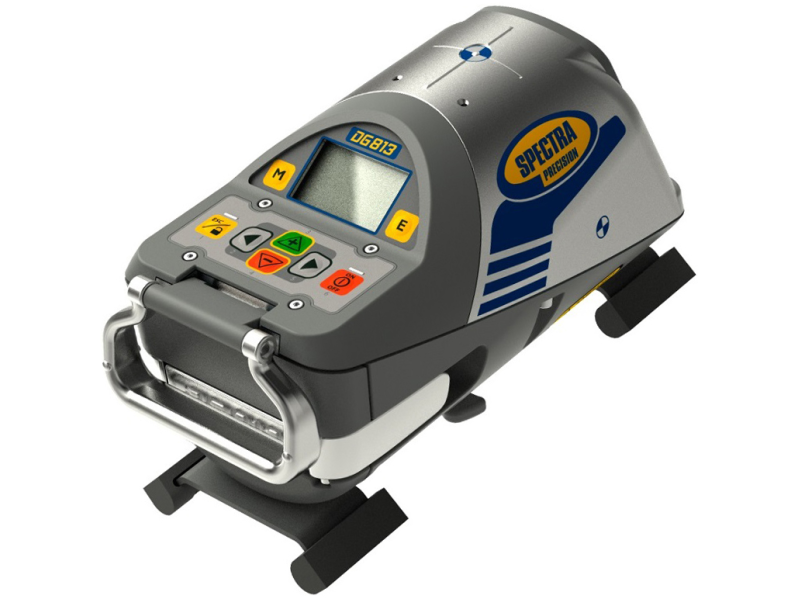

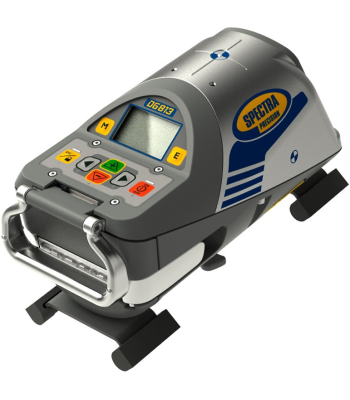

Spectra Precision DG813 Pipe Laser

The advanced Spectra Precision DG813 delivers the most productive pipe laying experience in the market. The level is extremely rugged and designed to survive demanding underground conditions. Benefitting from the latest technology developed by Spectra Precision, the laser beams move quickly and accurately for alignment and grade.

The DG813 is the top of the range model and is simple to use, with a clear graphical menu. A range of useful functions aid quick set up of the laser level.

The DG813 is supplied with the SP803 radio linked Spot Finder, to which the laser can align automatically. This is particularly useful for grade matching work, where the laser has to be sloped to match two existing points at each end of a proposed drain run. The DG813 pipe laser is simply placed at one end of the run, perhaps in an existing manhole or drain, and the SP803 spot finder is located at the required final position at the other end of the proposed drain run. The pipe laser will rapidly scan the area in front with a special laser beam, and within seconds will locate and precisely aim at the Spot Finder centre-line. The laser will then lock-on at that point. The resultant grade will be displayed on the pipe laser and remote control, enabling the operator to confirm that the working grade is suitable.

Features & Benefits

• Grade range -12% to +40%
• Ultra-fast beam movement
• Operating range up to 150 m (500 ft) with radio / IR remote control
• Large intuitive graphical display on the laser and remote control
• IP68 protection (dust and waterproof)
• Flexible power options (NiMH / Alkaline)
• Advanced functions squeezing working time: Line Set/Check (first day setup), Line Scan (second day setup) and Line Alert
• Automatic functions for beam alignment, beam detection, and grade calculation (DG813 only)
• Compact length allows easy set-up even in tight inverts
• Self-leveling range of -12% to +40% over the entire grade range
• Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe, it levels, you work
• Bright visible beam works up to 150 m (500 ft)
• RC803 remote works via radio 130 m (430 ft) or infra-red 150 m (500 ft) for both “over-the-top” set-up and in the pipe/trench set-up

Supplied with:

• Supplied in heavy duty carrying case with all accessories

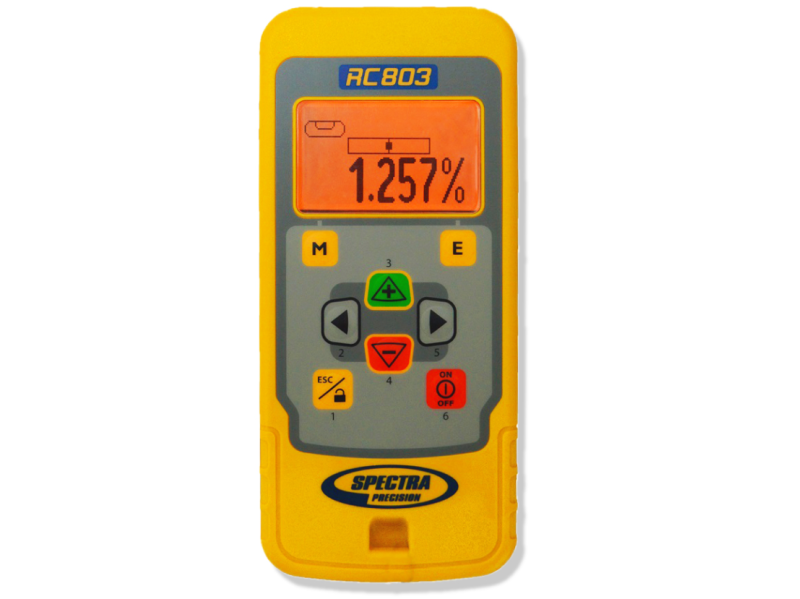

• RC803 Radio Remote Control

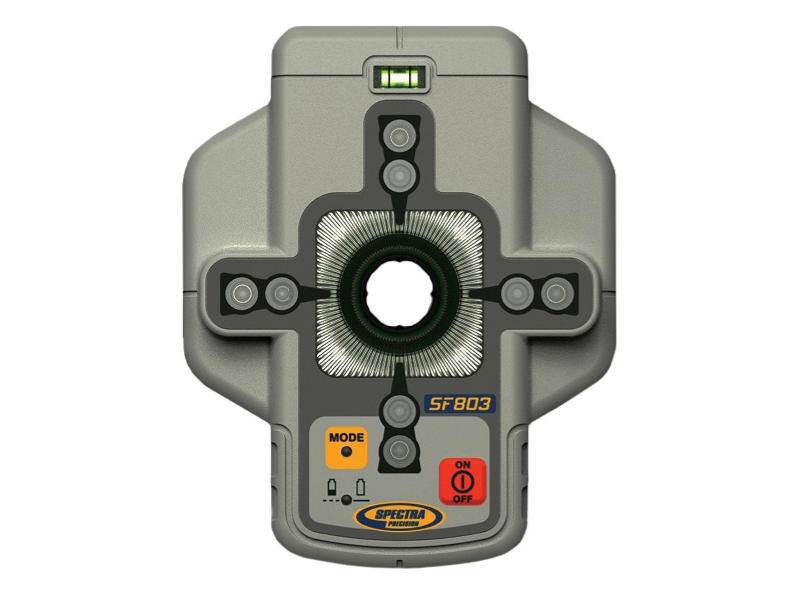

• SP803 Radio linked laser alignment control
• Control signal transporter for increased range

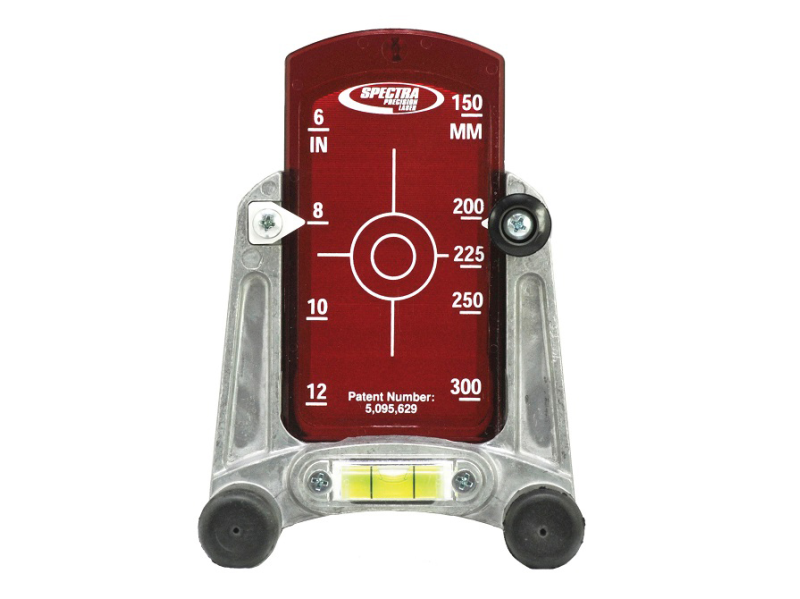

• Pipe target
• Rechargeable battery and charger
