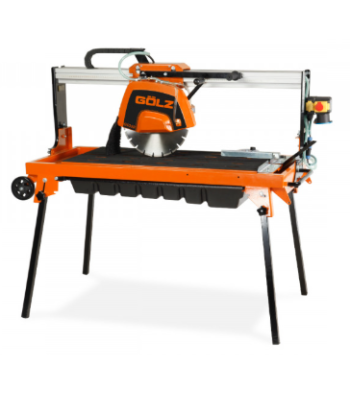

Golz GS350L Bridge Saw

Description

Introducing the GOLZ GS350L Bridge Saw – a pinnacle of precision and performance in the stone industry. This bridge saw is built for the accurate cutting of granite, marble, terrazzo, and tiles, delivering exceptional results with every use. Featuring a cutting length of 1,200 mm and a 350 mm diamond blade, the GS350L meets the industry's toughest demands. It's not just about power; this tile saw offers precision with an adjustable cutting head that tilts up to 45°, allowing for versatile cutting techniques.

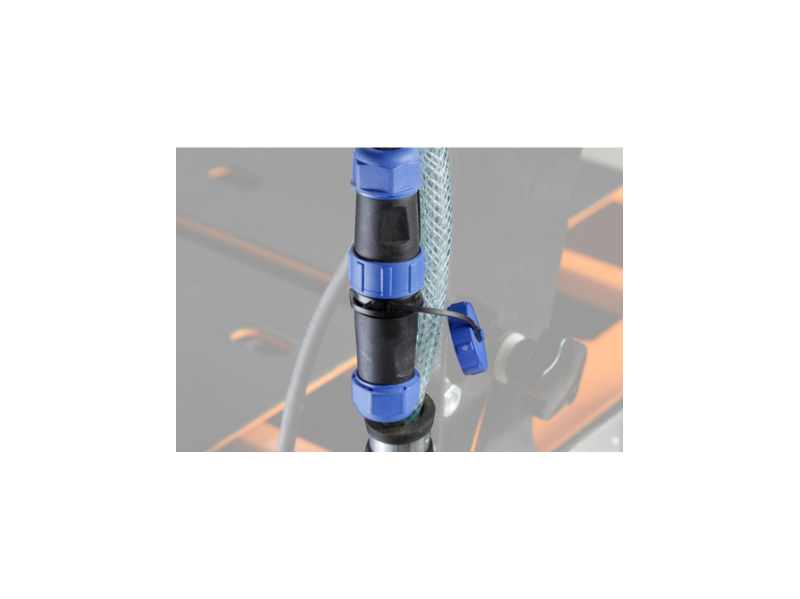

Maintenance is made easy on the Golz GS350L with a removable water tub and cutting table, while the electric water pump, equipped with a quick coupling, ensures seamless changes. Its foldable legs and transport wheels offer mobility and storage convenience. For added safety, the Golz GS350L bridge saw includes a front shield to protect against water spray and an embedded cable protection chain that safeguards cables from damage.

Features

• Precision and Versatility: This high-performance bridge saw provides a cutting length of 1,200 mm and features an adjustable head up to 45°. Equipped with a 350 mm diamond blade, it's ideal for achieving accurate cuts on a variety of tiles.
• Powerhouse Performance: Driven by a powerful 110V/230V, 50Hz motor, this tile saw delivers a robust 2.2 kW output with a blade speed of 2,800 min-1, ensuring optimal performance for demanding tasks.
• User-Friendly Design: Designed for convenience, it includes removable components, foldable legs, transport wheels, and specialized water nozzles for efficient operation.
• Safety Measures: Equipped with a front shield and a cable protection chain, this bridge saw prioritizes operator safety during all cutting tasks.
• Key Specifications: With a maximum cutting depth of 110 mm and a spacious cutting table measuring 1200 × 530 mm, this tile saw is built to handle tough jobs while maintaining a solid weight of 95 kg.

Technical Data

• Motor: Electric, 230V, 50Hz, IP54
• Power: 2,2 kW
• Max. cutting depth: 110 mm
• Max. blade size: 350 mm
• Arbor hole: 25,4 mm
• Cutting length: 1000 mm (1200mm)
• Shaft speed: 2800 min-1
• 45° miter-cut: Built-In
• Water pump: S2, 230 V, 50 Hz, 55W
• Blade flange size ø: 90 mm
• Transport wheels: yes
• Cutting table (LxW): 1200 × 530 mm
• Dimensions(LxWxH): 1710×700×1360 mm
• Weight: 95 kg
• Order-Nr.: 0289 350 3000
