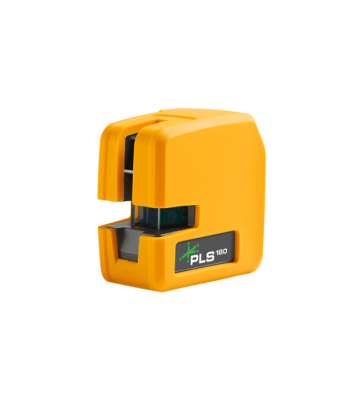

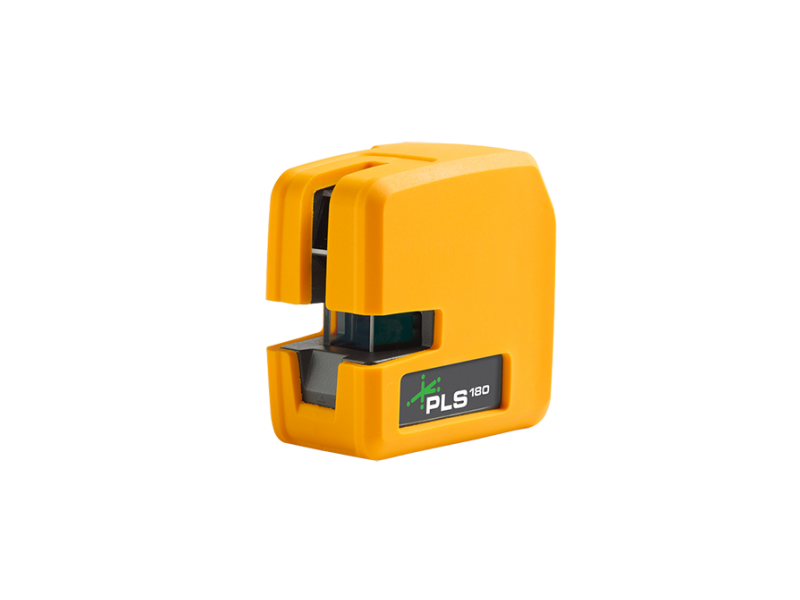

Pacific Laser Systems PLS180 Greenbeam Line Laser - Code 60596N

This is now a "Discontinued Product"

(Item No Longer Available)

Pacific Laser Systems PLS180 Greenbeam Line Laser - Code 60596N

Discontinued! This item has been discontinued.

Quote Ref: @56575

Product ID: PLS60596

Manufacturer: Pacific Laser Systems

Warranty: 3 years

List Price: ~~£463.00 (£555.60 inc VAT)~~

Web Price: (£219.95 ex VAT) £263.94 (inc VAT)

Available at checkout!

Rating: 4.7/5 based on 3 review(s).

17 people have bought this item!

Categories Products

Pacific Laser Systems PLS180 Greenbeam Line Laser - Code 60596N

4 Times More Visibility!

180-degree coverage
Display horizontal, vertical or cross beam
Self-leveling within ±6 degrees
Up to 60-foot range
±1/8-inch accuracy at 30 feet
IP54 dust and water-resistant
Up to 2-6 hours battery life
1/4-20 tripod thread

Designed for interior leveling tasks, the Pacific Laser Systems PLS180 G Line Laser with green beam technology provides more visibility than red beam lasers. With a working range of up to 60 feet, it projects horizontal and vertical beams with an accuracy of up to ±1/8-inch at 30 feet.

Wide Fan Beam

Self-leveling within 6 degrees, the PLS180 G features super bright vertical and horizontal beams that can be used independently or together. In addition, the180-degree fan beam can project from wall to wall or from ceiling to floor.

Various Indoor Applications

You can use this green beam line laser to level cabinetry, shelving, or crown molding. It is also ideal for aligning windows, doors, tiling, as well as checking the level or plumb of machinery, foundations, or elevation.

Built for Tough Jobsites

With an IP-54 rating, the PLS180 G is dustproof and protected against water splashes. It can also withstand extreme temperatures and works up to 2-6 hours using three AA alkaline batteries.

This Pacific Laser Systems line laser comes with a magnetic wall mount, soft pouch, hard carrying case, batteries and 3-year manufacturer’s warranty.

60-foot range
±1/8-inch accuracy at 30 feet
Self-leveling within ±6 degrees
180-degree full coverage leveling
Manual mode for tilting
Magnetic wall mount
Auto shut-off of beams when out of self-leveling range
Low battery indicator
IP54 dust and splashing water
Impact-resistant molding
1/4 - 20 tripod thread

General

Warranty: 3 year limited
Weight: 1.7lbs (.77kg.) Laser Level only
Laser Type: Green
Dimensions: 2" x 2 7/8" x 3 3/8" Laser level only
Laser: Class 2

Measuring Capabilities

Leveling Accuracy: +/- 1/8 inch @ 30 Feet (+/- 3mm @ 10 meters)
Working Range: Up to 60 feet (20m)
Vertical Accuracy: +/- 1/8 inch @ 30 Feet (+/- 3mm @ 10 meters)
Self-Leveling Range: 6 Degrees
Number of Lines (Planes): 2
Beam Direction: Horizontal and vertical
Horizontal Accuracy: +/- 1/8 inch @ 30 Feet (+/- 3mm @ 10 meters)

Battery/Power

Operating Temperature: 0°F to 122°F (-18°C to 50°C)
Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Operating Time: Up to 2-6 hours
Power Source: (3) AA batteries
Battery Level Indicator: yes

Applications

Installing Windows and Partition Walls: yes
Transferring Points from Wall to Wall: yes
Installing Drop Ceilings and Lights: yes
Flooring and Tile Layout: yes

Functions

Setting out Right Angles: yes
Horizontal Leveling: yes
Vertical Aligning: yes
Vertical and Horizontal Aligning: yes
Aligning at an Angle: yes

Features

Tripod Thread: 1/4-20 thread
Environmental Class: IP54 (protected against dust and splashing water)
Self-Leveling: yes

Comes with

Operating Manual

Magnetic Wall Bracket

Carrying Pouch

Hard Carrying Case

Brand: Pacific Laser Systems

Identifier: 60596

PLS Pacific Laser Systems

Published on Thu 28th August 2014 by D Courtney

PLS laser tools are designed to be a career purchase with a lifetime of profit and productivity.

Foundations

General, new residential and remodeling contractors will appreciate the simple set up and accurate layout for basements, concrete slab and decks.

Interiors

Commercial and remodeling contractors will save layout time, verify existing conditions and improve installation for electrical, HVAC, tile, glazing, staging and more.

Partitions

Multi story commercial, light industrial, drywall, masonry and tilt-up will realize labor efficiencies, while reducing compound errors and rework.

THE PLS EDGE

PLS - PACIFIC LASER SYSTEMS MANUFACTURES THE HIGHEST QUALITY LAYOUT TOOLS FOR THE PROFESSIONAL CONTRACTOR.

PLS are dedicated to designing career laser tools for a lifetime of increased productivity and profit. Fast, accurate and portable, PLS lasers save time and money when your bubble vial level or rotary laser is

too limited or too cumbersome to do the job. When a rotary laser is required for long-midrange vertical and horizontal layout, then our PLS HR or HLE 1000 and PLS HVR 505 will tackle most projects. Compare the advantages of using a PLS laser to traditional methods you now employ.

When comparing PLS laser tools look for these quality features:

1. Beam quality will be bright, small and crisp.

2. Dampening will be quick and stable. The beams will not bounce around.

3. The tools will be self-leveling, easy to use and efficient.

PLS5, PLS4, PLS3, PLS180, PLS360 and PLS90 lasers are designed, calibrated, and assembled in the USA. The PLS HVR, HR, HLE and FT lasers are made for PLS in Asia.

PLS HISTORY

What sets PLS Pacific Laser Systems apart from the rest? Built by contractors for contractors, PLS tools were developed out of necessity by professionals with over 50 years of experience in commercial and residential interior and exterior layout. PLS founders were contractors first before becoming manufacturers of the finest laser alignment tools in the world.

PLS APPLICATIONS

FRAMERS

No more plumb bobs in the wind. Lay out and install track and studs for commercial or residential projects. Use PLS90 to project 90 degree angles in a fraction of the time. No more 3-4-5. Indoor - outdoor application means greater utility and value for your purchase.

ELECTRICIANS

Use the PLS reference plumb points to determine where each light is to be installed. How long would it take you to lay out 50 lights in a vaulted ceiling with two people and a plumb bob?

HOME BUILDERS

Setting up foundations on a slope is always a challenge. Place your PLS90 on the corner of your layout and pull reference points forward and to the side for labor saving layout. Interior walls, stairways, cabinetry, skylights, windows and more can be aligned quickly and accurately with a PLS laser.

HVAC / MECHANICAL

For commercial HVAC, PLS will speed vertical and level layout. Manipulate plumb, level, and square reference anywhere on the job site, regardless of obstacles or weather conditions.

ACOUSTIC CEILINGS

The PLS360 and 505 rotary laser makes layout and installation of acoustic ceilings fast and simple.

GENERAL CONSTRUCTION

The range, versatility and accuracy of our lasers make them ideal tools for checking elevations, setting large pads, leveling forms, square on slope and footings.

TILE

For ceramic tile contractors who install both walls and floors, get the PLS FT 90 combo pack which includes the PLS 2 cross line laser with magnetic wall bracket. Speed the installation of ceramic tile by following crisp and accurate lines on the floor. Eliminate costly mistakes and compound errors by establishing 90 degree (square) floor layout with bright laser lines from the durable cast aluminum FT 90.

Published on Thu 28th August 2014 by D Courtney

4/5

Como compra esta bien Uno de los maletines a venido deformado por golpes

By Vicente Martinez santos on Fri 5th January 2018

5/5

Fantastic laser, works like a dream on site due to the increased visibility. Magnetic attachment included which also makes it nice and easy to setup.

By Billy on Mon 9th May 2016

5/5

Arrived next day and was as described and expcted

By Jake Cummings, Darlington on Thu 17th April 2014
