(Item No Longer Available - No Direct Replacement)
Quote Ref: @90189
Product ID: 15NHSHY
Manufacturer: Warrior Winches
Price: (£650.20 ex VAT) £780.24 (inc VAT)
780.24 2025-06-05Compact & tough winch for sale UK levels in great prices from Bishop!

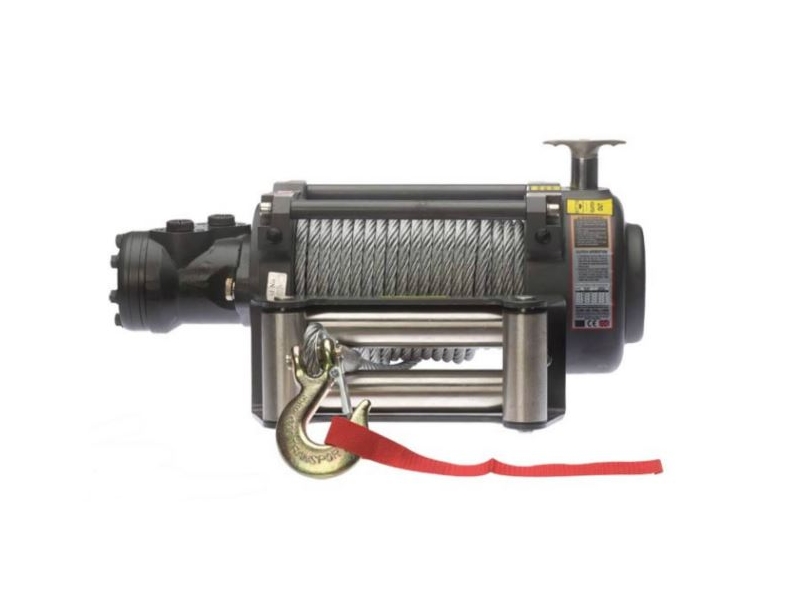

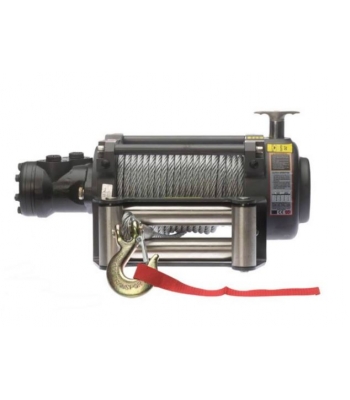

A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard.
Model 15NHSHY
| Rated Line Pull | 15000 lbs (6804 kg) |
|---|---|
| Motor | Hydraulic Dis 80 ml/r |
| Gearing | 33.4:1 |
| Drum Size Dia x L | 89 x 217mm |
| Cable Dia x L | 12mm x 26.5m |
| Dimensions | 554 x 226 x 262mm |
| Weight | 68.8 |
| Mounting Pattern | 254 x 114.3mm |
| Layer of Wire Rope | Line Pulllbs (kgs) | Rope on drumft(m) |
|---|---|---|
| 1 | 15000 (6804) | 18.0 (5.5) |
| 2 | 12120 (5498) | 41.7 (12.4) |
| 3 | 10168 (4612) | 65.9 (20.1) |
| 4 | 8757 (3972) | 86.9 (26.5) |
| Line Pull lbs (kgs) | Line Speedft/min (m/min) | Flow L/min | Pressure Mpa |
|---|---|---|---|
| 0 | 1.6 (0.5) | 5 | 2.0 |
| 5000 (2268) | 3.3 (1.0) | 10 | 4.3 |
| 10000 (4536) | 6.6 (2.0) | 20 | 8.7 |
| 12000 (5443) | 9.8 (3.0) | 30 | 10.0 |
| 15000 (6804) | 19.7 (6.0) | 60 | 13.0 |
Brand: Warrior Winches
Identifier: 15NHSHY
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
