(Item No Longer Available - No Direct Replacement)
Quote Ref: @107227
Product ID: WINCH_80RVSDY
Manufacturer: Warrior Winches
Price: (£994.99 ex VAT) £1,193.99 (inc VAT)

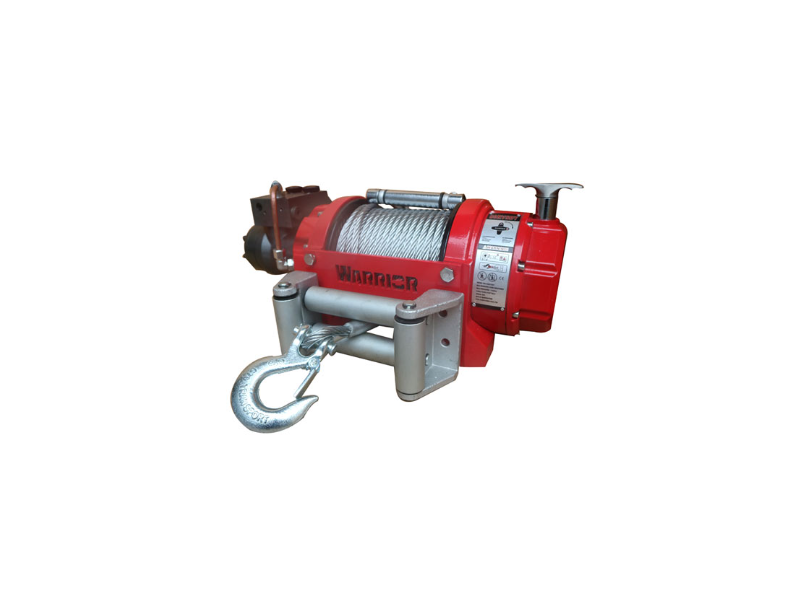

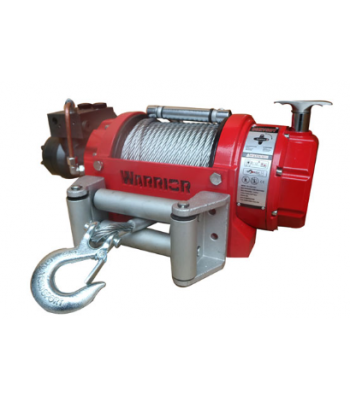

1193.99 2025-06-01The RV Series of hydraulic winches meet EN 14992 & SAEJ-706 standards. They are designed for tough, commercial and industrial applications and are available from 8000lbs to 18000lbs. This is the 8000lb Short drum version.
| Rated Line Pull | 8000 lbs (3629 kgs) |
|---|---|
| Gearing | 17.6:1 |
| Braking Action | Hydraulic |
| Drum Size - Dia x L | 4.0 x 6.65 in102 x 169mm |
| Cable - Dia x L | 3/8 in x 98.4 ft9.2mm x 30.0m |
| Dimensions | 22.0 x 9.3 x 9.5 in558 x 237 x 241mm |
| Mounting Pattern | 8.74 x 4.5 in (222 x 114.3mm)8.74 x 6.5 in (222 x 165.1mm)8-M10 |
| Weight kg | 47.6 kg (105 lb) |
| Max Flow L/min | 5-60L/min |
| Max Pressure Mpa | 12Mpa |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 8000(3629) | 18.4(5.6) |
| 2 | 6864(3113) | 42.3(12.9) |
| 3 | 6010(2726) | 69.5(21.2) |
| 4 | 5345(2424) | 98.4(30.0) |
| Line Pulllbs (kgs) | Line Speedft/min (m/min) | FlowL/min (G/min) | PressureMpa |
|---|---|---|---|
| 0 | 37.7(11.5) | 5 (1.3) | 2.0(290.1) |
| 4000(1814) | 23.9(7.3) | 20 (5.3) | 5.0(725.2) |
| 6000(2722) | 10.8(3.3) | 40 (10.5) | 8.0(1160.3) |
| 8000(3629) | 3.2(1.0) | 60 (15.8) | 12.0(1740.4) |
