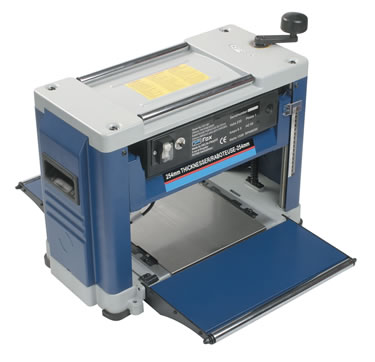

Fox F22 561 Portable Thicknesser - 10" (240 VOLT ONLY)

  • The Fox F22-561 10" portable thicknesser is an excellent answer to the needs of a busy joiner - both in the workshop and on site.
  • An energetic 1,500 Watt (2hp) motor, powering both in and outfeed rollers and a two blade cutterblock
  • Planing capacity of 254mm x 153mm
  • Feed rate of 8 metres per minute
  • Block speed of 8,000rpm
  • Maximum plane depth per pass of 2.5mm
  • Planing height adjustment via a conventionally placed top handle, which raises and lowers the low friction stainless steel planing bed on four steel columns
  • Scale provides readings in both metric and imperial
  • The pivoting in and outfeed tables are enhanced with a precision roller, aiding the entry and exit of the timber workpiece
  • Two rollers also feature integrally in the top planer housing to simplify timber handling when making multiple passes
  • Two resharpenable HSS knives are supplied as standard
  • Portability has been addressed with a machine weight of 32kg and two recessed handles
  • Technical Specifications:
  • Motor ... 1,500 watts (2hp) 240 Volt
  • Block Speed ... 8,000rpm
  • Max Planing Width ... 254mm
  • Max Planing Height ... 153mm
  • Max Planing Capacity per Pass ... 2.5mm
  • Planer Dimension ... 615mm x 355mm x 465mm
  • Dust Port Diameter ... 50mm
  • Weight ... 32kg
  • SPARE BLADES ARE HERE
