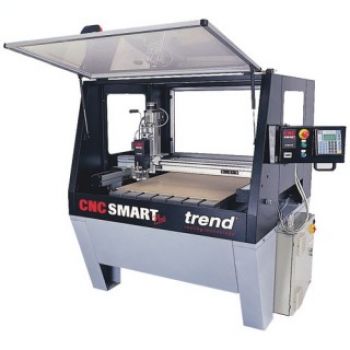

CNC Smart Machine (CNC/SMARTPLUS) 860x920 machine with 90mm of plunge fitted with high frequency head

The CNC Smart Plus is a high performance floor mounted machine for improved routing productivity. CNC Smart Plus comes with a high frequency head and a maximum feed speed of 3 metres a minute. Solid construction with enclosed steel cabinet and floor stand meeting the requirements of EN 848 Part 3. CNC Smart Plus machine has stepper motors and lead screws. Onboard Goya console enables the machine to be controlled without being connected to a computer. Single phase power supply required. 3-axis control giving continuous movement. Machine uses industrial standard drivers suitable for the maximum feed speeds required. Supplied with Bach control software as standard. The price shown is the base price of the machine. Please contact your local CNC Dealer for a complete package to suit your requirements.

 Dimensions:
Width=1854 mm
Depth=1530 mm
Height door shut=1750 mm
Height door open=2075 mm

Max.movement X-axis=860 mm
Max.movement Y-axis=920 mm
Max.movement Z-axis=90 mm

Max. cut feed rate X-axis=3-50 mm/s
Max. cut feed rate Y-axis=3-50 mm/s
Max. cut feed rate Z-axis=3-50 mm/s
Max. non cut feed rate=50 mm/sec

Positional accuracy=<0.1 mm
Power supply=220-230v
Maximum wattage=2000W
Maximum noise=80dB
Weight=350kg
Min. size doorway=1790x760 mm (For installation purposes)
Spindle speed=3000-18000

Maximum width of the workpiece=1070 mm

Distance from the centre of the head to the left internal wall=105/965 mm

Height of the table from the floor=815 mm

Length of the table=1000 mm

Movement of the motor support bracket on the Z-axis=170/245 mm

Distance from the centre of the head and the front of the table= -30/+890 mm

Distance between the centre of the head and the Z-axis=105 mm

Distance between the motor support and table=114/278 mm

Distance between X-axis and table=225 mm

End of life=See below for Environmental Policy link
