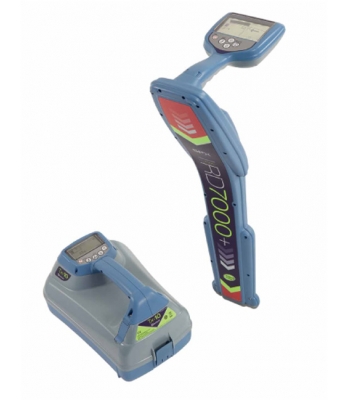

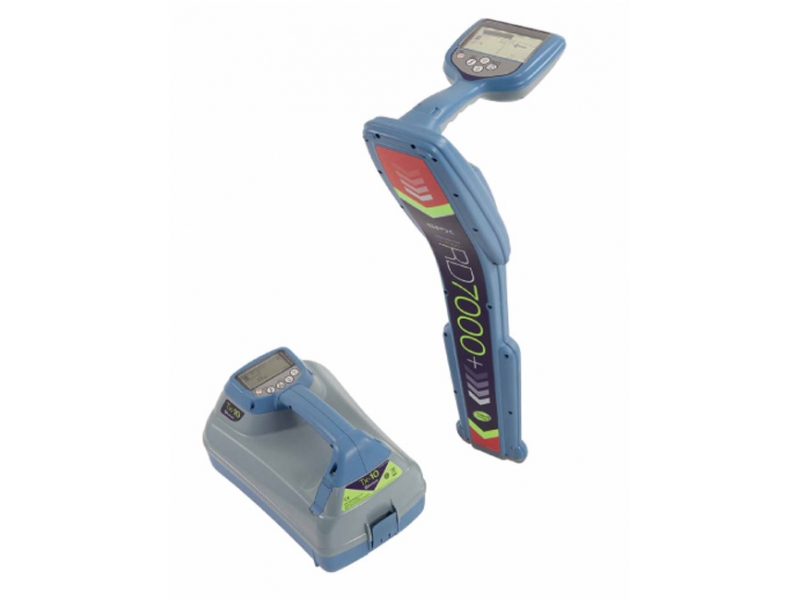

SPX Radiodetection PL Type RD7000+ Cable Locator

(PLEASE NOTE GENNY NOT INCLUDED - LOCATOR ONLY)

Locating specific pipes and cables in large underground networks is becoming increasingly complex. Ground distortion effects, caused by differing soil types and proximity to other conductors, make the user’s job more difficult and time-consuming. The most important requirements for a locator under these circumstances are ease of use, accuracy and reliability. Radiodetection’s RD7000+ Utility Locator range addresses these needs with several groundbreaking features that deliver accurate, reliable and repeatable performance.

RD7000SL+
Construction Industry
A broad range of standard active frequencies and the rugged construction common to all Radiodetection locators makes the RD7000SL+ a reliable and versatile locator for the construction industry.

RD7000DL+
Water Industry

Incorporating several features specifically designed for users working in pipe location and inspection, and supported by the wide range of Radiodetection accessories, this unit is the ideal locator for the water industry.

RD7000PL+
Power Industry
Designed specifically for the power industry with tailored features and a range of compatible accessories designed for power applications, the RD7000PL+ also features fault find capability, enabling cable faults to be precisely located.

RD7000TL+
Telecom Industry
High impedance sheathed telecoms cables make location a real challenge.  With a range of locate frequencies extending up to 200 kHz and fault finding capabilities, the RD7000TL+ has been designed to address the needs of users tasked with locating and maintaining such cables.

Ergonomics

• Light weight – at only 1.9 kg, the RD7000+ range is comfortable to use for extended periods.
• IP54 protection rating – can operate in almost any environment
• High contrast backlit LCD screens on both transmitter and locator allow use in any light conditions

Centros™

• Combination of new and innovative algorithms with established software on a high- performance processor core
• Improves the accuracy and repeatability of measurements
• Delivers powerful signal filtering and analysis allowing continued operation  even in electrically noisy environments

Compass

• Visually indicates orientation of the target cable
• Allows the operator to quickly and easily follow the target line
• Maximizes depth measurement accuracy by ensuring the locator is correctly aligned with the target cable

Proportional  Left – Right Arrows

• Guides the user to the central axis of the pipe or cable with dynamic left / right arrows, enhanced with differentiating sound
• Distance from target cable indicated by length of arrow

Dynamic Overload Protection

• Extends the RD7000+’s locate capability into areas where other products fail
• Automatically filters out large and unwanted signals while ensuring accurate location of the target pipe or cable
• Particularly useful in electrically noisy environments such as power sub stations or near overhead high-voltage cables

eCAL™

• Unique to Radiodetection precision locators, eCALTM allows users to validate the original factory calibration of the RD7000+ locator
• By checking the responses of all relevant internal components, eCALTM provides the user with confidence that the locator performs as it did when it first left the factory
• eCALTM can be carried out on-site and allows the owner to print a validation certificate without the need to first return the RD7000+ to a service center

Centros™ Manager

• A Radiodetection applications suite for Microsoft® Windows® for managing both the RD7000+ locators and transmitters from a desktop or laptop computer
• Configure locator settings using Option Editor
• Validate locator calibration through eCALTM
• Remotely update product software as upgrades are released by Radiodetection

Rechargeable battery packs for Locators & Transmitters

• Available for Precision Cable & Pipe Locators and the Tx Transmitter range.
• Offer increased flexibility.
• Provide improved cost-of-ownership.
• Deliver excellent run-time and superior cold-weather performance by comparison to standard alkaline batteries.
• Can be charged from empty in just three hours from the supplied mains chargers.
• No need for operators to replace, manage and recycle alkaline battery cells, reducing the associated costs, workload and environmental burden.
• Locator rechargeable battery packs are supplied with a mains charger (90V to 240V,50/60Hz) as standard.  An automotive charger (12V to 24V DC) is also available for use on the move.
• Transmitter rechargeable packs are available in kits that include the rechargeable battery pack, a mains charger (90V to 240V, 50/60Hz) and an automotive charger (12V to 24V DC).
• Individual chargers and battery packs are also available as separate parts for both locators and transmitters.
