(Item No Longer Available - No Direct Replacement)
Quote Ref: @94043
Product ID: 95DVS12_95DVS24
Manufacturer: Warrior Winches
Price: (£357.50 ex VAT) £429.00 (inc VAT)

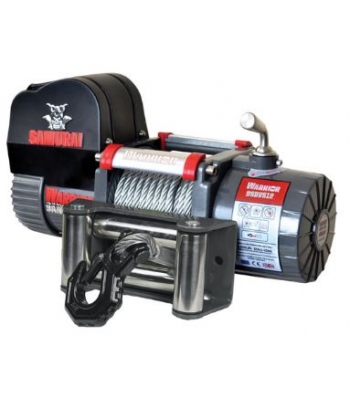

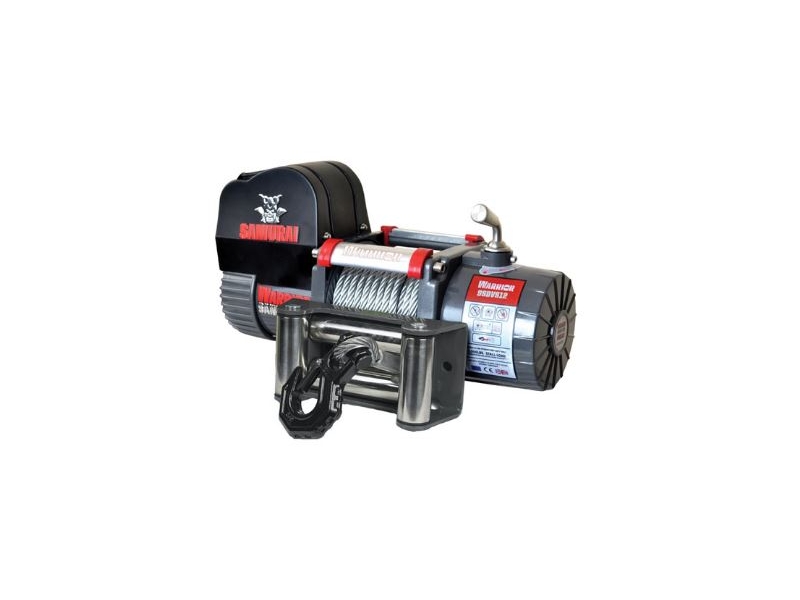

429.00 2025-06-01The narrow drum version of the best selling 9500 Samurai. A total width of 456 mm ensures this is the perfect product for limited space!
The Short Drum winch is the preferred choice of the British Military on specialist vehicles currently serving in action.
Our top performance winches just got better!
Our premium “Next Generation” Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum.
Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with stainless steel roller fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.
| Rated Line Pull | 9500 lbs (4309 kg) |
|---|---|
| Motor | 12v : 6.1hp / 4.6kw24v : 7.8hp / 5.8kw |
| Gearing | 196:1 |
| Braking Action | External Brake |
| Drum Size - Dia x L | 63 x 120mm(2.48 x 4.72 in) |
| Cable - Dia x L | 9.2mm x 15m(0.36 in x 49 ft) |
| Dimensions | 456 x 160 x 248mm(18 x 6.3 x 9.8 in) |
| Mounting Pattern | 151 x 114 mm(5.94 x 4.5 in) |
| Weight kg | 30 kg (66 lbs) |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 9500 (4309) | 9.8 (3.0) |
| 2 | 7600 (3447) | 24.6 (7.5) |
| 3 | 6200 (2812) | 42.7 (13.0 |
| 4 | 5400 (2400) | 45.9 (14.0) |
| Line Pulllbs (kgs) | Line Speed 12vft/min (m/min) | Line Speed 24vft/min (m/min) | Amp Draw12v | Amp Draw24v |
|---|---|---|---|---|
| 0 | 33.4 (10.2) | 44.3 (13.5) | 50 | 45 |
| 2000 (907) | 17.4 (5.3) | 20.3 (6.2) | 120 | 90 |
| 3000 (1360) | 15.4 (4.7) | 17.3 (5.3) | 150 | 105 |
| 6000 (2721) | 10.1 (3.1) | 12.4 (3.8) | 260 | 190 |
| 8000 (3628) | 8.2 (2.5) | 9.5 (2.9) | 300 | 230 |
| 9500 (4309) | 7.2 (2.2) | 8.5 (2.6) | 320 | 250 |
Old Codes: 95SDS12/95SDS24
Brand: Warrior Winches
Identifier: 95DVS12 95DVS24
